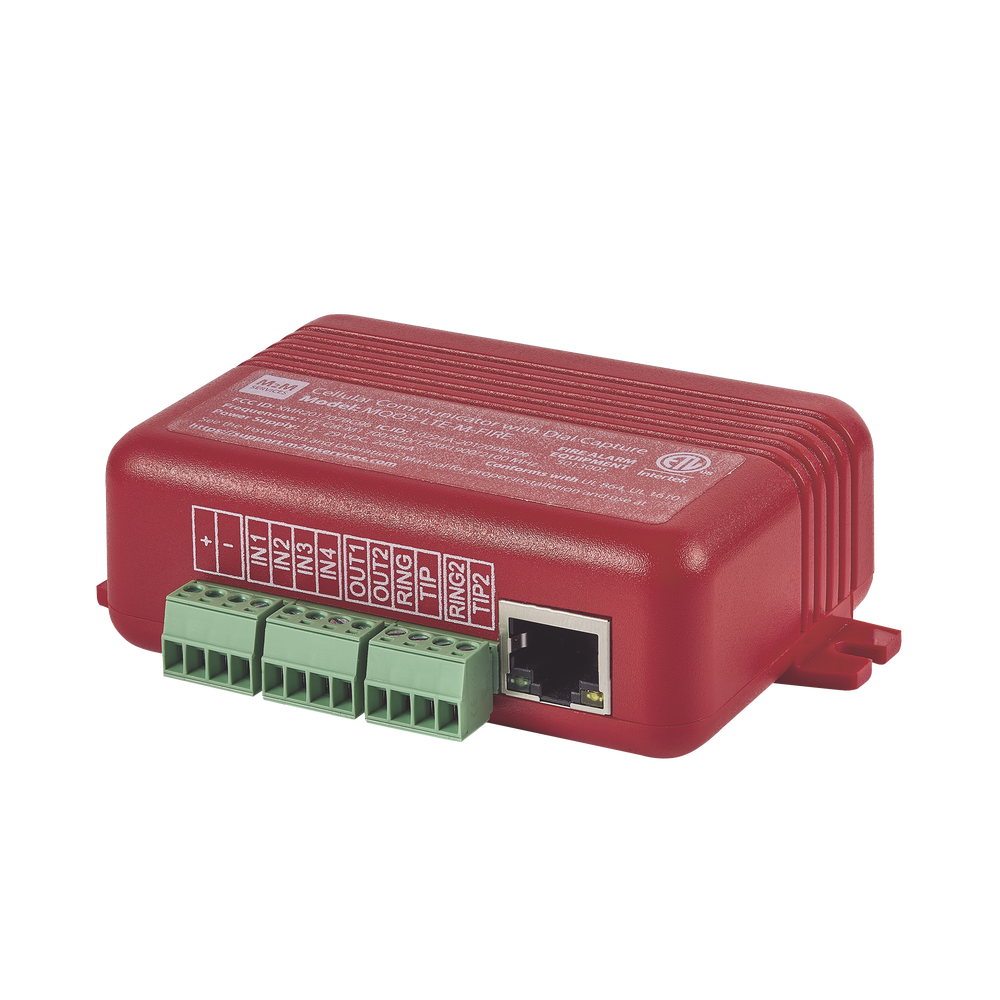

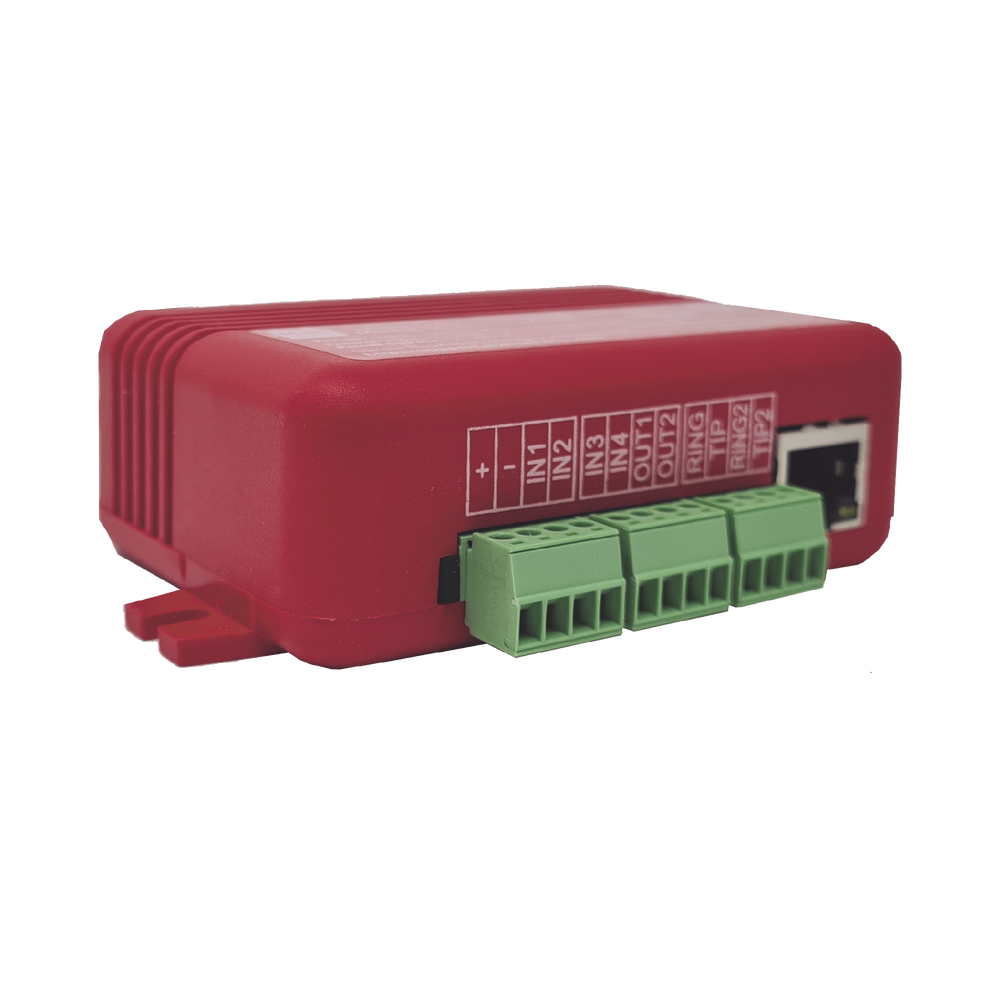

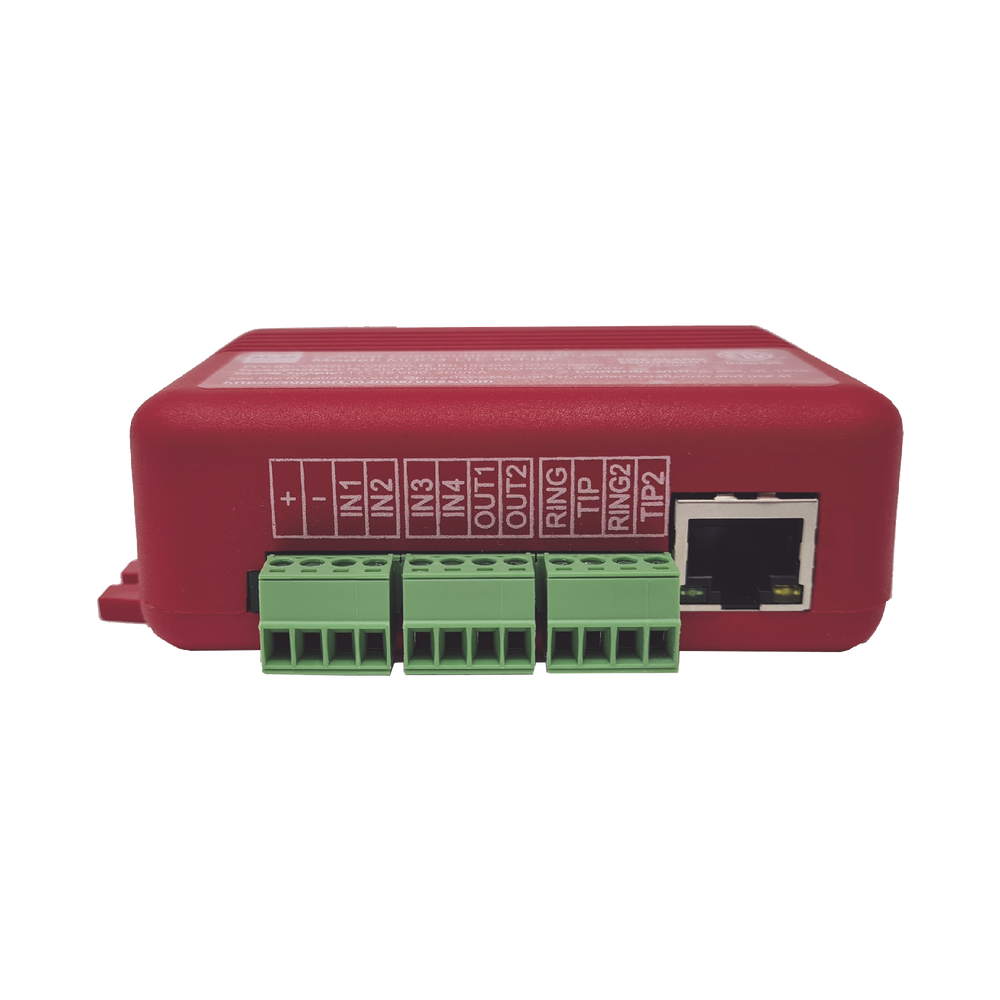

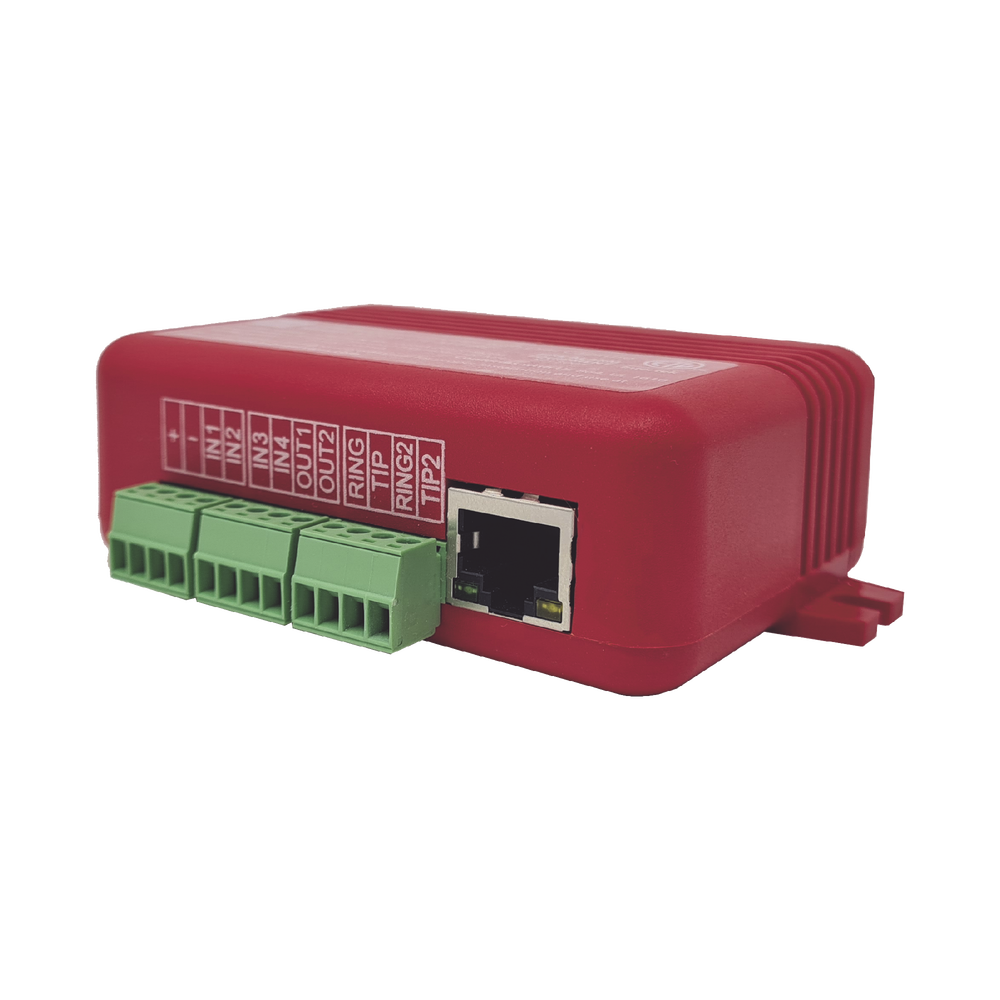

Universal Dual IP/4G Communicator for Fire Panels (Pathway) / UL Listed / Compatible with CLSS Platform / Universal Communicator for Fire Panels

• Dual Ethernet and Cellular Communicator
• Compatible with Contact ID protocol
• Compatible with any fire panel that has telephone line communication
• Adjustable fault reporting time
• The CLSS site administrator
• Web-based application for configurations and administration
• Remote firmware updates
• Supports alarms, events and email notifications
• You can use a single path (cellular only) or a dual path (both cellular and LAN)
• Four optional inputs for monitoring the dry contact relays of the fire alarm panel
• Requires annual ENHANCED-MONITORING service
• Requires annual service COMPLIANCE-MANAGER-SMALL (less than 100 devices) or COMPLIANCE-MANAGER-LARGE (more than 100 devices)

• Nominal voltage: 12 to 29 VDC.
• Current: 60 mA (idle), 200 mA (max.)
• Frequency: LTE CAT-M1 700/850/1700/1900/2100 MHz
• Dimensions: 6.3 x 9 x 3.2 cm
• Weight: 72.5 grams without antenna
• Operating temperature: 0°C to 49°C (32°F to 120°F)
• Relative humidity: 1% to 85% | Non-condensing

The communicator can operate in one of the following modes:

• Dialer Capture Mode: Obtains Contact ID data from the dashboard dialer interface.

With panel: Connects to the ports on the phone.

• Dry contact relay monitoring mode: Monitors the dry contact relay outputs.

With the panel: Connects to the dry contact relay terminals.

Agency Listings and Approvals:

UL

ETL No. 5013005, meets the following UL standards:

• UL864 – Control units and accessories for fire alarm systems

FCC Statements (USA)
