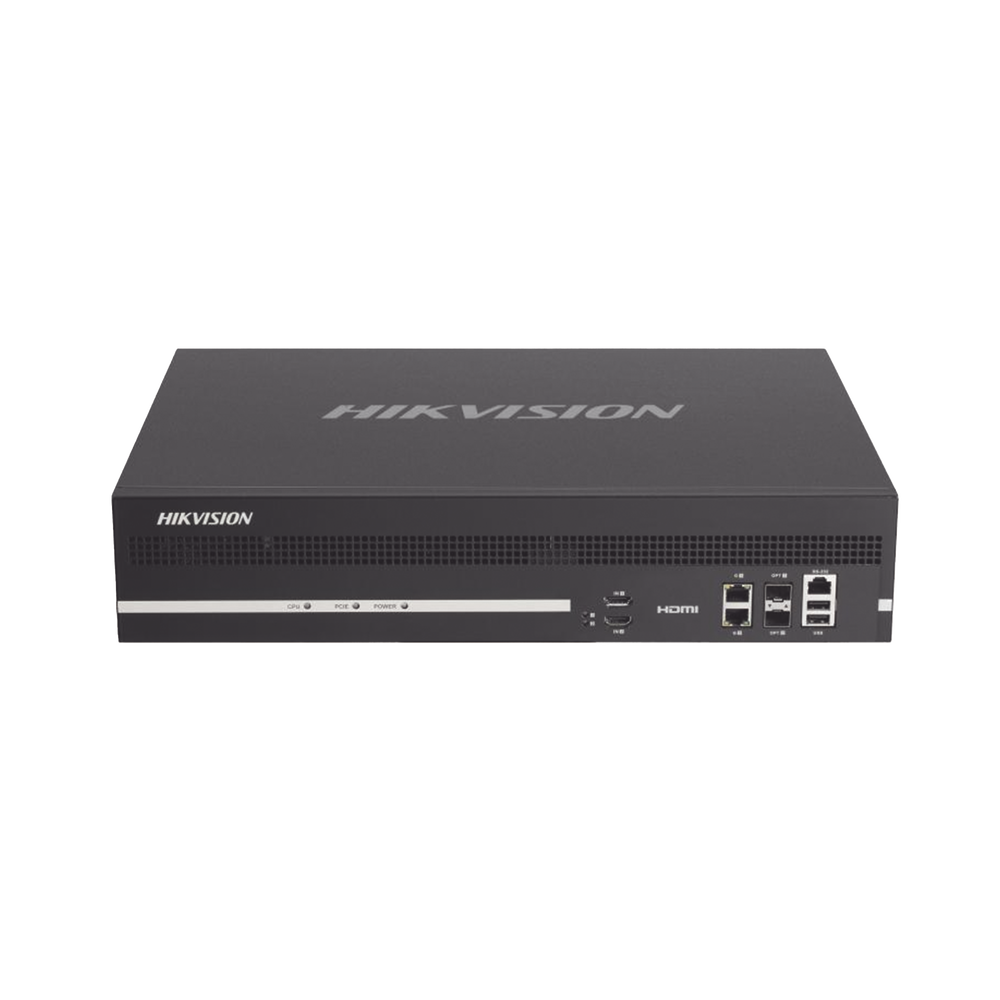

VIDEO DECODER UP TO 160 CH / 10 HDMI OUTPUTS

• Video compression: H.265 / H.264 / MJPEG.
• 4K video output.
• Supports remote video decoding.
• Supports two-way audio (3.5mm audio input/output).
• 8 alarm inputs and 8 outputs.

• Power supply: 110 - 220 VAC, 110 W.
• Operating temperature: -10 to 55 °C.
• Humidity: 10% to 90%
• Dimensions: 440 x 88 x 321 mm.
• Weight: 6.4 kgs.
• Warranty: 3 years.

• 2 RJ45 ports 10/100/1000 Mbps (local network management).
• 2 Fiber Optic Ports 100 base-FX/1000 base-X
• 1 RS-232 (RJ45) serial port.
• 1 RS-485 port

Video inputs and outputs:

• 10 HDMI video outputs
• 2 HDMI video inputs

• Hik-Central software licenses need to be quoted:
  - HIKCENTRALPVSS/BASE (Video Base License)
  - HIKCENTRALPSMARTWALL/MODULE (license to add video wall module)
• A workstation is required to manage the software and configure the video wall.
