Managed AV Switch, 8 Gigabit 802.3bt PoE Ports, 16 Gigabit 802.3at PoE Ports, 4 10G SFP Ports, Up to 450W Power

Managed AV Switch, 8 Gigabit 802.3bt PoE Ports, 16 Gigabit 802.3at PoE Ports, 4 10G SFP Ports, Up to 450W Power

Optimize your multimedia experience with Planet's professional AV switching solution.

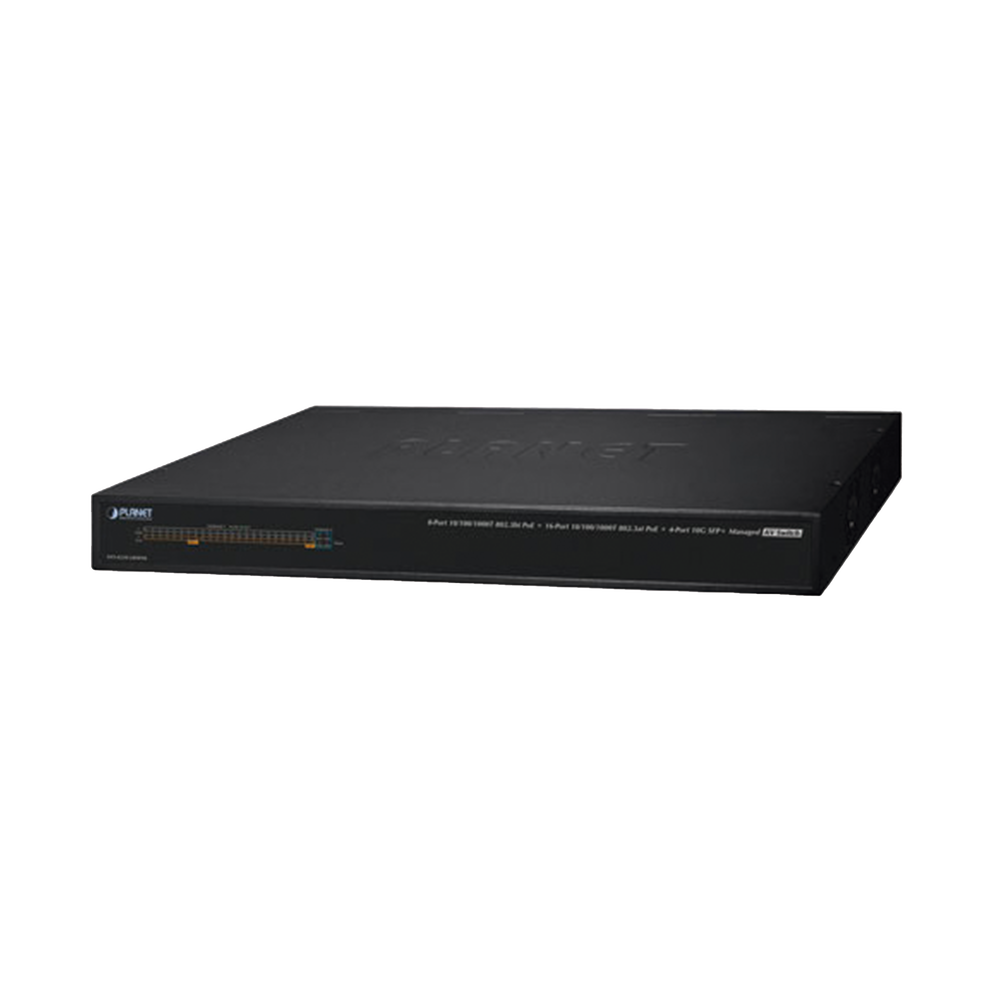

The AVS-4210-24HP4X Pro AV switcher makes it easy to converge diverse AV inputs from devices such as 4K cameras, microphones, Blu-ray players, media servers, and laptops. These inputs are then encoded, transmitted over Ethernet, and decoded to various output devices, including HDTV touchscreens, digital signage, projectors, video walls, and smart TVs.

Seamless audiovisual integration with the Dante-compatible AVS-4210-24HP4X

The AVS-4210-24HP4X, an expertly designed central hub for Dante-compatible devices, enables a unified and sophisticated audiovisual setup. Laptops, amplifiers, and microphones connect to your network with ease. This Ethernet switch not only simplifies connections but also ensures premium, studio-quality sound throughout your entire system.

Key features:

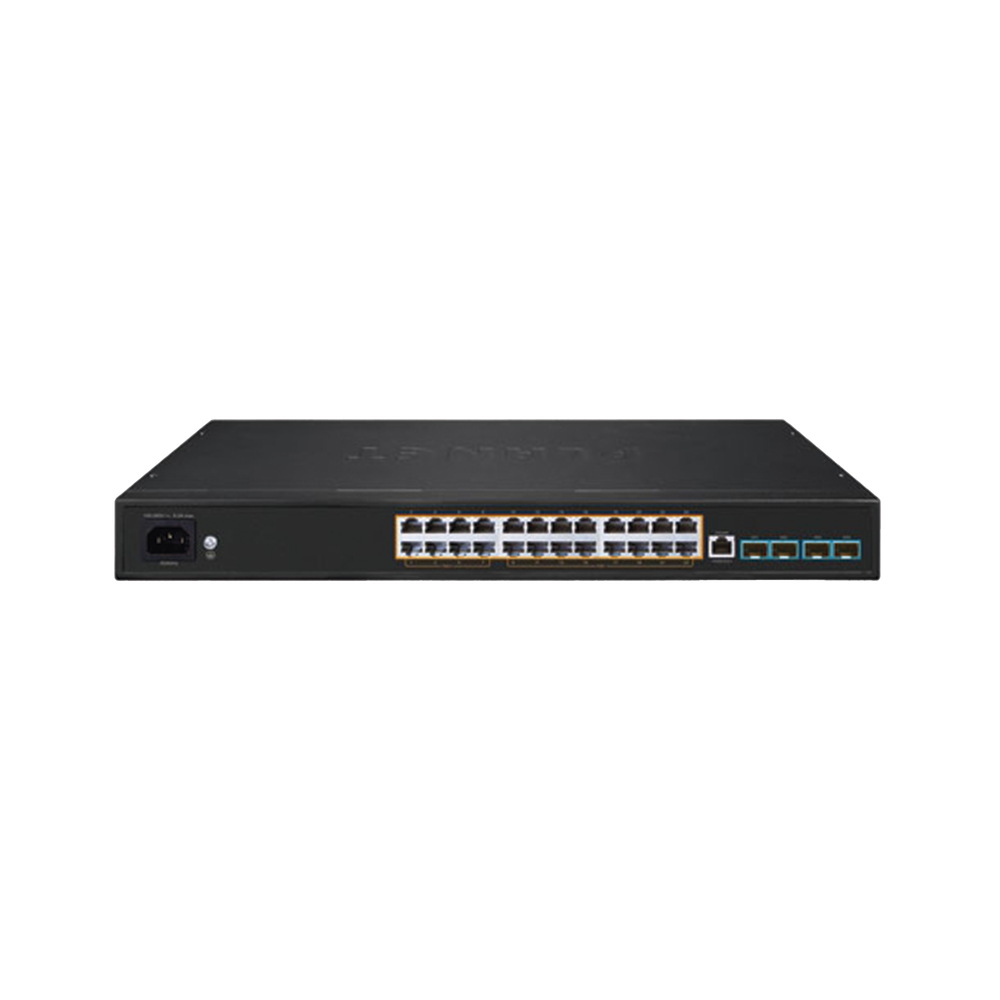

Physical port

• 8 x 10/100/1000BASE-T ports with 95W 802.3bt PoE++ injector function (Ports 1 to 8)
• 16 10/100/1000BASE-T ports with 32W 802.3at PoE+ injector function (ports 9 to 24)
• 4 x 10GBASE-SR/LR SFP+ slots , compatible with 10G/2.5GBASE-X SFP transceivers (XG1 to XG4 ports)
• RJ45 to DB9 console interface for basic switch configuration and management

Professional audiovisual design

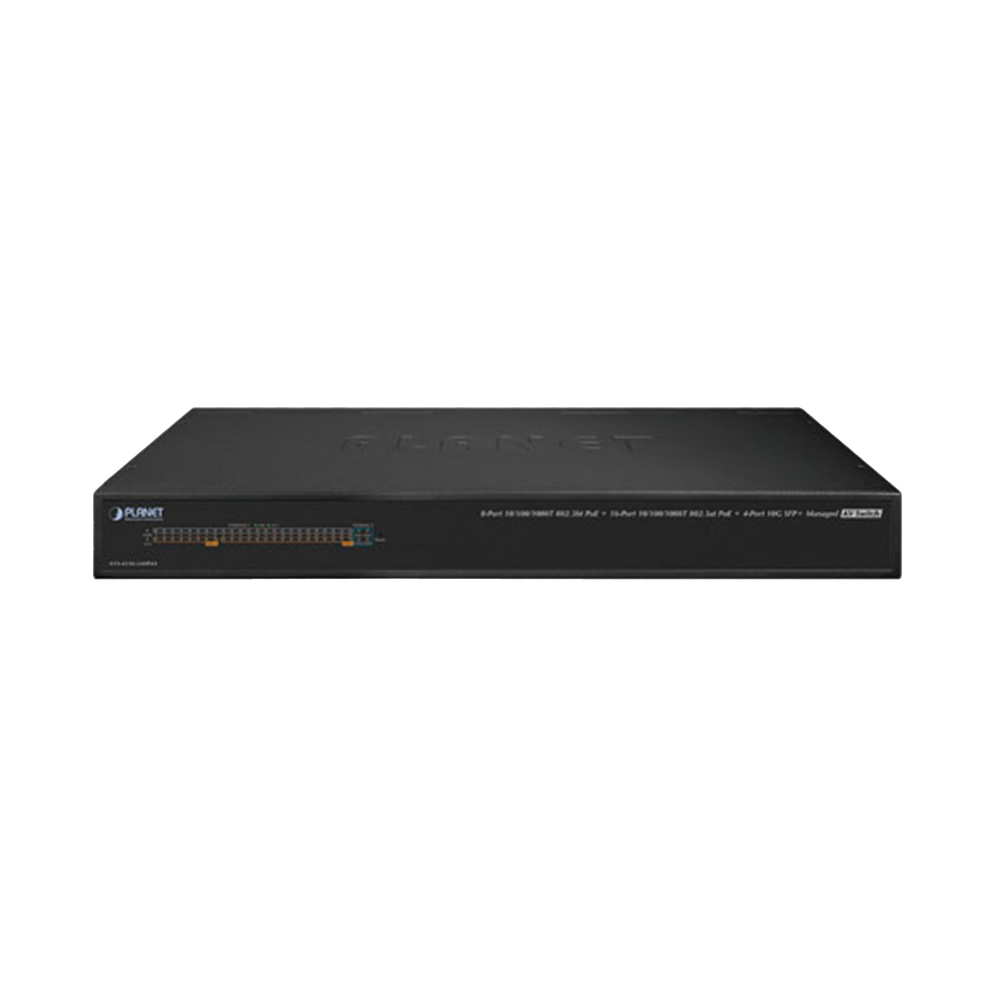

• LED indicators on the front panel and wiring on the back enhance visual appeal and facilitate installation.
• The dual UI design features a streamlined Pro AV interface and a conventional standard UI
• Pre-configured IGMP snooping enables instant multicast functionality upon power-up
• Pre-configured Dante and NDI templates simplify the setup process for immediate plug-and-play capability
• Fanless mode eliminates fan noise, ensuring undisturbed operation

Transfer

• Hardware-based 10/100Mbps (half/full duplex), 1000Mbps (full duplex), auto-negotiation and auto MDI/MDI-X
• IEEE 802.3x flow control for full duplex operation and backpressure for half duplex operation
• MAC address table size of 16K
• Giant 12K frame
• Machine learning and address aging

Some of the features listed below are only available in the standard user interface.

Power over Ethernet

• Compliant with IEEE 802.3bt Power over Ethernet Plus Plus
• 8 IEEE 802.3bt PoE++ compliant ports , each delivering up to 95 watts (ports 1-8)
• 16 IEEE 802.3at PoE+ compliant ports , each delivering up to 32 watts (ports 9-24)
• Total PoE power budget of 480 watts
• Fanless mode
• Automatic detection of powered devices (PD)
• Built-in circuit protection to prevent power interference between ports
• Remote power supply up to 100 meters
• Advanced PoE management capabilities:
• Intelligent PoE functions

Layer 2 functions

• Supports VLA
• Supports Spanning Tree Protocol
• Supports link aggregation
• Supports port mirroring (many to 1)
• Loop protection to prevent transmission loops
• Supports ERPS (Ethernet Ring Protection Switching)
• Link Layer Discovery Protocol (LLDP)

Quality of service

• Ingress and egress speed limit by port bandwidth control
• Storm Control Support
• Traffic classification
• Strict priority CoS policies and Weighted Round Robin (WRR)

Multicast

• Supports IPv4 IGMP snooping v2 and v3
• Supports IPv6 MLD snooping v1, v2
• Support for IGMP query mode
• IGMP Snooping Port Filtering
• MLD Spy Port Filtering

Security

• Authentication
• Access control list
• MAC security
• Port security for filtering source MAC address entries
• DHCP snooping to filter untrusted DHCP messages
• Dynamic ARP inspection discards ARP packets with invalid MAC address and IP address binding
• IP Source Protection prevents IP spoofing attacks
• DoS Attack Prevention

Management

Pro AV User Interface Specific Settings

• Intuitive Network Profile (VLAN) Configuration
  • Color-coded groups for easy identification
  • Preset profile templates
  • Dante, NDI, Data
  • IGMP Querier Designation

Standard user interface

• SNMP Management
• Controlling user privilege levels
• Integrated Trivial File Transfer Protocol (TFTP) client
• Static and DHCP for IP address assignment
• System maintenance
• Network Time Protocol SNTP
• Network diagnostics
• Link Layer Discovery Protocol (LLDP) and LLDP-MED
• Logging event messages to the remote syslog server
• PLANET Smart Discovery Utility for Deployment Management
• PLANET NMS and CloudViewer/CloudViewerPro for deployment management
