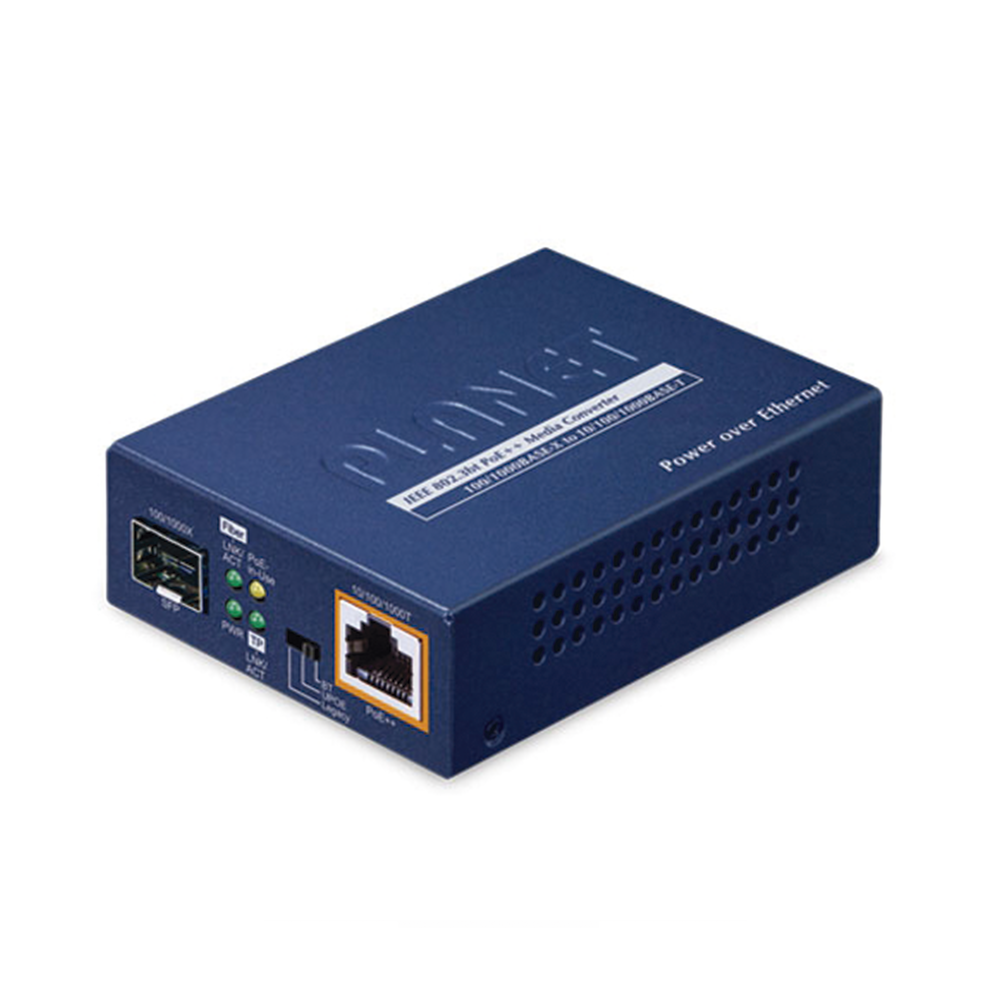

100/1000BASE-X SFP to 10/100/1000BASE-T 802.3bt PoE++ Media Converter (60 Watts)

100/1000BASE-X SFP to 10/100/1000BASE-T 802.3bt PoE++ Media Converter (60 Watts)

802.3bt PoE++ 60 Watts of power over a 4-pair UTP solution

PLANET GUP-805A-60W adopts IEEE 802.bt PoE++ standard technology, capable of generating up to 60 Watts of power using four pairs of standard Cat5e/6 Ethernet cabling to deliver full-speed power and data to each remote PoE-compliant Powered Device (PD). Its power capacity is three times that of conventional 802.3at PoE+, making it an ideal solution for power-hungry network PDs, such as:

• PoE PTZ speed dome cameras
• Network devices
• Thin clients
• AIO (All-in-One) touch PCs, point of sale (POS) and information kiosks
• Remote digital signage displays
• PoE Lighting

Key features:

Physical port

• Media conversion between 10/100/1000BASE-T and 100BASE-FX/1000BASE-SX/LX
• Copper RJ45 interface with data + power output.
• The copper port supports 10/100/1000BASE-T auto-negotiation and auto MDI/MDI-X.
• Fiber media allows
  • Multimode fiber using LC connector
  • Single-mode fiber using LC connector

Power over Ethernet

• IEEE 802.3bt Power over Ethernet plus end-span + mid-span PSE support
• Backward compatible with IEEE 802.3at Power over Ethernet plus end/mid-span PSE
• Provides 52V~55V DC power via RJ45 Ethernet cable to devices with Ethernet port
• RJ45 PoE++ port with built-in 802.3bt Type 4 PoE 60W injector function
• Automatically detects the powered device (PD)
• Circuit protection prevents power interference between ports.
• Remote power supply up to 100 m.
• Support for IEEE 802.3bt/IEEE 802.3at splitter devices

Layer 2 functions

• Store and forward mechanism
• Non-blocking full wire-speed forwarding rate
• IEEE 802.1Q Tag VLAN Transparent, Multicast Pass-Through
• giant 9K frame
• IEEE 802.3x full-duplex and half-duplex backpressure flow control to eliminate packet loss

Mechanic

• Metal case
• LED indicators for easy network diagnostics

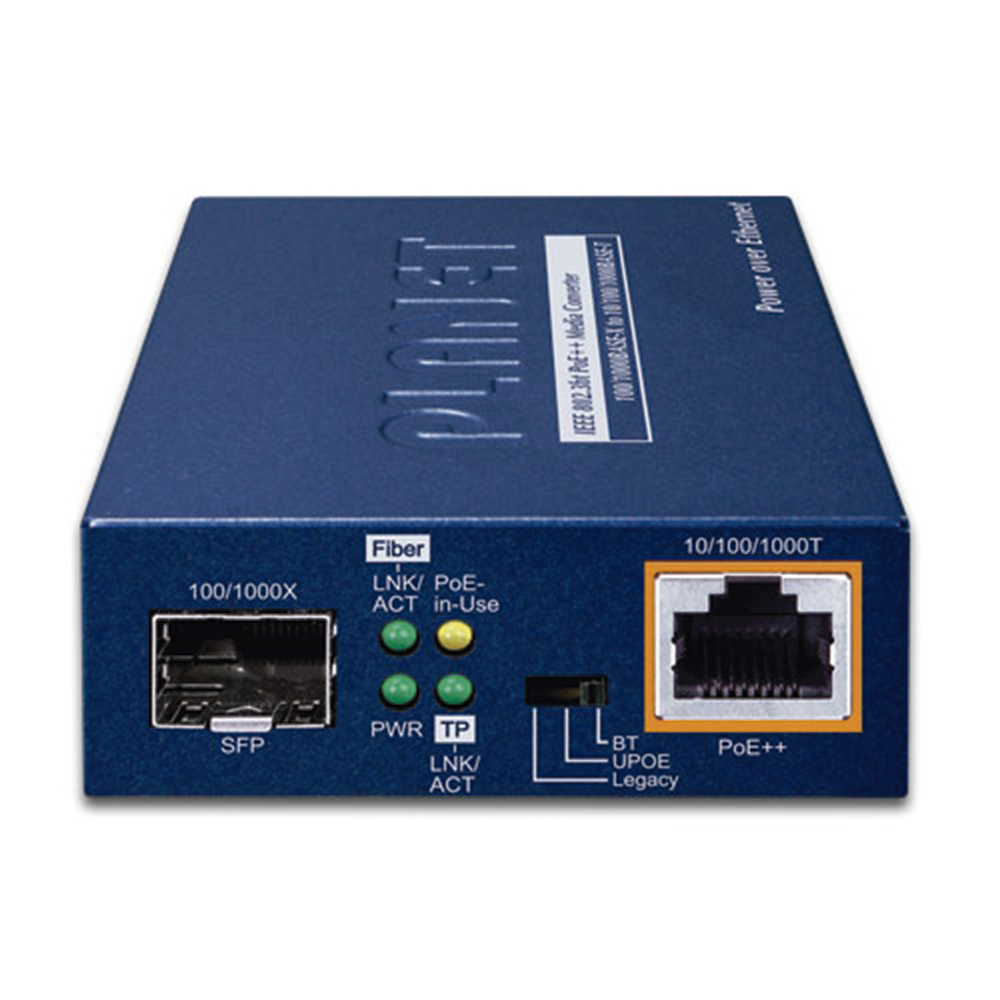

• DIP switch for selecting PoE power supply options (BT/UPOE/Legacy)

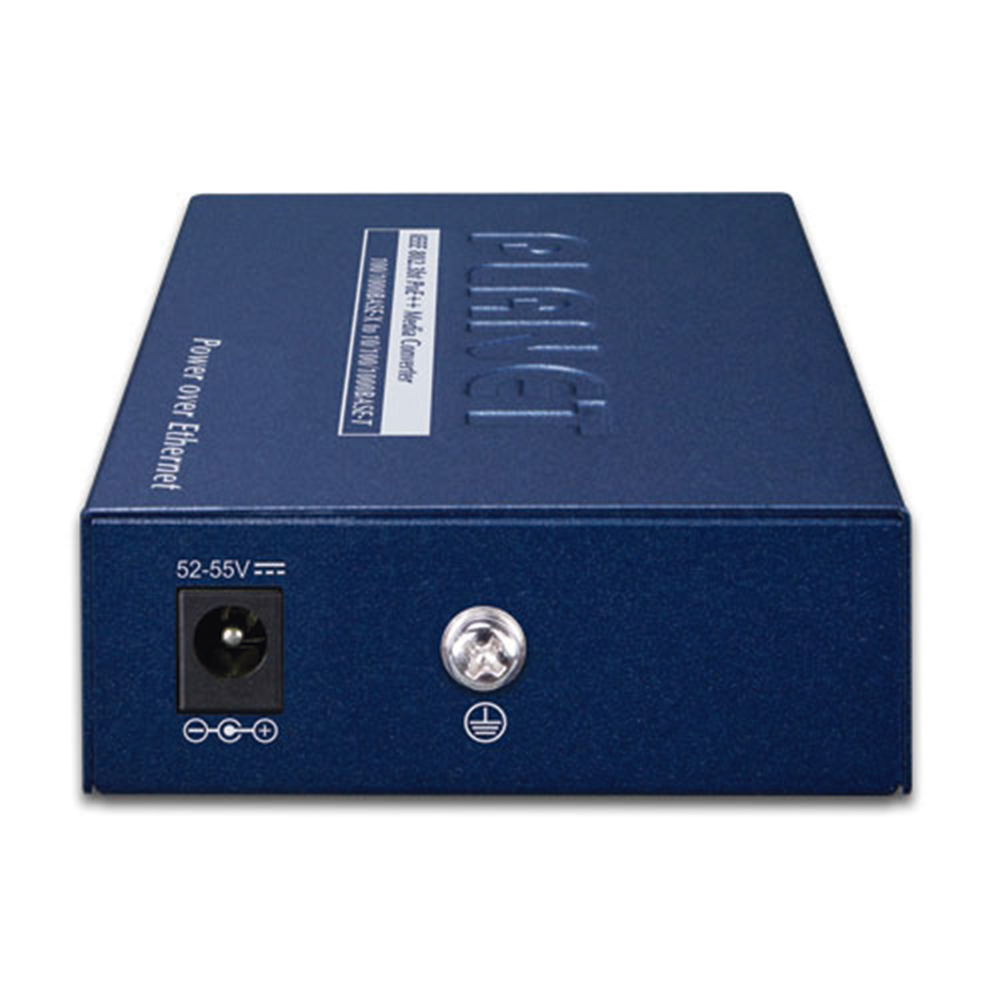

• DC 52V~55V power input socket.
• Wall mounting or DIN rail installation (optional)
• Compact size, easy installation
