Layer 3 Managed Switch, 8 x 2.5G BASE-T Ports, 2 x 10G BASE-T Ports, 2 x 10G SFP Ports

Layer 3 Managed Switch, 8 x 2.5G BASE-T Ports, 2 x 10G BASE-T Ports, 2 x 10G SFP Ports

Perfectly managed multi-gigabit Ethernet switch with security and L3/L2 switching

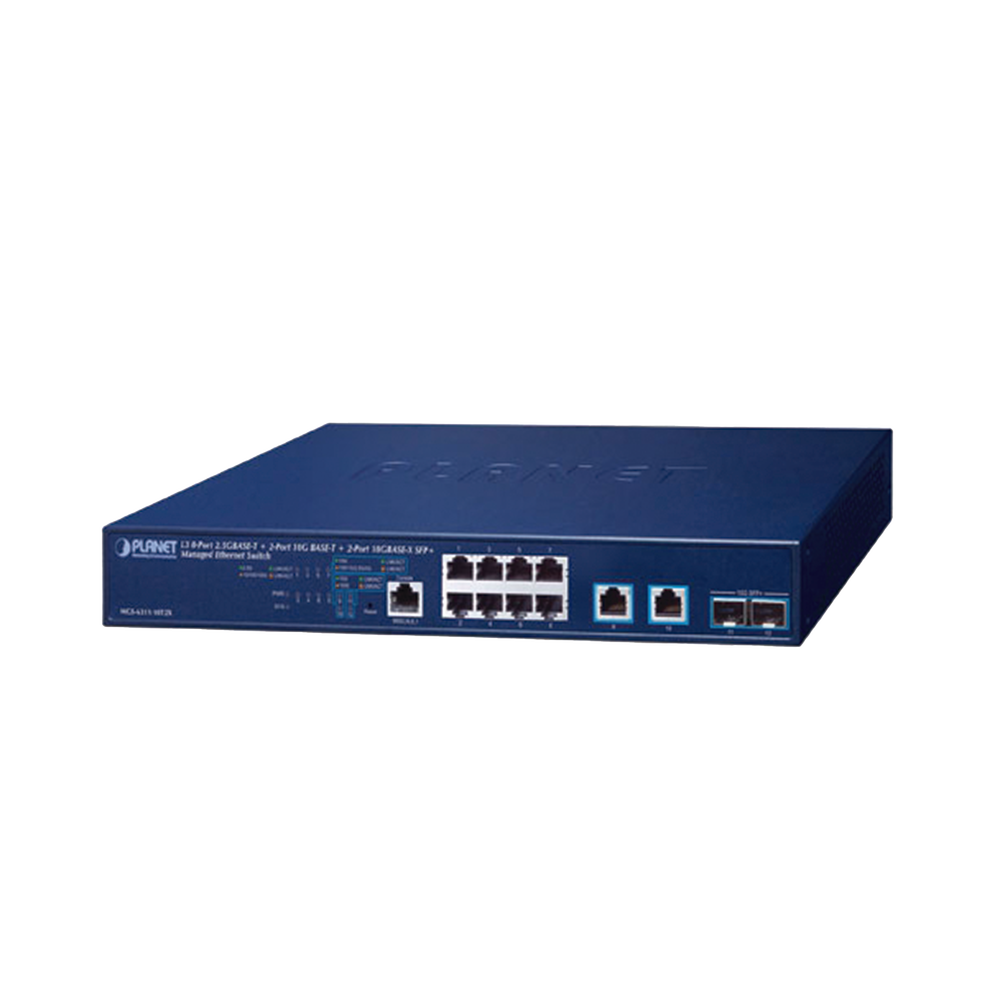

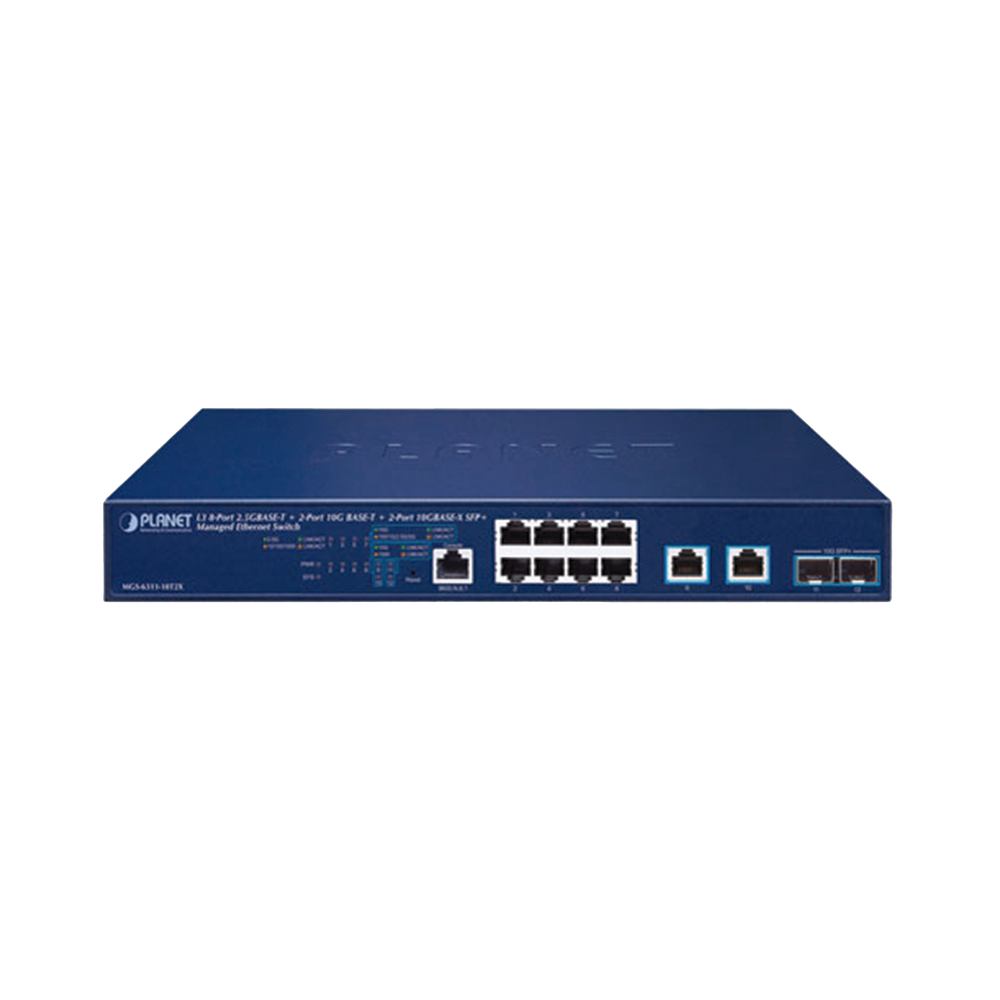

MGS-6311-10T2X is a Layer 3 managed multi-gigabit switch that provides 2.5Gbps data over UTP cables, designed for the demand of high-bandwidth required network equipment such as Wi-Fi 6 802.11ax wireless AP, NAS, and workstation, and those with 2.5GBASE-T interfaces. It features 8 x 10/100/1000/2500BASE-T copper ports, 2 x 100/1G/2.5G/5G/10GBASE-T copper ports, and an additional 2 x 1G/10GBASE-X SFP+ fiber ports that are flexibly designed to extend the connection distance.

2.5 Gbps capacity for diversified bandwidth applications 2.5 Gbps capacity for diversified bandwidth applications

Dual 10GBASE-T and 10GBASE-X SFP media interfaces for network extension

PLANET MGS-6311-10T2X has the capability to achieve high speed of 10Gbps over copper or fiber optic cabling, which helps to accelerate the performance of large data transmission. The built-in 10GBASE-T copper interfaces support 5-speed (10G/5G/2.5G/1G/100) auto-negotiation and 10Gbps data transmission with existing Cat6A/Cat7 UTP cabling, which means the speed can be increased without costs. . It can definitely bring you the speed you demand and its Plug and Play makes installation easier.

Key Features:

Physical ports

• 8 10/100/1000/ 2500BASE-T RJ45 copper ports (Ports 1 to 8)
• 2 x 100/1G/2.5G/5G/ 10GBASE-T RJ45 Auto-Negotiation Copper Ports (Ports 9 to 10)
• 2 lots 10GBASE-SR/LR SFP+ , compatible with 1000BASE-SX/LX/BX SFP (ports 11 to 12)
• RJ45 to DB9 console interface for basic switch configuration and management

IP Routing Functions

• The IP routing protocol supports RIPv1/v2, OSPFv2
• The routing interface provides VLAN routing mode.
• Supports route redistribution

Layer 2 functions

• Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3bz, IEEE 802.3an Gigabit Ethernet
• Prevents packet loss flow control.
• High-performance store-and-forward architecture, broadcast storm control, port loopback detection
• 16K MAC address table, automatic source address learning and aging
• Supports VLAN
• Supports link aggregation
• Supports Spanning Tree Protocol
• Port mirroring to monitor incoming or outgoing traffic on a particular port (many-to-many)
• Provides port mirroring (many to 1)
• Supports G.8032 ERPS (Ethernet Ring Protection Switching)

Quality of service

• 8 priority queues on all switch ports
• Support for strict priority CoS policies and WRR (Weighted Round Robin)
• Traffic classification
• Strict priority policies and WRR CoS

Multicast

• Supports IPv4 IGMP snooping v1, v2 and v3
• Supports IPv6 MLD v1 and v2 snooping
• Interrogator mode support
• Supports Multicast VLAN Registration (MVR)

Security

• IEEE 802.1x port-based network access authentication
• MAC-based network access authentication
• Integrated RADIUS client to cooperate with RADIUS servers for IPv4 and IPv6
• TACACS+ login users access authentication
• IP-based Access Control List (ACL)
• MAC-based access control list
• Supports DHCP snooping
• Supports ARP inspection
• IP Source Guard prevents IP spoofing attacks
• Dynamic ARP inspection discards ARP packets with invalid MAC address and IP address binding

Management

• Management IP for IPv4 and IPv6
• Switch Management Interface
• BOOTP and DHCP for IP address assignment
• Firmware upload/download via TFTP or HTTP protocol for IPv4 and IPv6
• SNTP (Simple Network Time Protocol) for IPv4 and IPv6
• Controlling user privilege levels
• Syslog Server for IPv4 and IPv6
• Supports DDM
• Four RMON groups 1, 2, 3, 9 (history, statistics, alarms and events)
• Supports flow
• Supports ULDP
• Supports ULPP (Uplink Protection Protocol)
• Supports ULSM (Uplink State Monitor Protocol)
• Supports LLDP/LLDP MEDIUM
• Supports DHCP option 82/43/60/61/67
• Supports ping and traceroute function for IPv4 and IPv6
• PLANET Smart Discovery Utility for Deployment Management
