• Panel LED Full Color SMD Pixel Pitch 2.5mm Resolucion 256 X 192 Uso en Interior
1 3

HIKVISION

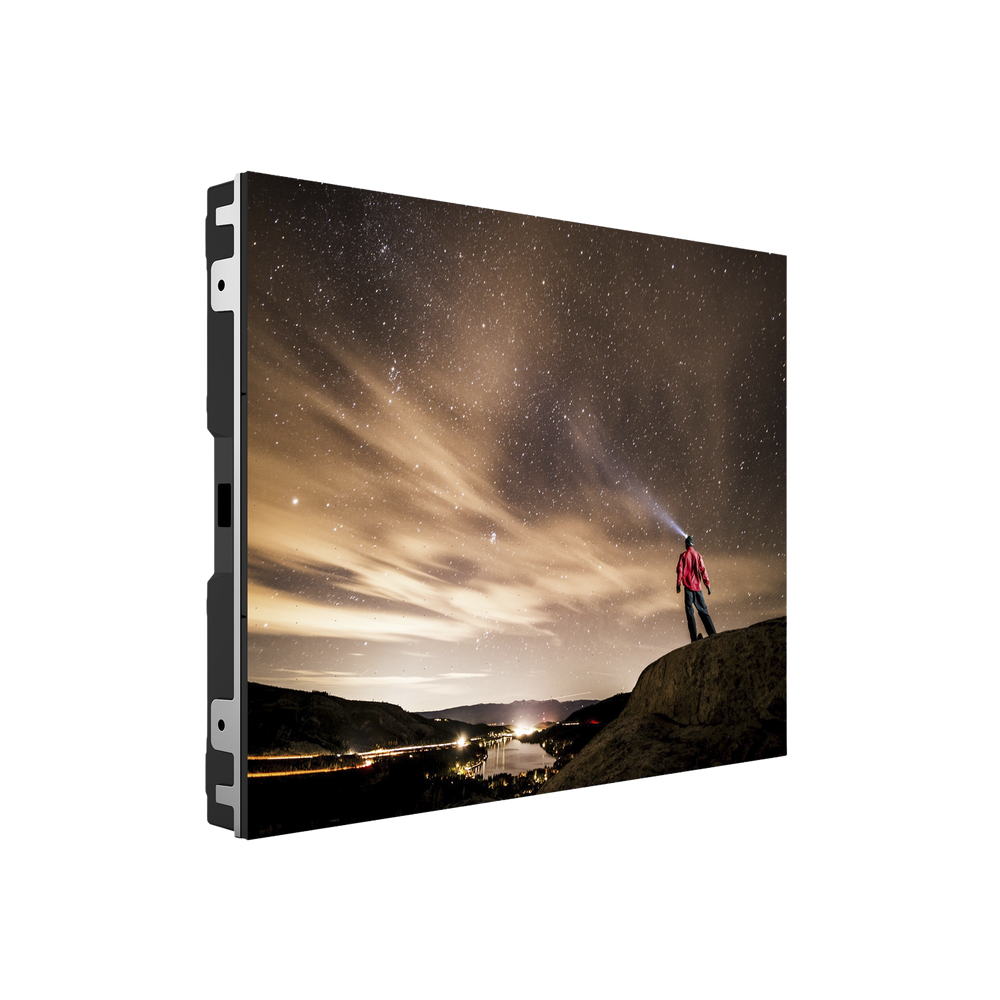

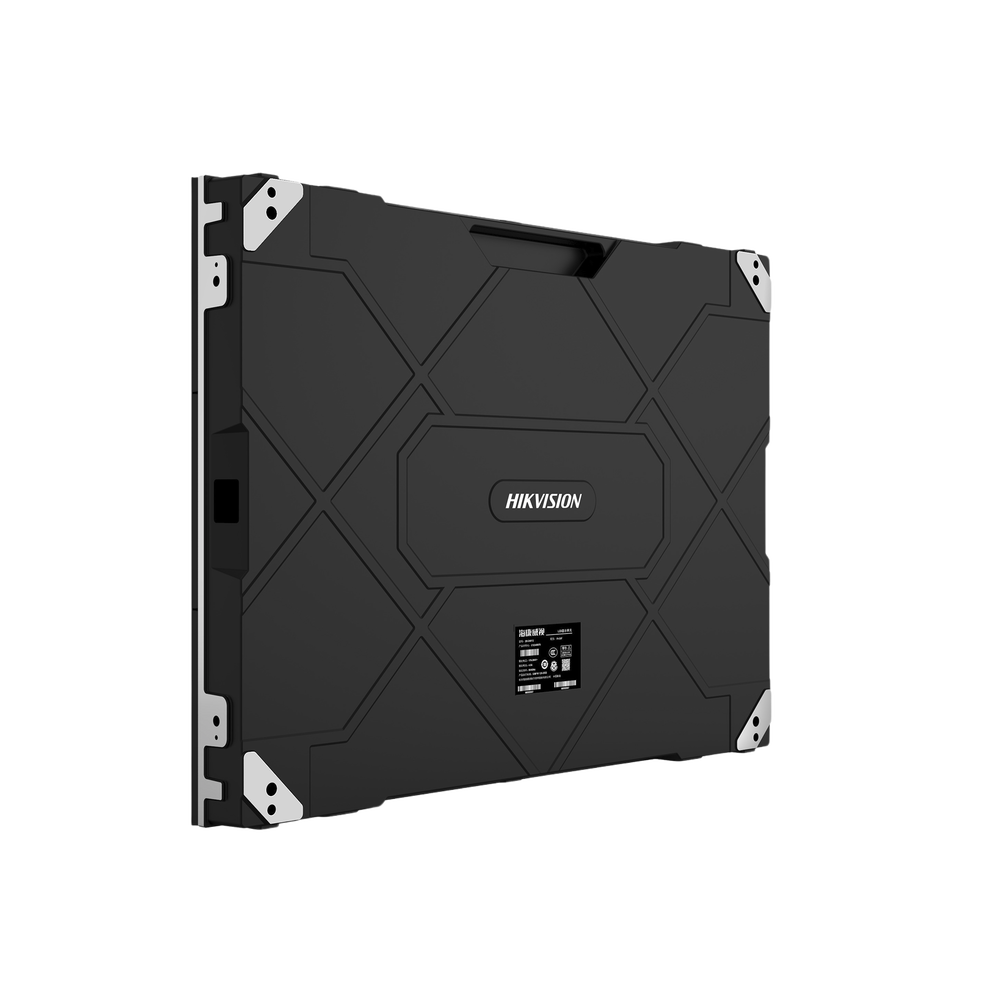

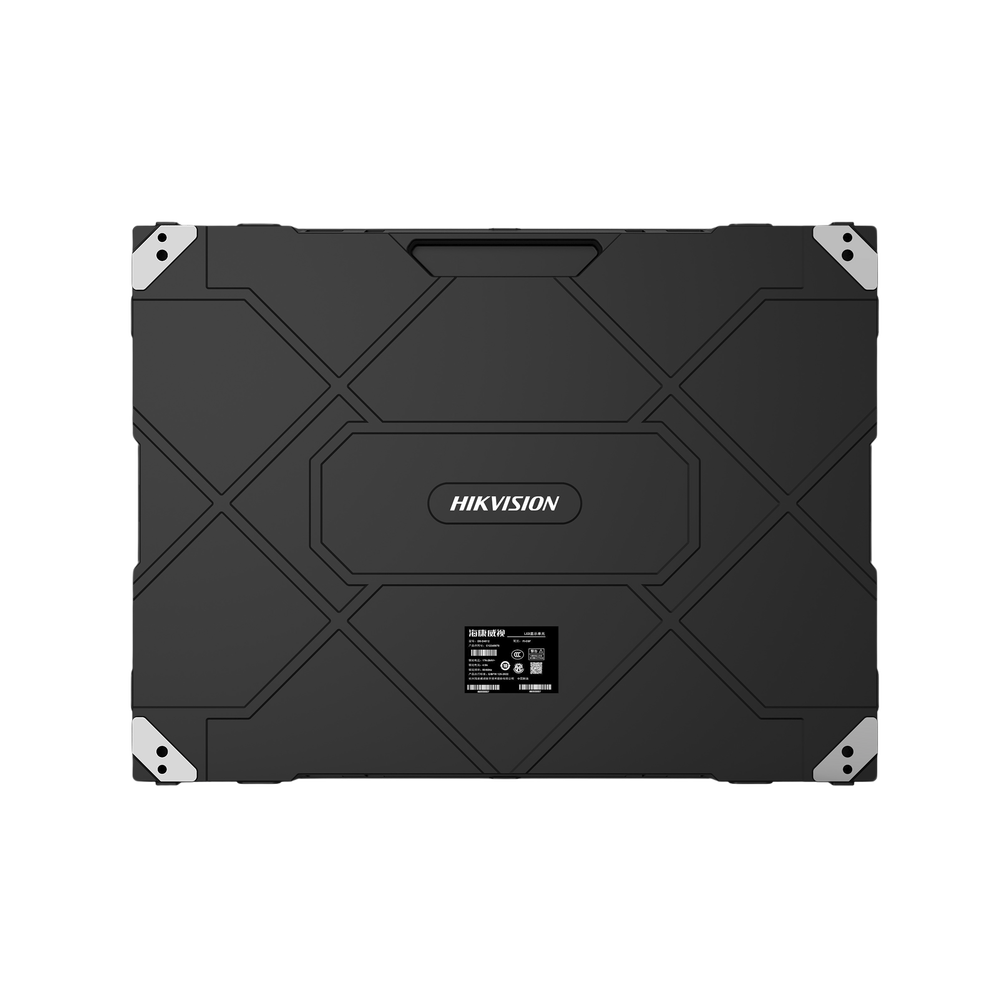

Full Color LED Panel SMD Pixel Pitch 2.5mm Resolution 256 x 192 Indoor Use

Full Color LED Panel SMD Pixel Pitch 2.5mm Resolution 256 x 192 Indoor Use

$833.845 COP
$912.018 COP $833.845 COP
Sale Sold out
Shipping calculated at checkout.

Full Color LED Panel SMD Pixel Pitch 2.5mm Resolution 256 x 192 Indoor Use

Main features:
  • Technology: SMD Triad LED.
  • Pixel Pitch: 2.5 mm.
  • Resolution: 256 x 192 pixels.
  • Number of modules: 6 (2x3).
  • Pixel density: 49,152.
  • Viewing angle: 160° (H) / 160° (V).
  • Contrast: 3000:1.
  • Brightness: 600 cd/m2.
  • Bit: 16.
  • Refresh rate: 60 Hz.
  • Work capacity: 24/7.
  • Lamp life: 100,000 hours.
  • Panel material: Plastic/Aluminum.
Physical and Electrical Characteristics:
  • Operating temperature: -10°C to 40°C.
  • Operating humidity: 10% to 80% RH.
  • Storage temperature: -20°C to 60°C.
  • Storage humidity: 10% to 80% RH.
  • Input voltage: 110 to 220V ac 50/60 Hz.
  • Maximum consumption: 450 W/m2.
  • Average consumption: 150 W/m2.
  • Dimensions: 640 mm x 480 mm x 58.6 mm.
  • Weight: 7.55 kg.
Included accessories:
  • Seamless image splicing across rows and columns.
  • Easy creation of 1920 x 1080 or 3840 x 2160 screens.
  • More vivid images.
  • Adjustable brightness.
  • Cascade connection using UTP cable.
  • LED modules, receiver card and power supply are easy to disassemble.
  • Three-axis XYZ structure for perfect adjustment.

NOTE:

1) Spare parts must be considered separately depending on the size of the video wall required; please check with the engineering team.

2) Only compatible with Hikvision controllers, Not compatible with Novastar.

    Out of stock

    MODELO: DS-D4025CS-1F

    View full details
