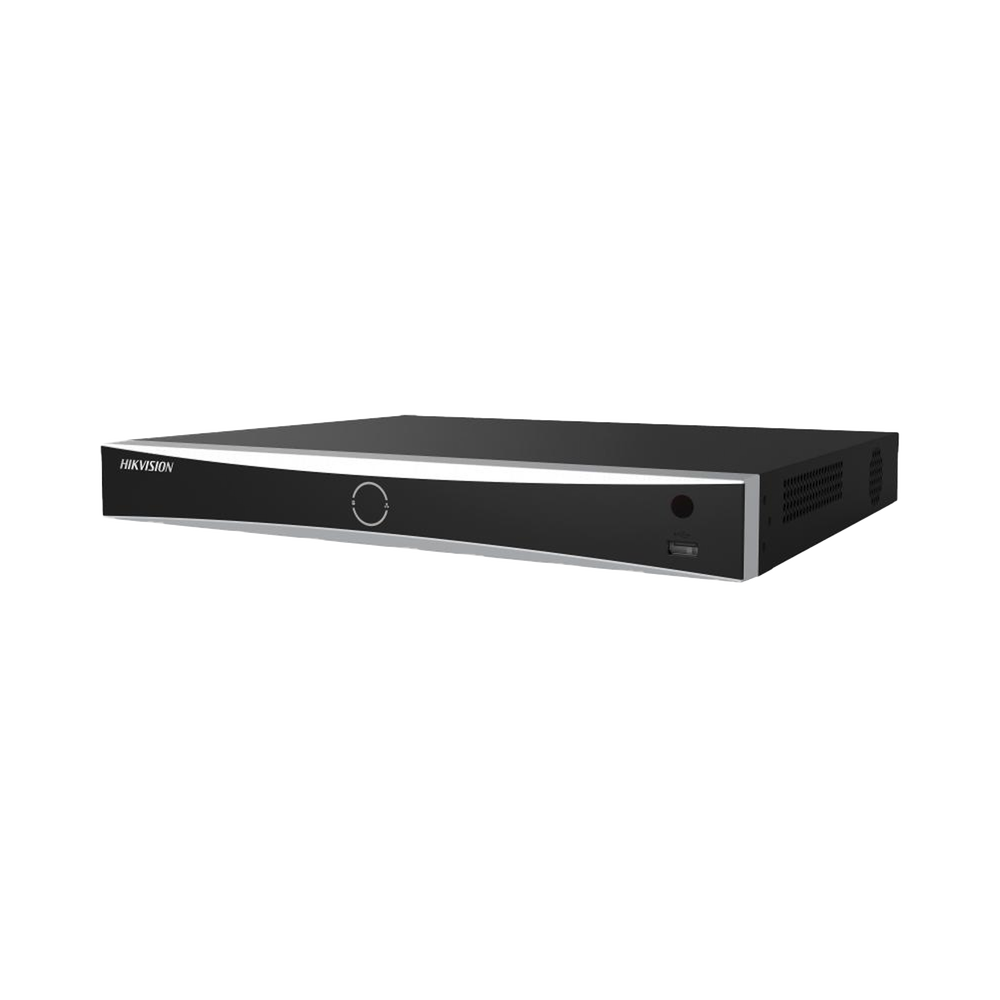

NVR 12 Megapixel (4K) / 16 IP Channels / 16 PoE+ Ports / Facial Recognition / AcuSense (Prevents False Alarms) / 2 Hard Drive Bays / 300 m PoE Switch / 4K HDMI / I/O Alarms / 300 Meters PoE Extended Mode

Main features:

• Video compression: H.265+ / H.265 / H.264+ / H.264.
• 16 Built-in 802.3 af/at PoE Ports.
• 200 watts total on its PoE+ ports.
• Supports USB mouse to operate (included).
• Supports 2 HDDs up to 10 TB. (not included).
• Supports ANR technology with HIKVISION IP camera when the network is disconnected.
• Supports DDNS (Hik-Connect, DynDNS, No-IP, etc.).
• Supports Hik-Connect (P2P) ( https://appstore.hikvision.com/ ).
• Remote access via phone: Android, iPhone, iPad (Hik-Connect).
• Support for EDGE (ietab) and Chrome browsers.
• IVMS-4200 client software (free).

Physical and Electrical Characteristics:

• Dimensions: 385 x 315 x 52mm.
• Feeding: 100 to 240 Vac / 15 W.
• Operating temperature: -10°C to 55°C.
• Weight: 3 Kg without HDD.
• Warranty: 2 years.
• Compatible with GABVID2R3 metal cabinet

Recording Resolution per Channel (recommended with H.265):

• 2 MP (1080P): 16 Channels - 30 IPS.
• 4 MP: 16 Channels - 30 IPS.
• 5 MP: 16 Channels - 30 IPS.
• 6 MP: 16 Channels - 30 IPS.

• 4K (8 MP): 16 Channels - 30 IPS.
• 4K (12 MP): 16 Channels - 22 IPS.
• Synchronous playback on channels: 16 Channels.

Processing capacity and network functions:

• Input throughput: 160 Mbps.
• Output throughput: 160 Mbps.
• 1 RJ-45 network port: 10 / 100 / 1000 Mbps. (LAN)

Recording and Viewing Functions:

• Multi-zone motion detection.
• Digital zoom in viewing and recording.
• Dual stream (main stream and sub stream).
• Supports fast forward, slow forward, frame by frame, etc.
• Supports SMART hard drive technology
• Supports multiple recording types, including real-time, manual recording, motion detection, motion detection and alarm, motion detection or alarm.
• Supports cyclic (overwrite) and non-cyclic recording.

Input/Output Interfaces:

• Independent HDMI and VGA output.
• HDMI Resolution: 4K/1080p/720p.
• VGA Resolution: 1080p, 720p.
• Audio Input: 1 Channel.
• Audio Output: 1 Channel.
• Alarm Input: 4.
• Alarm Output : 1 .
• Supports two-way audio (two-way audio).

Facial Recognition:

• Up to 16 bookstores with a maximum of 20,000 total faces.
• Each photograph must weigh a maximum of 4 MB.
• When the camera detects a face and matches it with the database, you can: trigger recording, notify the remote software (iVMS-4200), send an email, trigger an alarm output, etc.
• Support 1 channel video with facial recognition, we can use cameras: IDS-2CD7 / DS-2CD3XXG2 / DS-2CD3XX7G2 (which support face capture).

ACUSENSE (False Alarm Filter):

• With ACUSENSE technology we can avoid false alarms such as movement of trees, animals, etc.
• When activated, ACUSENSE technology detects only human bodies and vehicles to truly detect important events and thus eliminate false alarms.
• Supports up to 16 channels with ACUSENSE using cameras: DS-2CD2XX7G2 / DS-2CD2XX3G2 / IDS-2CD7 / DS-2CD3XXG2 / DS-2CD3XX7G2 (which support ACUSENSE).
• Supports up to 16 channels with ACUSENSE Lite technology (human and vehicle but with motion detection, no analytics) using DS-2CD1XX3G2 and DS-2CD1XX3G7G2 cameras (which support ACUSENSE Lite).

Note: Only facial recognition or ACUSENSE can be enabled (you cannot have both at the same time).
