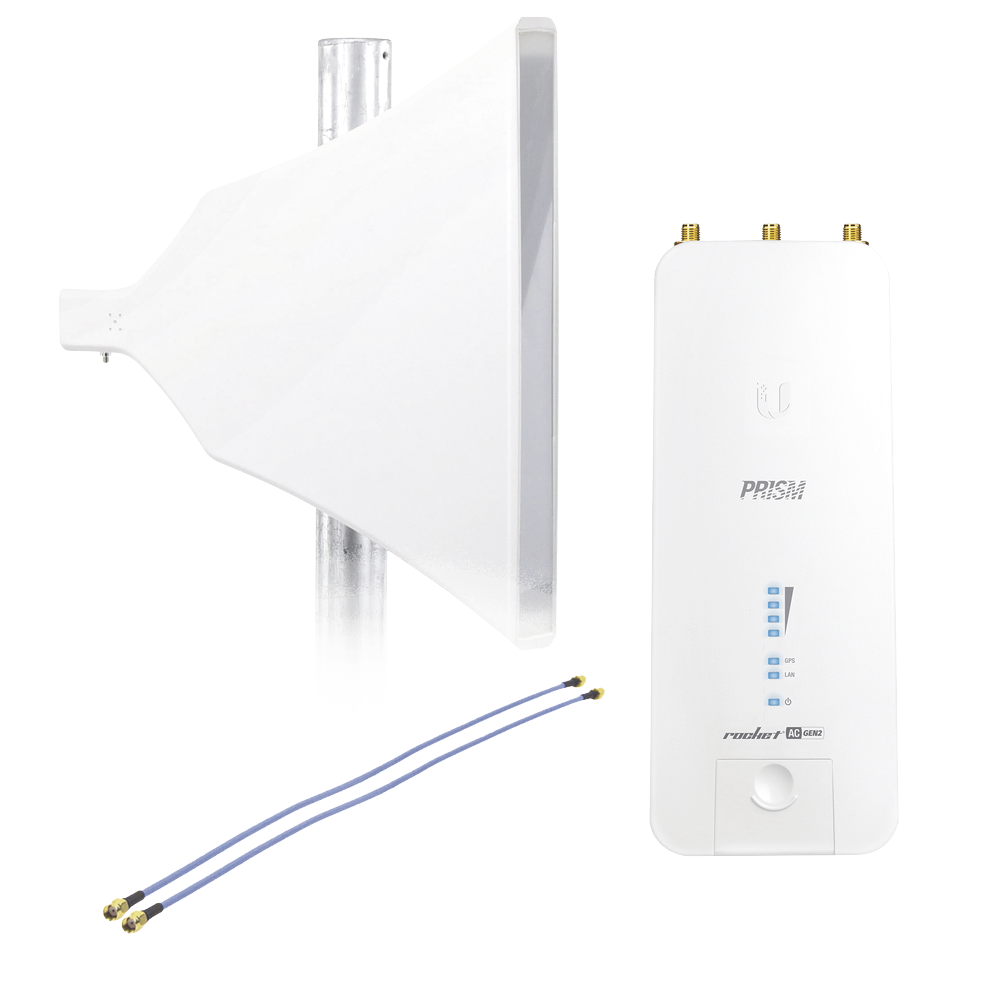

airMAX AC GEN2 Base Station Radio Kit + 90° Asymmetrical Antenna, 16 dBi, Horn Type, 4.9-6.5 GHz, includes Jumper

Ports:

1 10/100/1000 Mbps data port.

RF Connectors:

2 x RP-SMA, 1 x GPS.

Operating System:

airOS® 8.

Modes of Operation:

Access Point.

Season.

*Performance values ​​and client count may vary depending on environmental conditions and CPE client installation.

Characteristics:

Adjustable channel widths:

• PtP: 10/20/30/40/50/60/80 MHz.
• PtMP: 10/20/30/40 MHz.

2 Reverse SMA Female connectors for connecting external antennas (including ACRPSMA ).

Operating range (5150 - 5875 MHz) depends on the country.

Atheros MIPS processor.

Strong WPA2 AES security.

High performance.

Management radio at 2.4 GHz.

Improved SNR.

Improved noise immunity.

Physical and Electrical Characteristics:

Power supply: 24 VDC, 1 A. Gigabit PoE adapter.

Dimensions: 88 x 230 x 40 mm.

Weight: 400 g.

Operating Temperature: -40 to 80° C.

Includes:

Gigabit PoE Adapter 24 VDC 1 A.

Warranty:

1 Year.

Antenna Specifications

• Frequency range 4.9 to 6.5 GHz
• Gain 16.5 dBi
• VSWR < 2.0
• Double Polarization (V/H)
• Horizontal beam width 90°
• Beamwidth Vertical 90°
• Electrical beamwidth 25°
• Isolation 30 dB
• Front to back ratio 30 dB
• Maximum power per port 50 W
• Impedance 50 ohm

Mechanical Specifications

• 2 * SMA connector
• Antenna size 40*40*5cm
• Weight of 2 kg
• Antenna color: White
• Antenna material: Aluminum
• Tube or tower diameter: 30 to 80 mm
• Metal Tilt ± 25°
• Operating temperature -40°C to + 70°C (-32°F to + 158°F)

Management Wi-Fi Radio.

The Rocket® Prism AC integrates a separate Wi-Fi radio for quick and easy setup using a mobile device.

Revolutionary technology.

Ubiquiti's patented airPrism technology delivers advanced, selective radio performance, isolating signals within the operating channel to increase capacity and performance in co-location deployments.

Designed for high performance.

The Rocket® Prism AC features an EMI-shielded metal housing, GPS, airPrism circuitry, and airView® real-time spectrum analysis to deliver the best efficiency and performance.

Full band coverage in 2.4 and 5 GHz.

The Rocket® Prism 5AC offers full 5 GHz spectrum coverage with a single radio, and the 2.4 GHz band is covered by the Rocket® Prism 2AC.

Model Comparison

	M5	R5AC-Lite	RPâ€'5ACâ€'Gen2
Frequency	5 GHz	Full-Band 5 GHz	Full-Band 5 GHz
Throughput	150+ Mbps	500+ Mbps (Max. 80 MHz)	500+ Mbps (Max. 80 MHz)
Ports	(1) 10/100 Ethernet	(1) 10/100/1000 Ethernet	(1) 10/100/1000 Ethernet Port
airPrism™ Technology			"
Management Radio			"
GPS Sync			"

Operating mode: Access point and station., Compatible with airMAX M and AC subscribers., GPS Sync., High noise immunity., Up to 60 subscribers (CPE)
