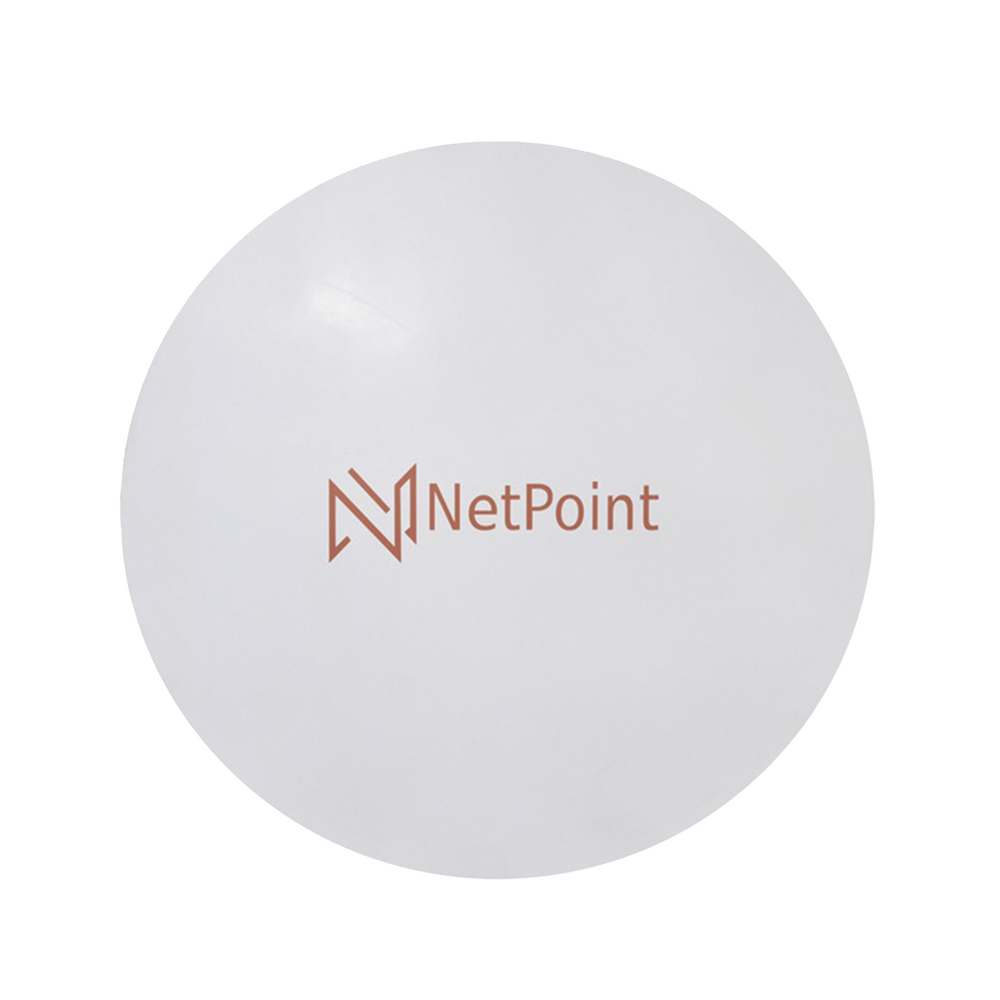

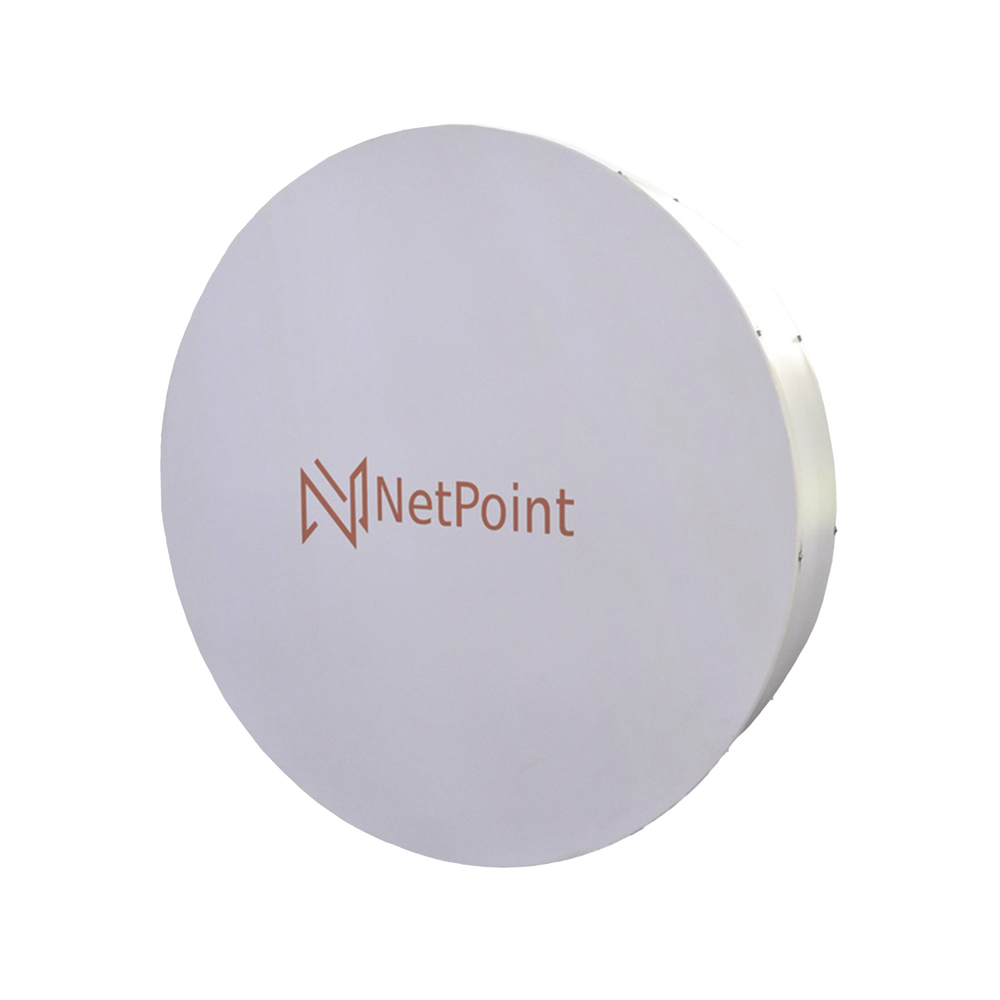

Directional Antenna / 6 ft / 5.9-7 GHz / 39 dBi Gain / 45° and 90° SLANT / Includes Jumpers with N-Male to RSMA connector / Mount and radome included.

Directional Antenna / 6 ft / 5.9-7 GHz / 39 dBi Gain / 45° and 90° SLANT / Includes Jumpers with N-Male to RSMA connector / Mount and radome included.

Electrical Specifications:
Frequency Range - 5.9 - 7.2 Ghz
Diameter (cm) 182
Directional Antenna Type
Connector Type N - Female
Gain (dBi)
-Low – 30
-Media – 31
-High – 32
VSWR: < 2
HPOL beamwidth: 3.2°
VPOL beamwidth: 3.0°
ISO: 25 dB
F/B Radio: 25 dB
Dual Polarization: 45º or 90º

The jumpers included with the antenna are compatible with the following radios: C5c, AF5XHAD, R5ACLITE, RP5ACGEN2, LTUROCKET, RP5ACGEN2, EPMP-3K, FORCE300-CSM, C050940C121A, C050910C161A, EPMP-3KL

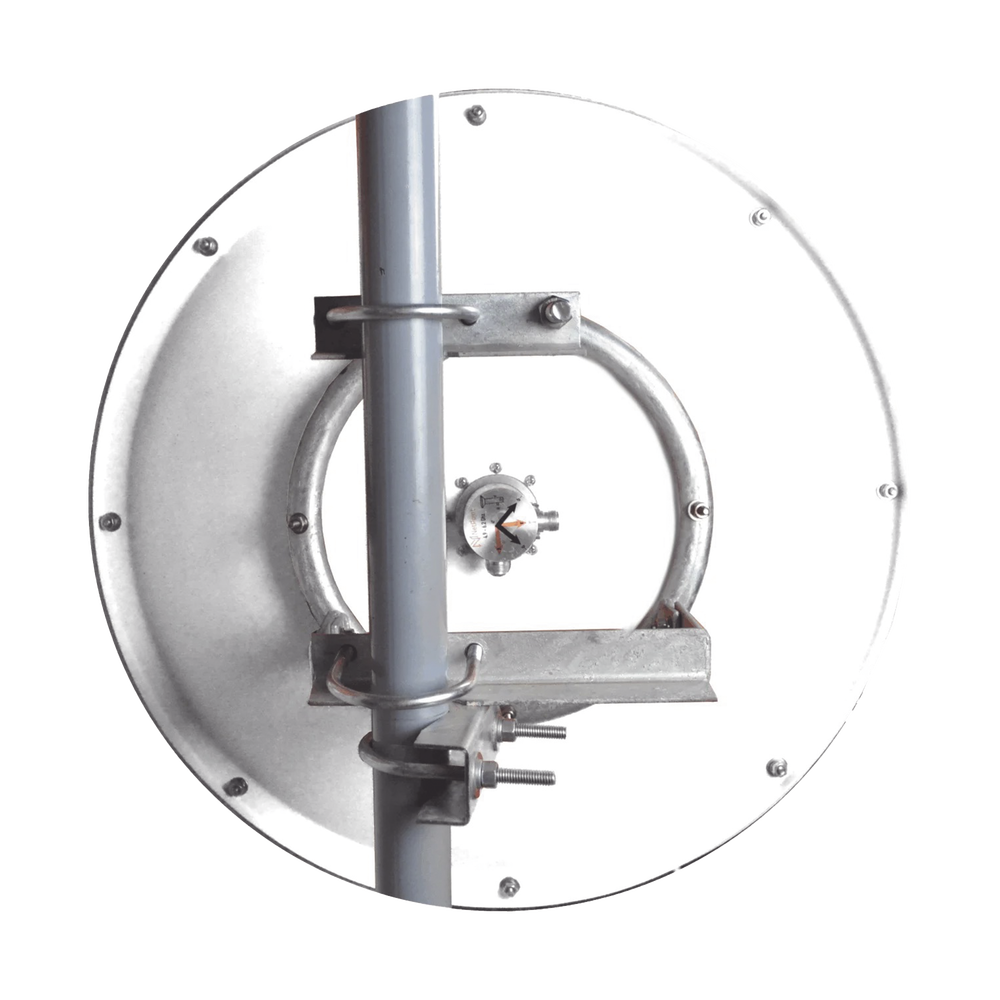

Mechanical Specifications:
Wind speed (K/h) 124.2
Azimuth adjustment: +/- 60°
Elevation adjustment: +/- 15º
Suggested neck diameter: 25.4 mm - 2.95 mm
Operating temperature: -49° to +60°
Gross Weight: 18 kg

Note: for correct installation always use vulcanized tape

Up to 39.5 dBi gain with low VSWR and high port isolation across the 5.9 - 7.2 GHz band, Reduced crosstalk with >70 dB minimum front-to-rear, N-type female connector, N to RPSMA cables included
