POWER BOARD, 1 12/24 VDC@4A OUTPUT, 115/230 VAC

POWER BOARD, 1 12/24 VDC@4A OUTPUT, 115/230 VAC

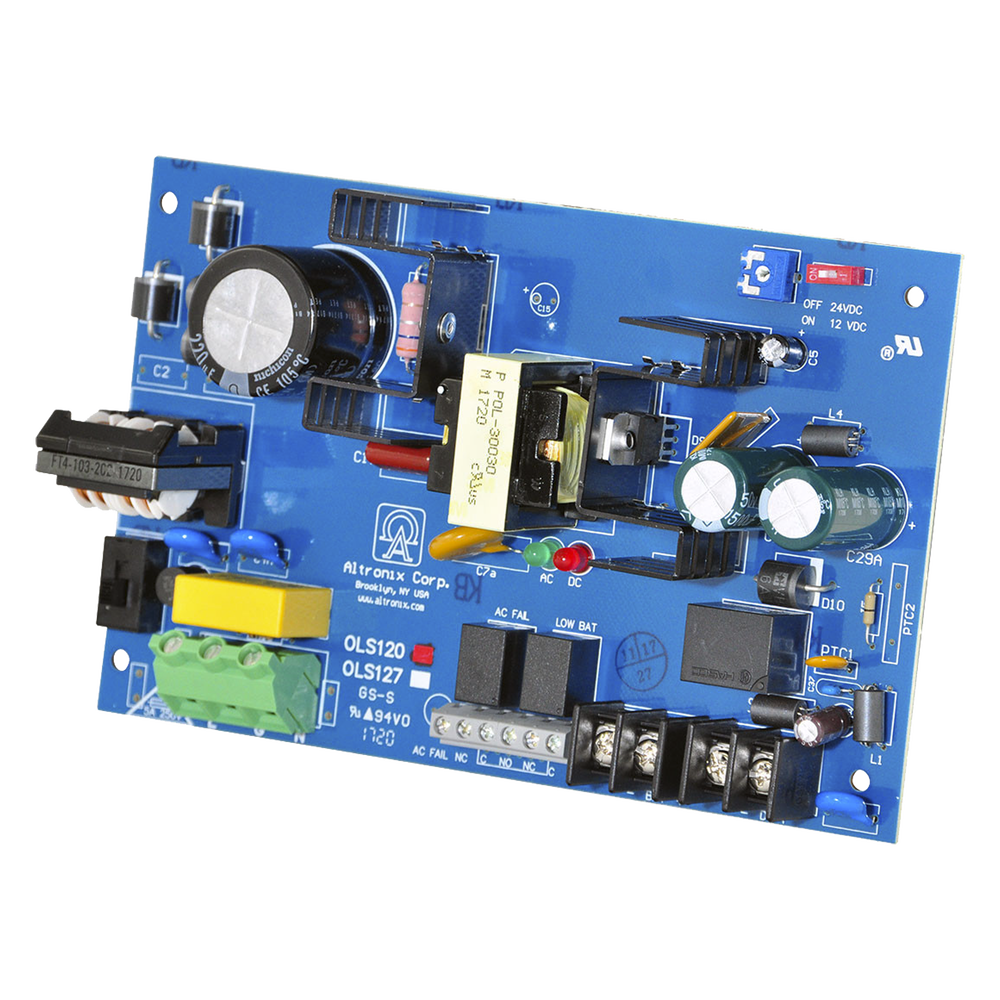

The Altronix OLS120 power supply/charger converts a 115 VAC, 60 Hz or 230 VAC, 60 Hz input into a 12 VDC or 24 VDC output. This unit has a wide range of applications for access control and security system accessories that require additional power.

Entrance

Voltage 115VAC, 60Hz, 0.95A or 230VAC, 50Hz, 0.6A.

Outputs Voltage 12VDC or 24VDC selectable.

Current 4A continuous supply current.

Others

Short circuit and thermal overload protection.

Filtered and regulated.

Backup Battery (not included) Sealed lead acid type or gel type.

Failover on AC loss, instantaneous.

AC Loss Supervision Type 'C' Contacts. Low Battery Type 'C' Contacts.

Indicators (LED)

Input The input voltage is present.

Exit With energy.

Agency listings

UL Recognized by UL for Information Technology Equipment (UL 60950-1) CE European Conformity Physical and Environmental Dimensions (W x L x H) 7.25' x 4.5' x 1.75' (184.1 mm x 114.3 mm x 44.5 mm).

Product weight 0.7 lb. (0.32 kg). Shipping weight 0.9 lb. (0.41 kg).

Temperature

Operation from 0ºC to 55ºC (32ºF to 131ºF).

Storage -20ºC to 70ºC (-4ºF to 158ºF).

Relative humidity 85% +/- 5%.

BTU/Hr (approx.): 12VDC: 25 BTU/Hr. 24VDC: 49 BTU/Hr.
