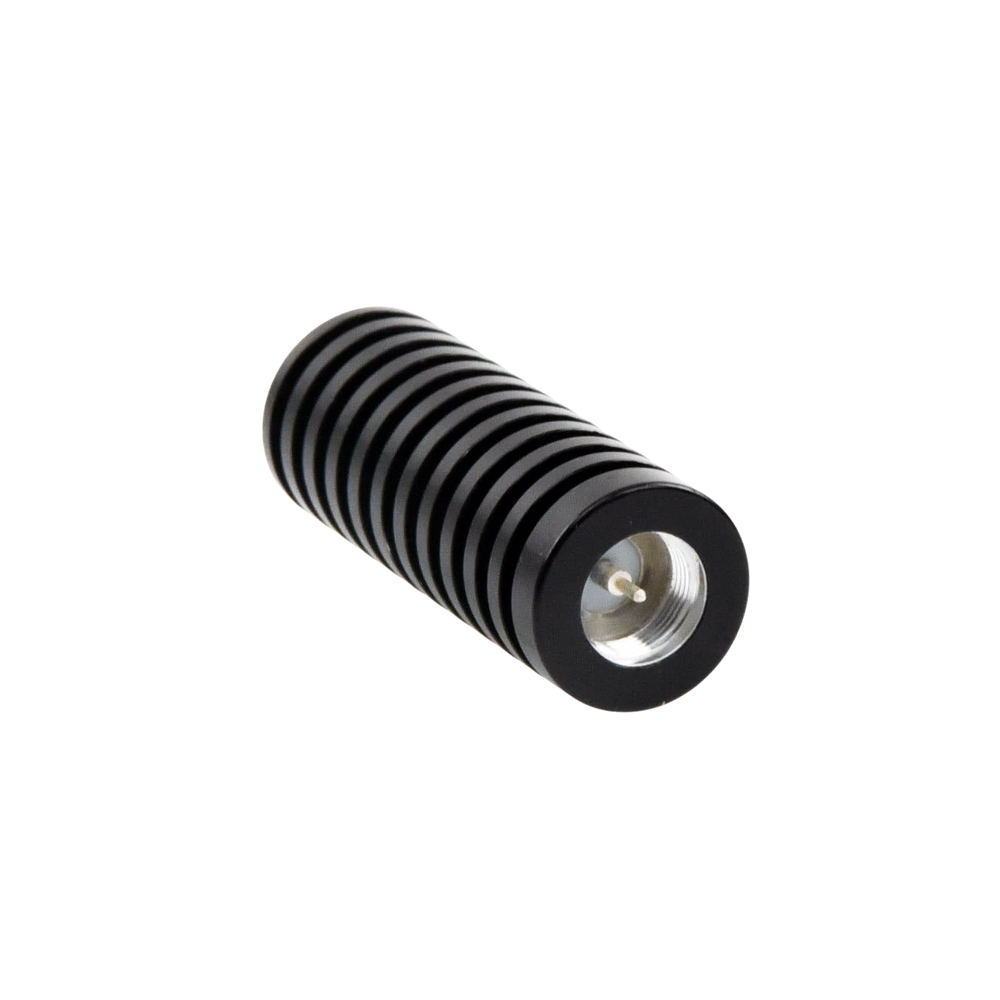

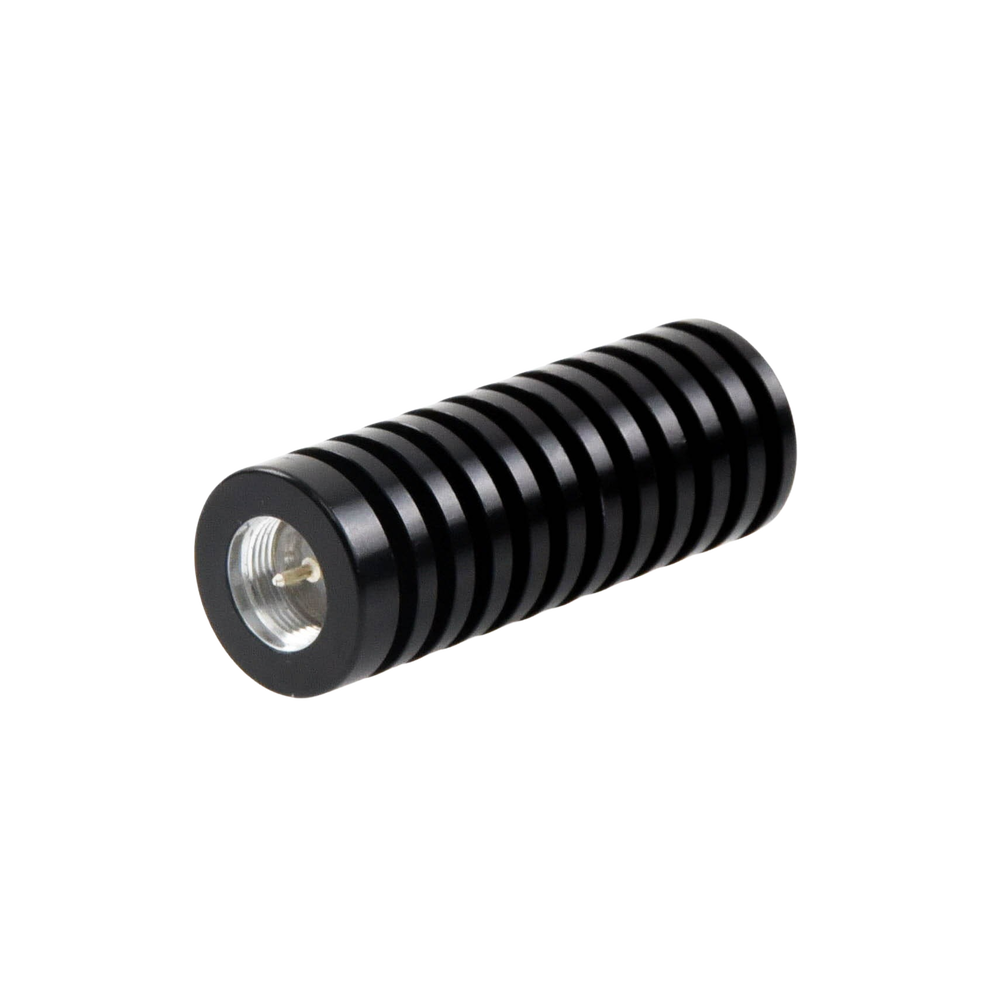

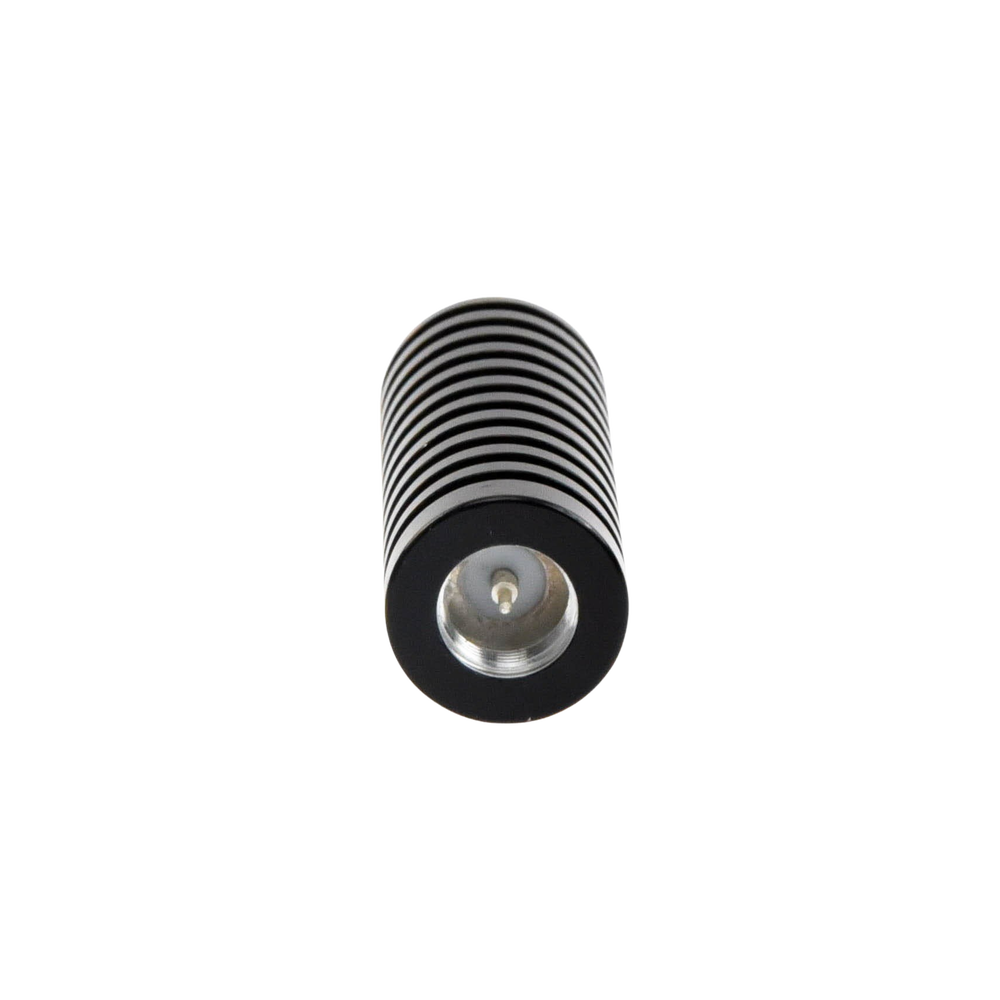

50 Ohm phantom load, 60 Watt (max.) (10 Sec.), DC-1000 MHz, N Male Connector.

50 Ohm phantom load, 60 Watt (max.) (10 Sec.), DC-1000 MHz, N Male Connector.

    50 Ohm Terminal Load, 60 Watt (Max.) 10 Sec., N Male Connector.

• Frequency band: 0 - 1000 MHz
• Input Power (Max.): 60 Watt (10 Sec.).
• Return Loss (Min.): 26 dB.
• Impedance (Nom.): 50 Ohm.
• RF Connector Type: N Male.
• Finish: Black Anodized.
• Heat Sink: Aluminum.
• Total Size (Height x Width): 76 x 25 mm.
• Net Weight: 0.1 kg.
• Shipping Weight: 0.5 kg.
• Operating Temperature Range: -30ºC to +60ºC.
• Operating Humidity Range: 90% Non-condensing.

*Ask for Delivery Time.
