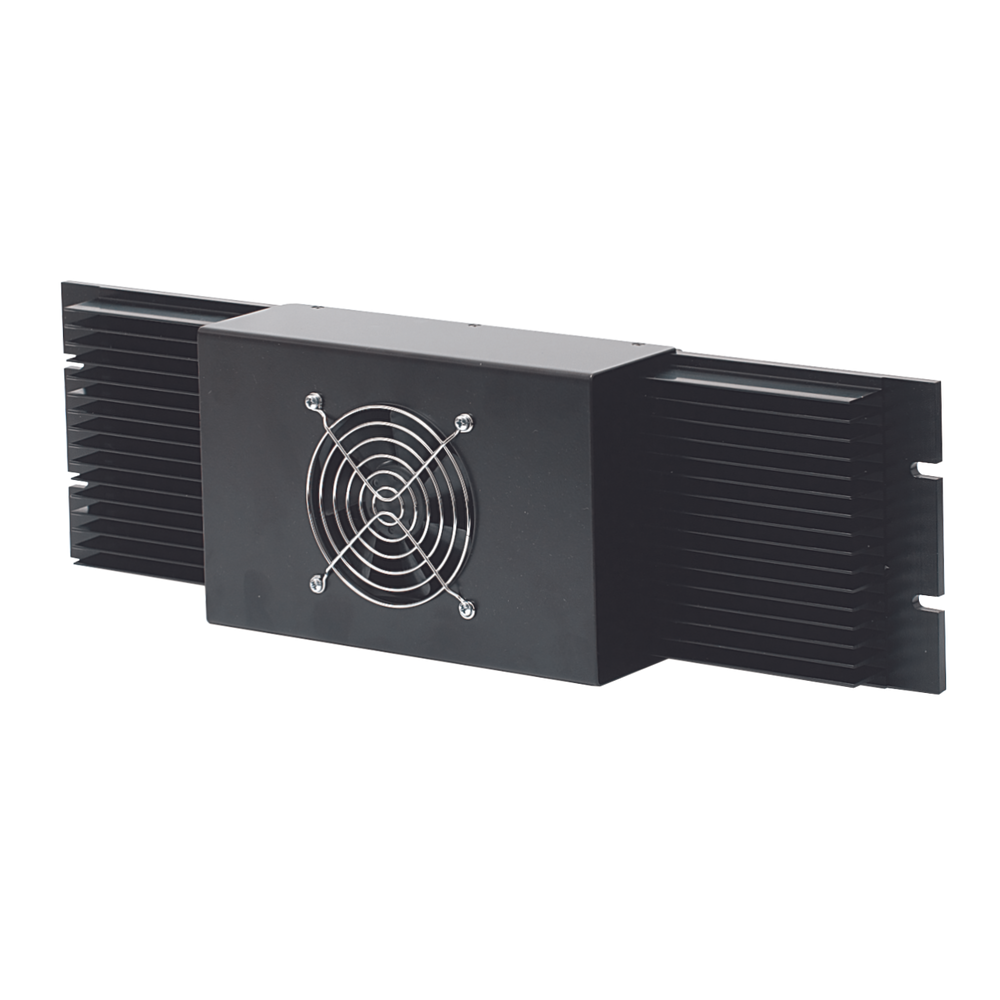

Continuous Duty Amplifier, 470-490 MHz, 1-5 Watt Input / 15-60 Watt Output, N Female.

Continuous Duty Amplifier, 470-490 MHz, 1-5 Watt Input / 15-60 Watt Output, N Female.

Continuous Duty Cycle Amplifier for UHF.

• Input Power: 1-5 Watts
• Output Power: 15-60 Watts.
• Frequency Range: 470-490 MHz.
• Supply Voltage: 13.8 Vdc, 120 or 240 Vac (24 Vdc or 48 Vdc available).
• Current Consumption: 10 Amps.
• Harmonic Attenuation: Exceeds FCC specifications.
• RF Connector Type: N Female.
• Impedance: 50 Ohm.
• Operating Temperature: -30º C to +50º C.
• Operating Cycle: 100% Duty Cycle.
• Weight: 3.2 Kg.(Standard), 6.35 Kg.(With power supply).
• Dimensions: 483mm (Width) x 178mm (Height) x 76mm (Depth) without fan, x 127mm (Depth) with fan, or 203mm (Depth) with power supply.
