• Amplificador de Ciclo Continuo, 490-512 MHz, 1-5 Watt de Entrada /15-60 Watt de Salida, N Hembras.
1 1

TPL COMMUNICATIONS

Continuous Duty Amplifier, 490-512 MHz, 1-5 Watt Input / 15-60 Watt Output, N Female.

Continuous Duty Amplifier, 490-512 MHz, 1-5 Watt Input / 15-60 Watt Output, N Female.

$6.172.274 COP
$6.750.925 COP $6.172.274 COP
Sale Sold out
Shipping calculated at checkout.

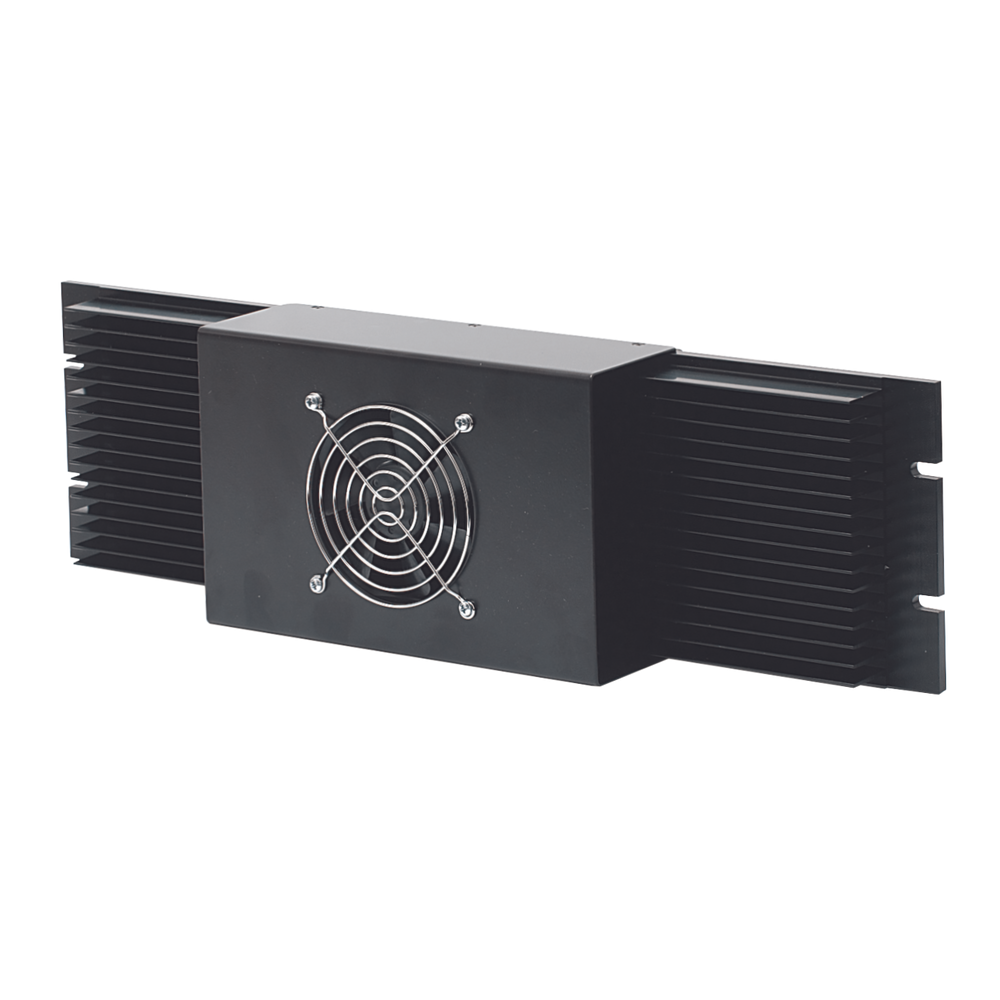

Continuous Duty Amplifier, 490-512 MHz, 1-5 Watt Input / 15-60 Watt Output, N Female.


Continuous Duty Cycle Amplifier for UHF.

  • Input Power: 1-5 Watts
  • Output Power: 15-60 Watts.
  • Frequency Range: 490-512 MHz.
  • Supply Voltage: 13.8 Vdc, 120 or 240 Vac (24 Vdc or 48 Vdc available).
  • Current Consumption: 10 Amps.
  • Harmonic Attenuation: Exceeds FCC specifications.
  • RF Connector Type: N Female.
  • Impedance: 50 Ohm.
  • Operating Temperature: -30º C to +50º C.
  • Operating Cycle: 100% Duty Cycle.
  • Weight: 3.2 Kg.(Standard), 6.35 Kg.(With power supply).
  • Dimensions: 483mm (Width) x 178mm (Height) x 76mm (Depth) without fan, x 127mm (Depth) with fan, or 203mm (Depth) with power supply.

    Out of stock

    MODELO: PA6-1AC-RSF-6
