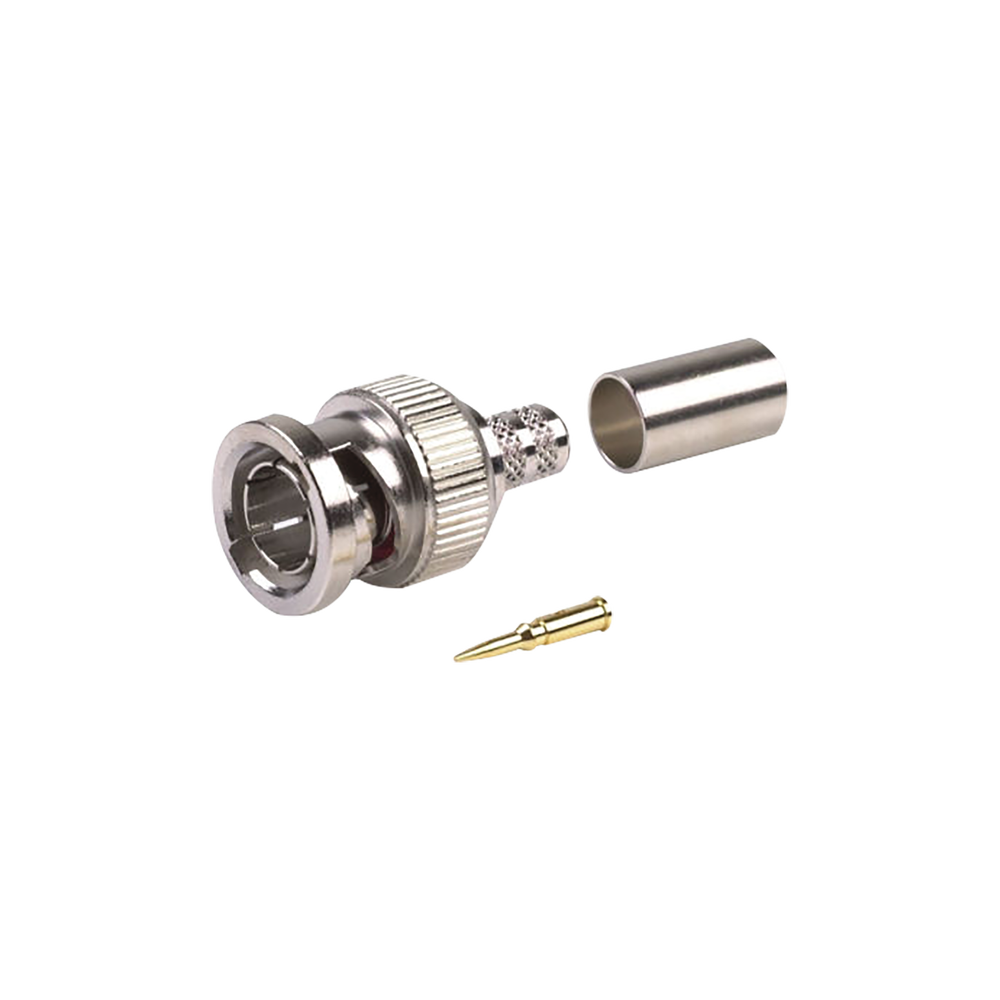

BNC Male Connector, 75 Ohm, Fold-Over Ring for RG-59/U, 62A, Nickel/Gold/Delrin.

BNC Male Connector, 75 Ohm, Fold-Over Ring for RG-59/U, 62A, Nickel/Gold/Delrin.

BNC Male Connector, 75 Ohm, Folding Ring for RG-59/U cable.

• RF Connector: BNC Male.
• RF Connector Body Type: Straight.
• RF Impedance: 75 ohm.
• For cable: RG59, 62, 210 (75 ohm).
• Maximum Voltage / Pwr: 500 Vrms.
• Frequency range: 0-4 GHz
• Body plating: Nickel
• Material (Pin): Gold
• Center pin type: Foldable.
• Insulating material: Delrin
• Strip lining to the end: 0.625
• Shield from the strip to the end: 0.300.
• Band insulation to the end: 0.125.

*Ask for delivery time.
