• Fuente tipo tarjeta de 1 salida seleccionable de 6,12, 24 Vcd @ 4 A, con capacidad de respaldo, Requiere transformador de entrada.
1 2

ALTRONIX

1 selectable output card type power supply of 6, 12, 24 Vdc @ 4 A, with backup capacity. Requires input transformer.

1 selectable output card type power supply of 6, 12, 24 Vdc @ 4 A, with backup capacity. Requires input transformer.

$371.458 COP
$406.282 COP $371.458 COP
Sale Sold out
Shipping calculated at checkout.

1 selectable output card type power supply of 6, 12, 24 Vdc @ 4 A, with backup capacity. Requires input transformer.

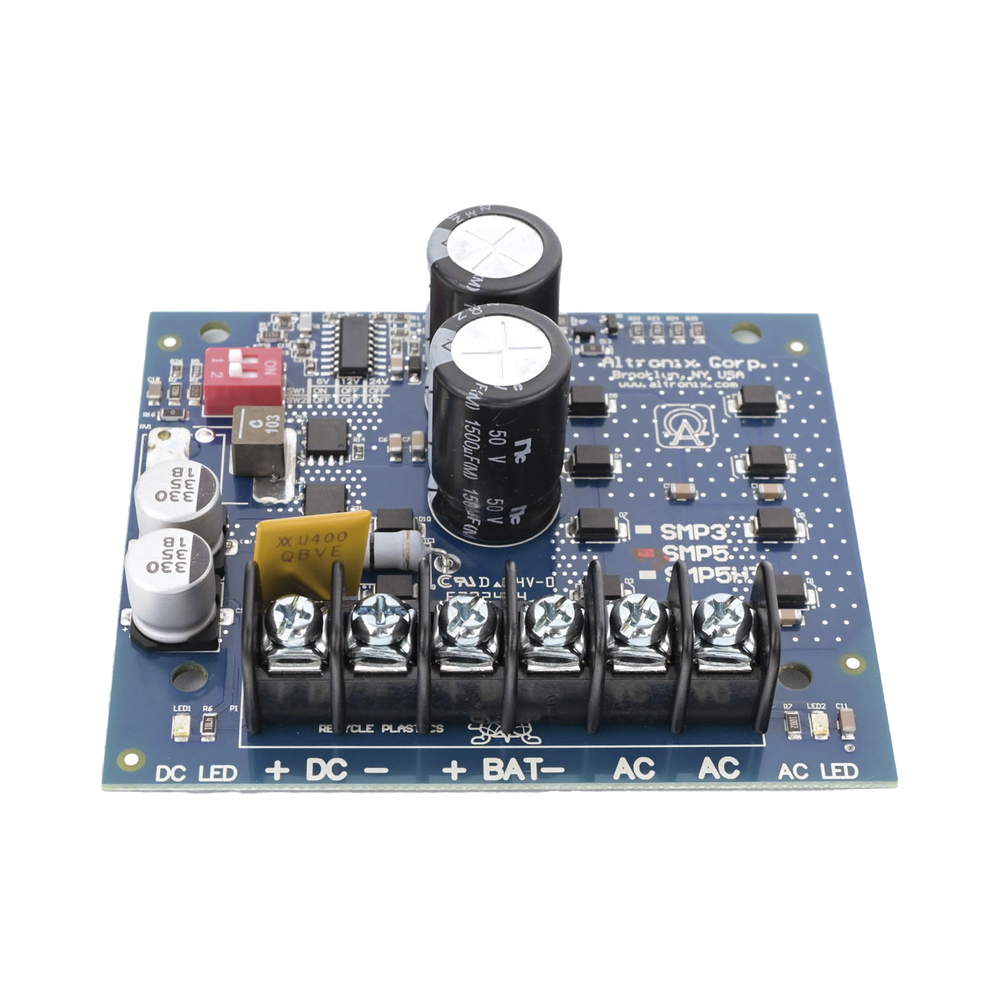

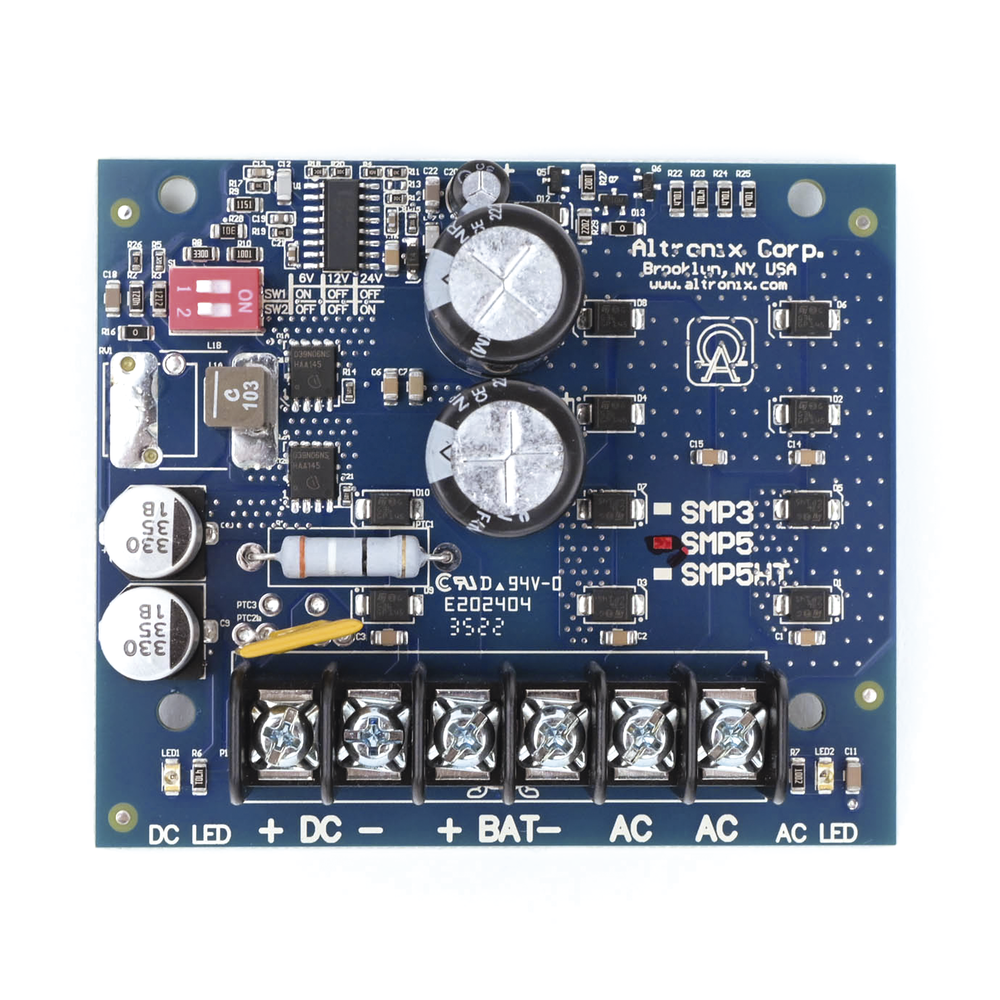

SMP-5

CARD-TYPE POWER SUPPLY WITH BACKUP CAPACITY AND SELECTABLE OUTPUT IN 6, 12 AND 24 VDC, 4 A

The SMP5 power supply/charger converts a low-voltage AC input into a 6V DC, 12V DC, or 24V DC output. This unit has a wide range of applications for access control accessories, security, and CCTV systems that require additional power.

...

Main Features:

  • Selectable output of 6VDC, 12VDC or 24VDC
  • Supply current 4A
  • Electronically regulated and filtered outputs.
  • Requires 16 Vac to 24 Vac input transformer
  • Overvoltage and short circuit protection.

...

Physical and Electrical Characteristics:

  • Dimensions: 76.2 mm wide x 88.9 mm long x 50.8 mm high.
  • Operating Temperature: 0°C to 49°C (32°F to 120°F)
  • Storage Temperature: -20°C to 70°C (-4°F to 158°F)
  • Product Weight: 0.35 lbs. (0.158 kg)
  • Shipping Weight: 0.45 Lbs. (0.204 kg)...

...

Highlighted Features:

  • Zero voltage drop when switching to battery backup.
  • AC input and DC output LED indicators.
  • Extremely compact design.
  • Includes battery cables.
  • Protection against short circuits and thermal overloads

    Out of stock

    MODELO: SMP-5
