SYSCOM UHF Duplexer, 6 Cav. 403-430 MHz, 50 Watt, 5 MHz Sep. Band Rejection, BNC Females.

SYSCOM UHF Duplexer, 6 Cav. 403-430 MHz, 50 Watt, 5 MHz Sep. Band Rejection, BNC Females.

UHF Band Rejection Duplexer for 403-430 MHz.

• Frequency band: 403-430 MHz
• TX-RX Separation : 5 to 8 MHz.
• Maximum continuous input power: 50 Watt.
• Impedance: 50 Ohm.
• Insertion Loss (TX-Ant): 1.2 dB max.
• Insertion Loss (Ant-RX): 1.2 dB max.
• TX-RX isolation: 80 dB typical.
• VSWR, max. (50 Ohms): 1.3:1
• Connectors: BNC (N Optional).
• Temperature Range: -10 to 60º C.
• Dimensions: 31.8(1 1/4) X 157 (6 3/16) X 228 (9) mm(in).

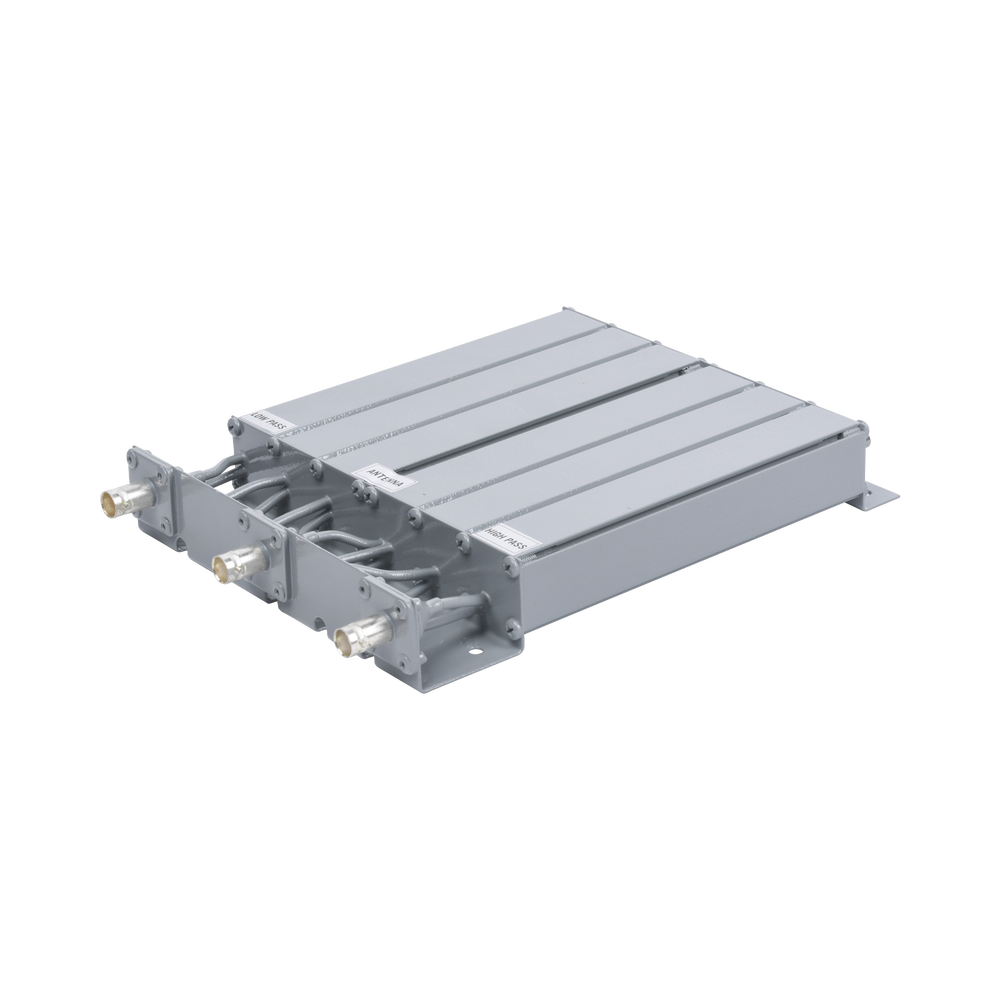

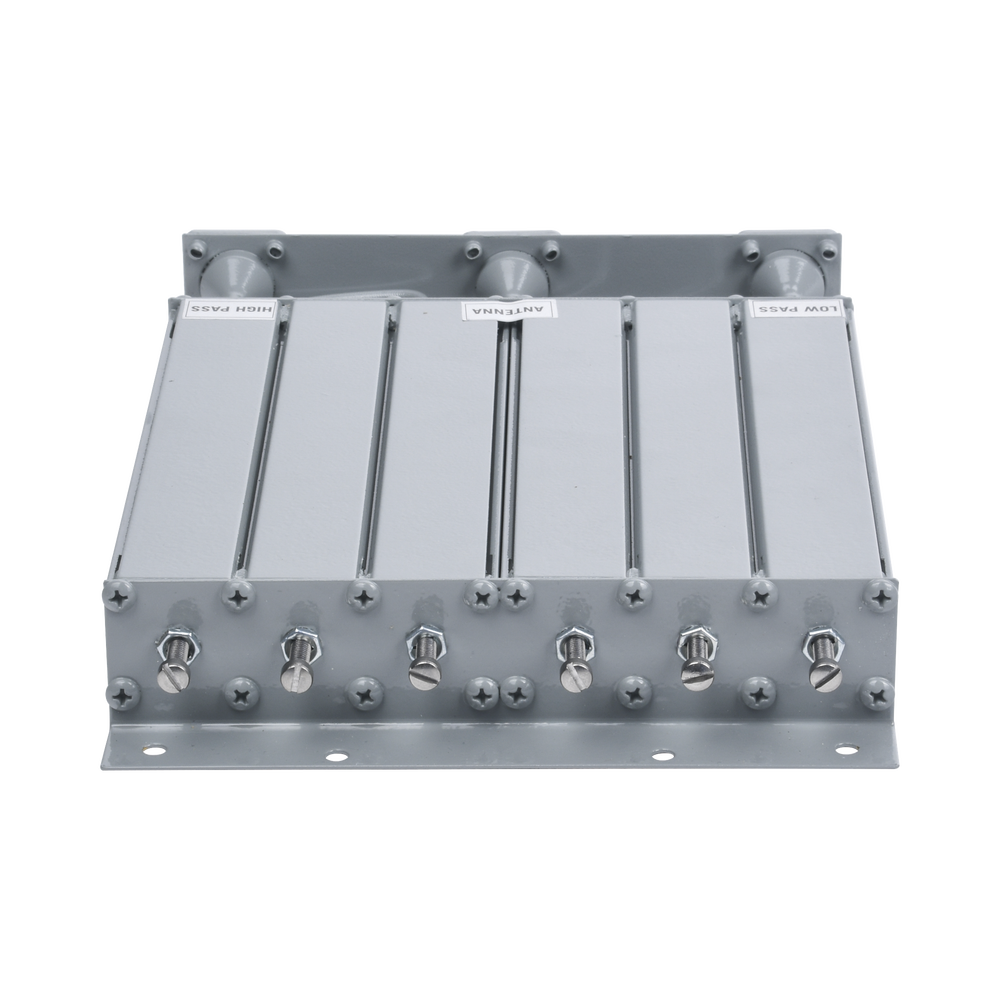

• The SYS-4533-xP mobile Duplexer series uses six capacitively tuned resonant cavities in a compact, tempered 6063-T5 aluminum extrusion chassis, solid silver-plated copper tubing, Teflon insulators and low-loss conformable cable are used for interconnection, and the entire unit is electrostatically painted for added protection.
• Widely used in 'Full Duplex' systems with mobile radios and repeaters ( 50 W max).
• Minimum frequency shift due to temperature changes
• Using this filter with frequency separation less than 5 MHz may cause problems in the repeater.
• This device will not help you solve sensitivity problems in high RF incidence locations.

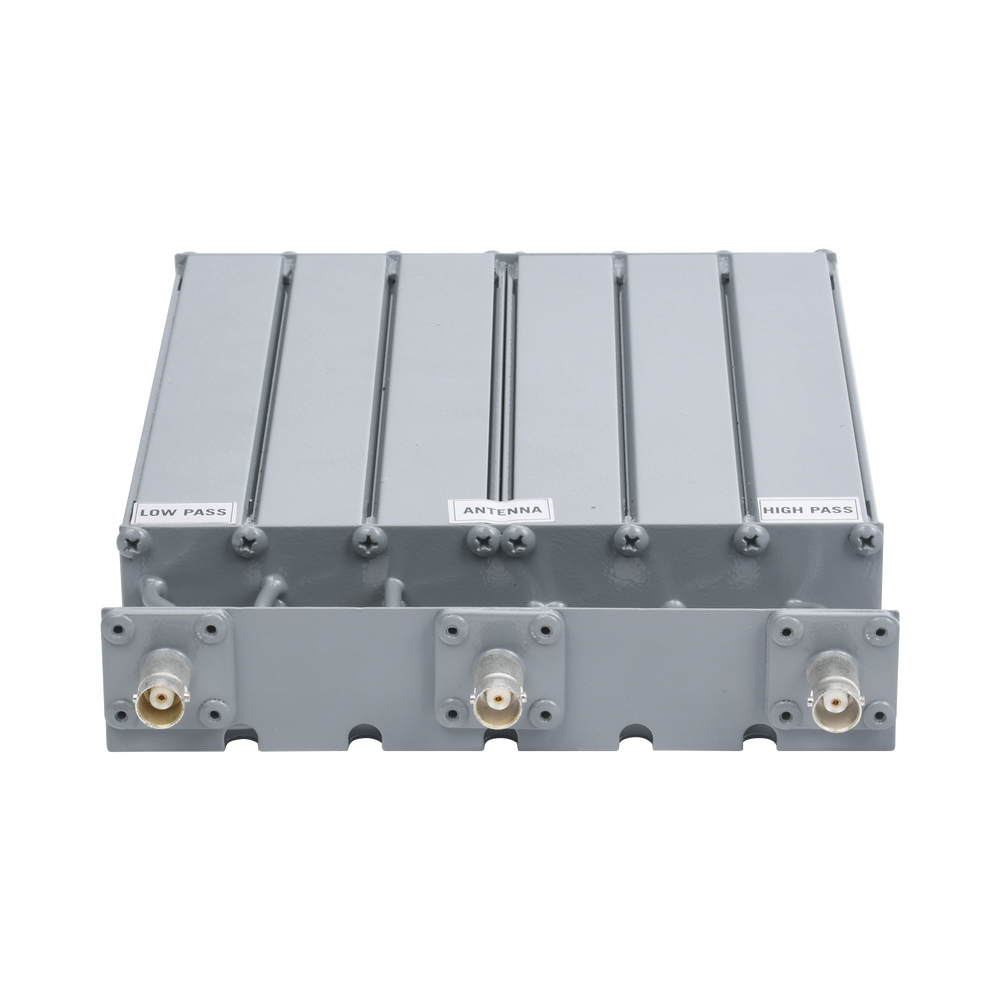

• When interconnecting the High-Pass and Low-Pass of the duplexer with the repeater, the highest frequency must be identified for the 'High Pass' as well as the lowest frequency for the 'Low Pass' regardless of which one is Transmitted or Received.
