3 Vdc 1.2 Ah battery for Crow wireless FWMAG devices (non-rechargeable)

3 Vdc 1.2 Ah battery for Crow wireless FWMAG devices (non-rechargeable)

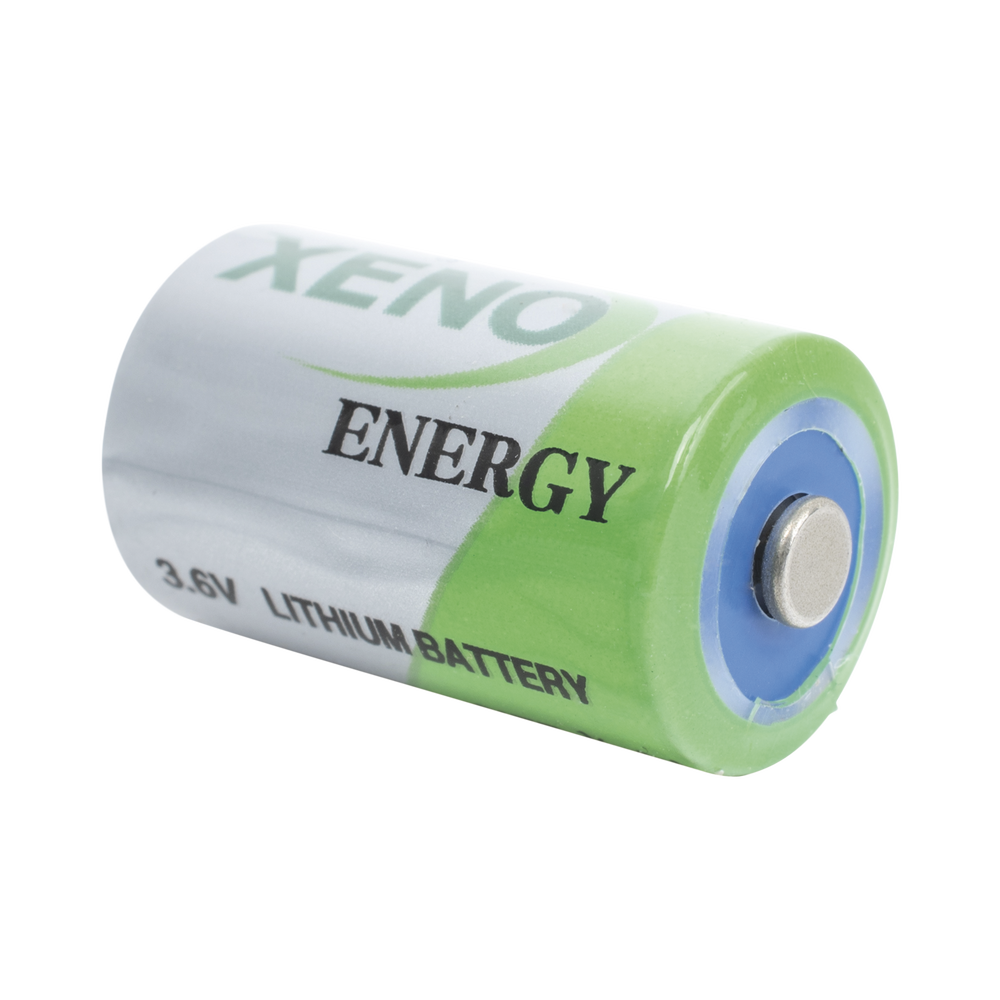

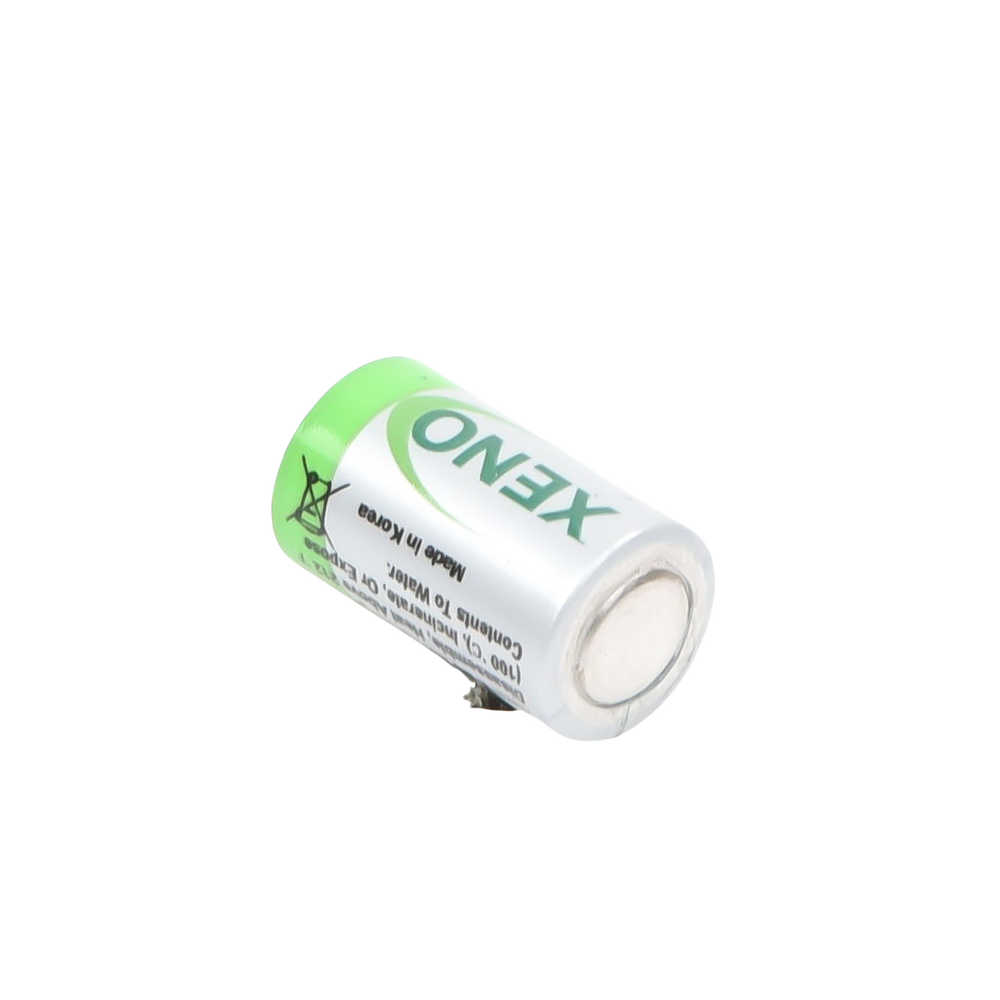

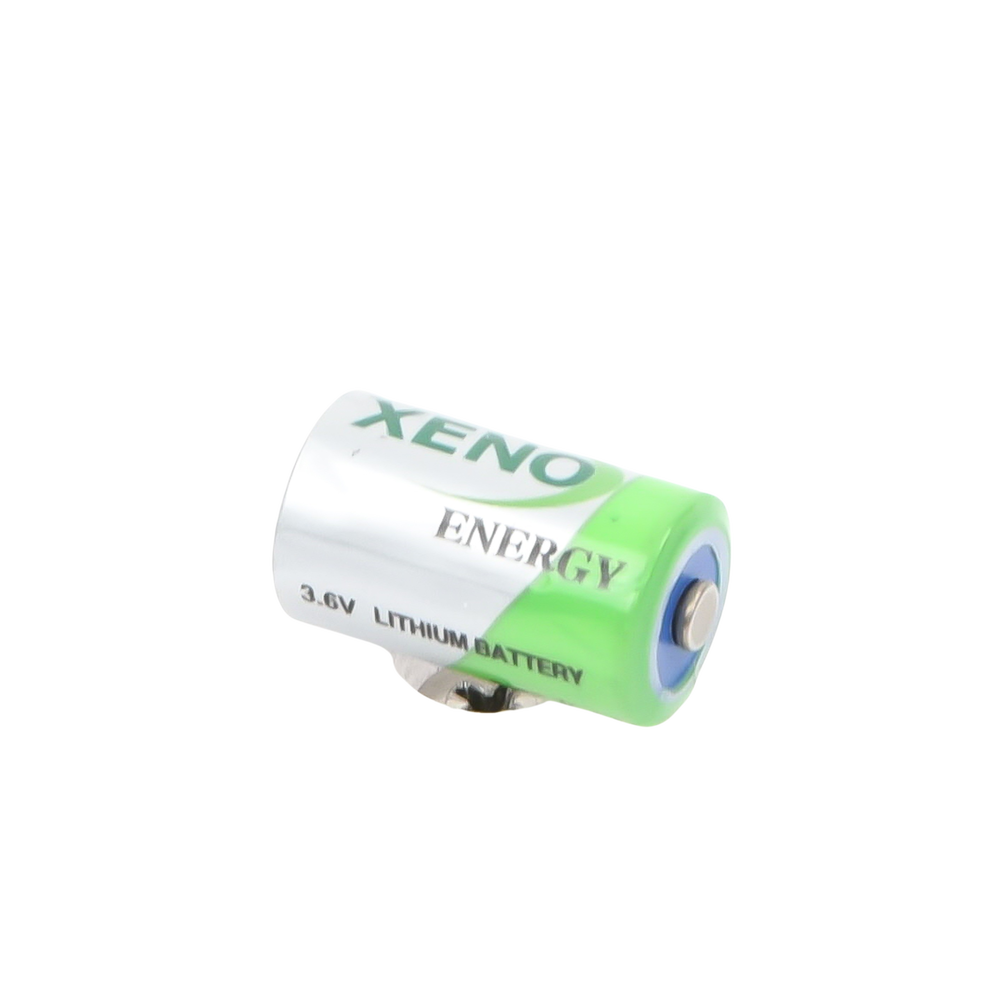

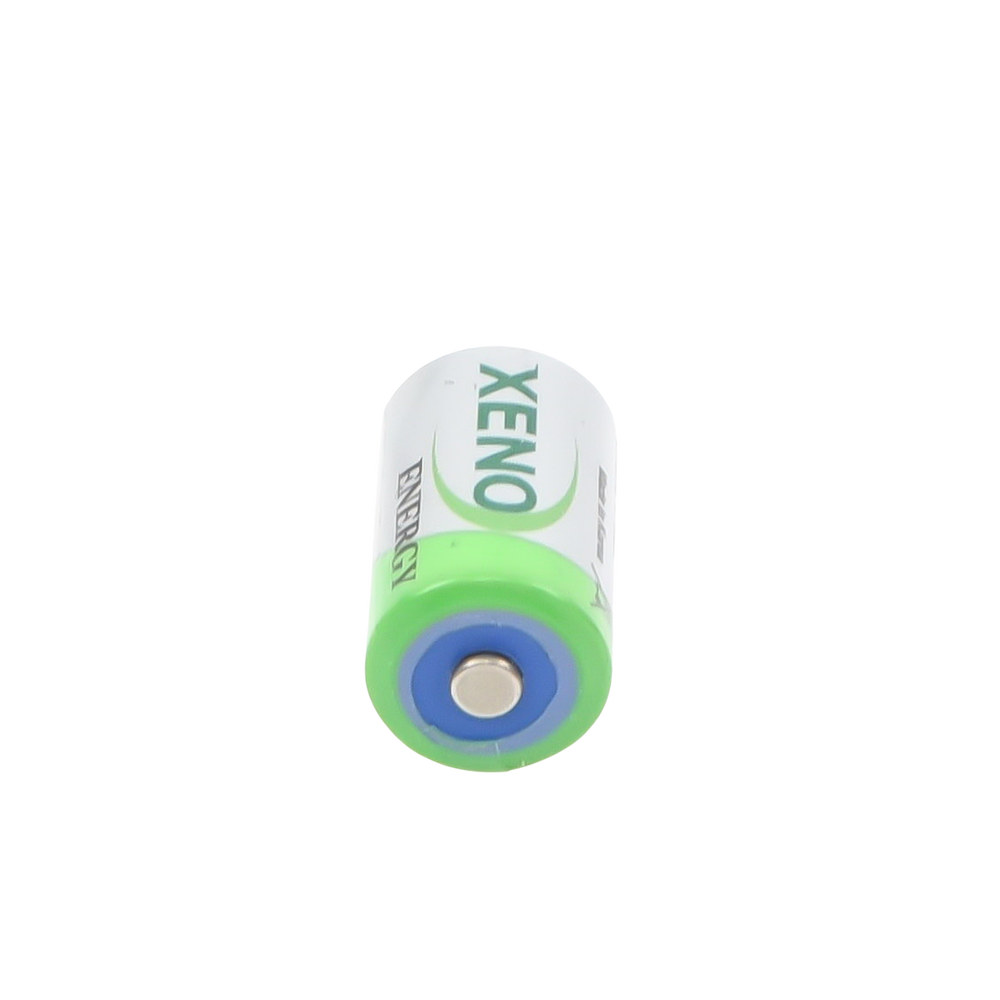

3.6 Vcd, 1.2 Ah LITHIUM BATTERY

Applications:

• Crow Wireless Magnetic Contacts (FWMAG)

Specifications:

Typical values ​​@ +20 °C for batteries stored for one year or less

• Nominal voltage: 3.6 Vdc
• Capacity: 1.2 Ah
• Non-rechargeable
• Size / Measurements: 0.57' DX 0.99' H (14.5 mm X 25.2 mm)
• Termination Type: Button Top (Extended)
• Discharge rate 500µA
• Nominal capacity (at 1mA/20°C/68°F/2.0V cut-off) 1.65 Ah
• Open circuit voltage (at 20°C)
• Nominal Voltage (At 1mA / 20°C / 68°F) 3.59 V
• Maximum continuous current 60 mA
• Maximum pulse current capacity 150 mA
• Rated 1 sec. Pulse capacity (up to 3V) 30 mA
• Operating temperature range -55 ~ 85 ° C
• Weight 11.3 g (0.398 oz)
• Anode Surface 9.7 cm2
• Volume 5.5 cm3
