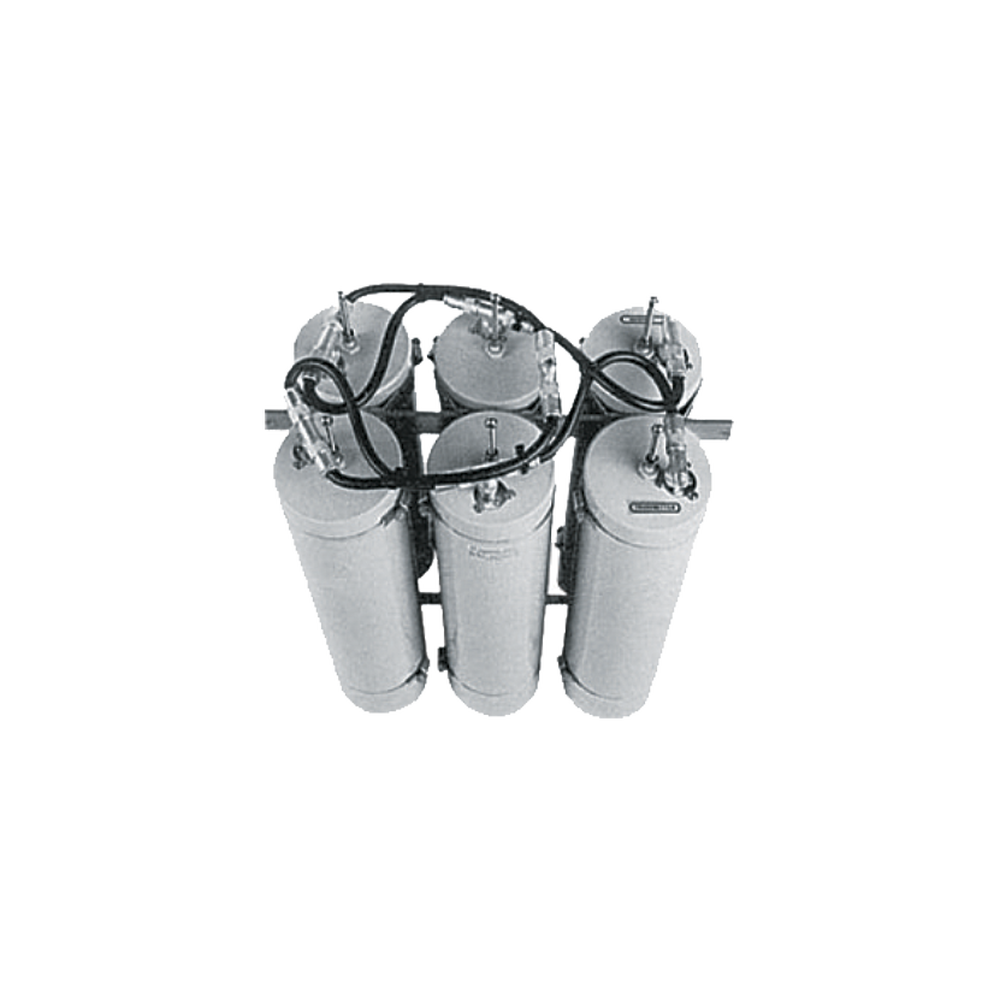

Band-Pass-Band-Reject Duplexer, 148-174 MHz, 6 Cavities (5"Dia.) 400 kHz, 2.0 dB, 350 Watt, N Females.

Band-Pass-Band-Reject Duplexer, 148-174 MHz, 6 Cavities (5"Dia.) 400 kHz, 2.0 dB, 350 Watt, N Females.

Bandpass/Band Reject Duplexer, 148-174 MHz, 6 Cav., 350 Watt.

• Frequency Range: 148-174 MHz.
• Number of cavities: 6 (5" Diameter) .
• TX-RX separation: 400 KHz.
• Insertion loss (max.): 2 dB.
• Input Power (max.): 350 Watt.
• Isolation: 100 dB @ 400 kHz.
• VSWR (max.): 1.5:1
• Connectors: N Female.
• Dimensions (Height x Width x Depth): 710 x 483 x 280 mm.
• Weight: 12.3 kg.

*Ask for delivery time.
