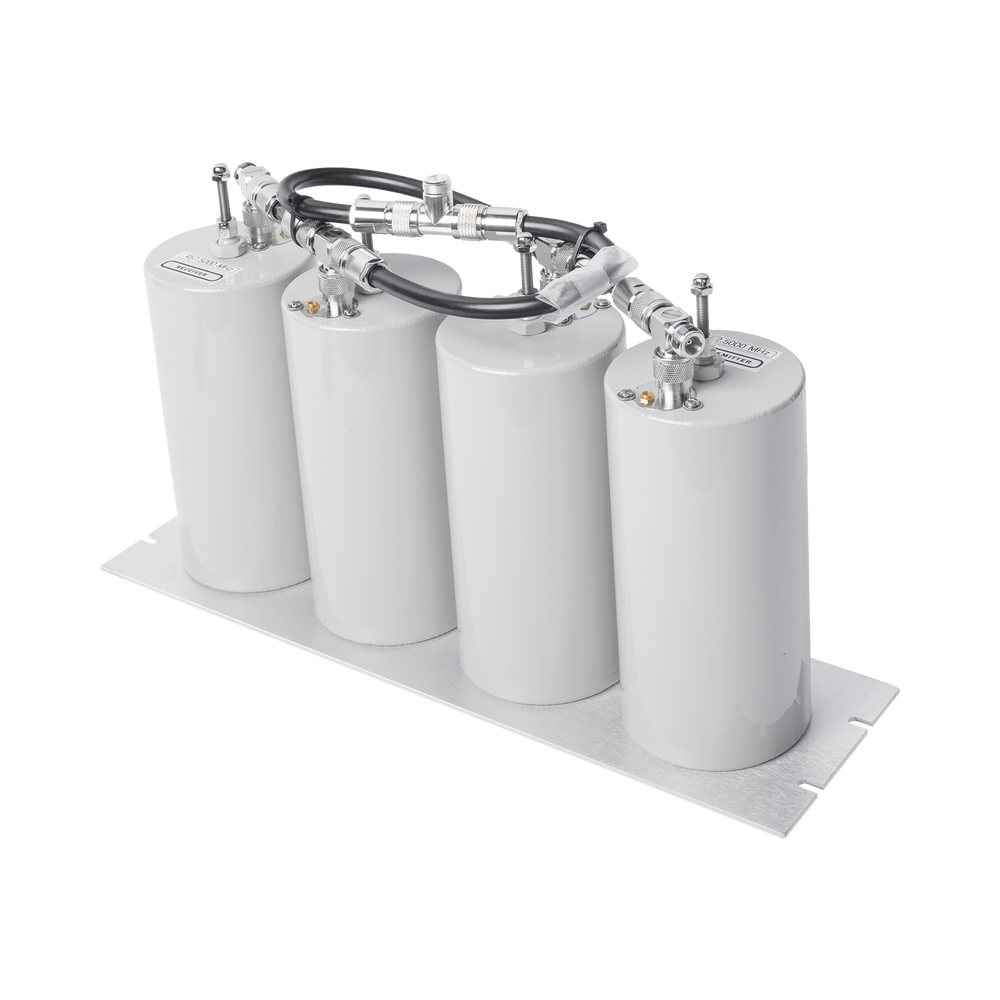

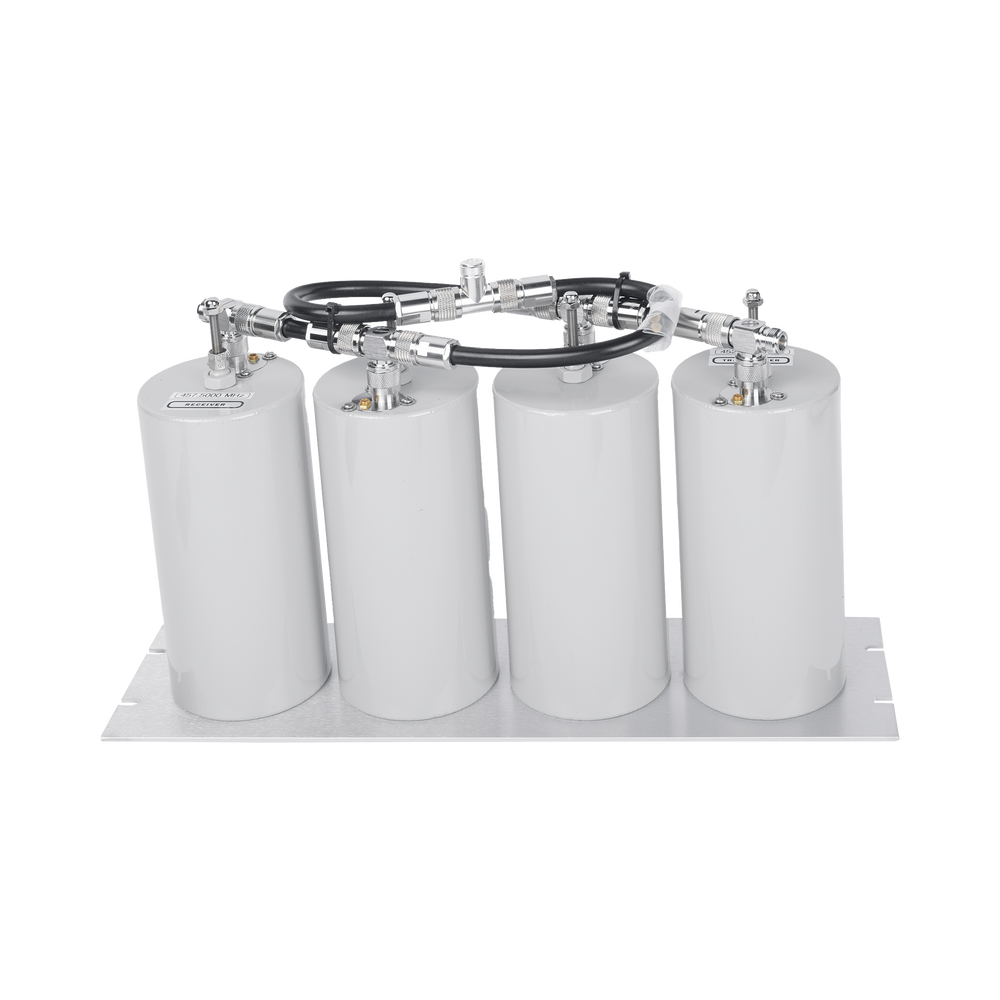

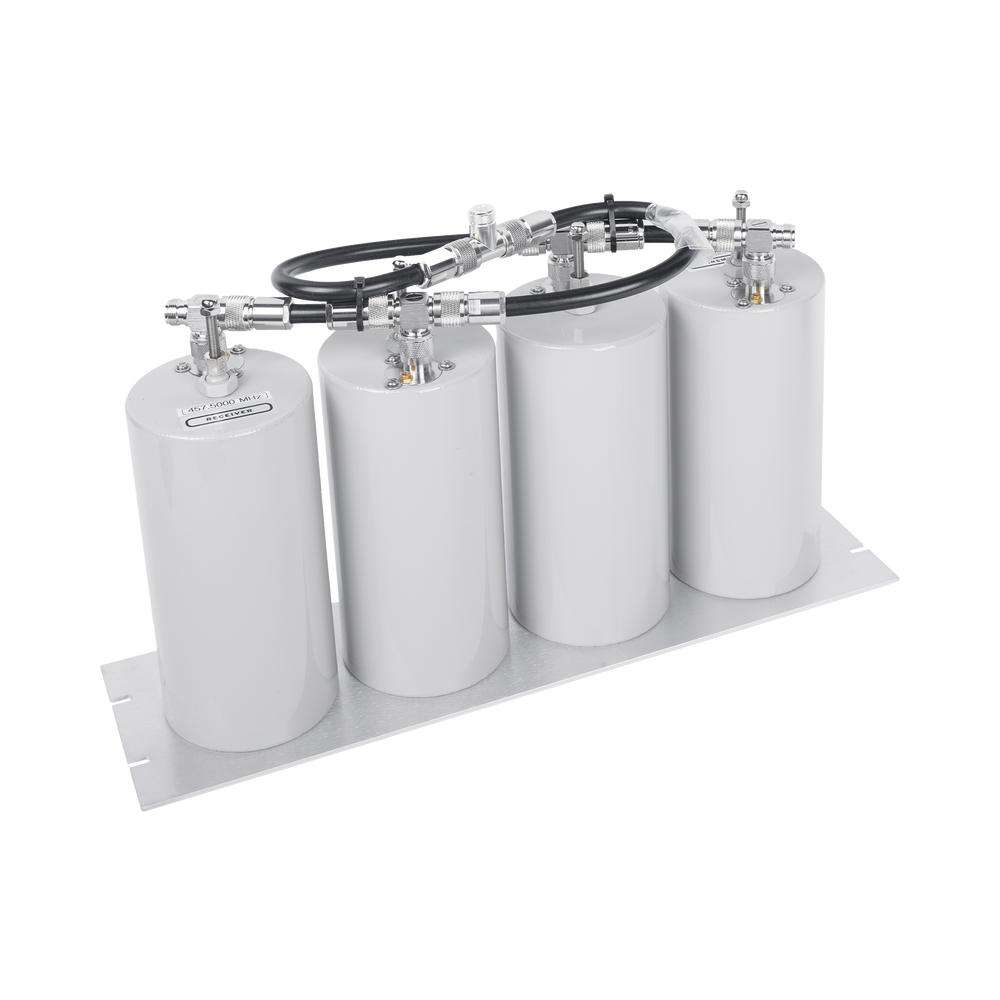

Bandpass-Band Reject Duplexer, 400-470 MHz, 4 Cavities (4" Dia.) 5 MHz, 250 Watt, N Female

Bandpass-Band Reject Duplexer, 400-470 MHz, 4 Cavities (4" Dia.) 5 MHz, 250 Watt, N Female

UHF Band-Pass/Band-Reject Duplexer.

• Frequency Range: 400-470 MHz.
• Cavities: 4 (4 in, diameter).
• TX-RX Separation (Min.): 5 MHz.
• Insertion loss: 1.0 dB.
• TX-Rx Isolation: 90 dB (@ 5 MHz.
• VSWR (max.): 1.5:1
• Power: 250 W.
• Connectors: N Females.
• Dimensions (Height x Width x Depth): 133 x 483 x 267 mm.
• Weight: 4.5 Kg.
