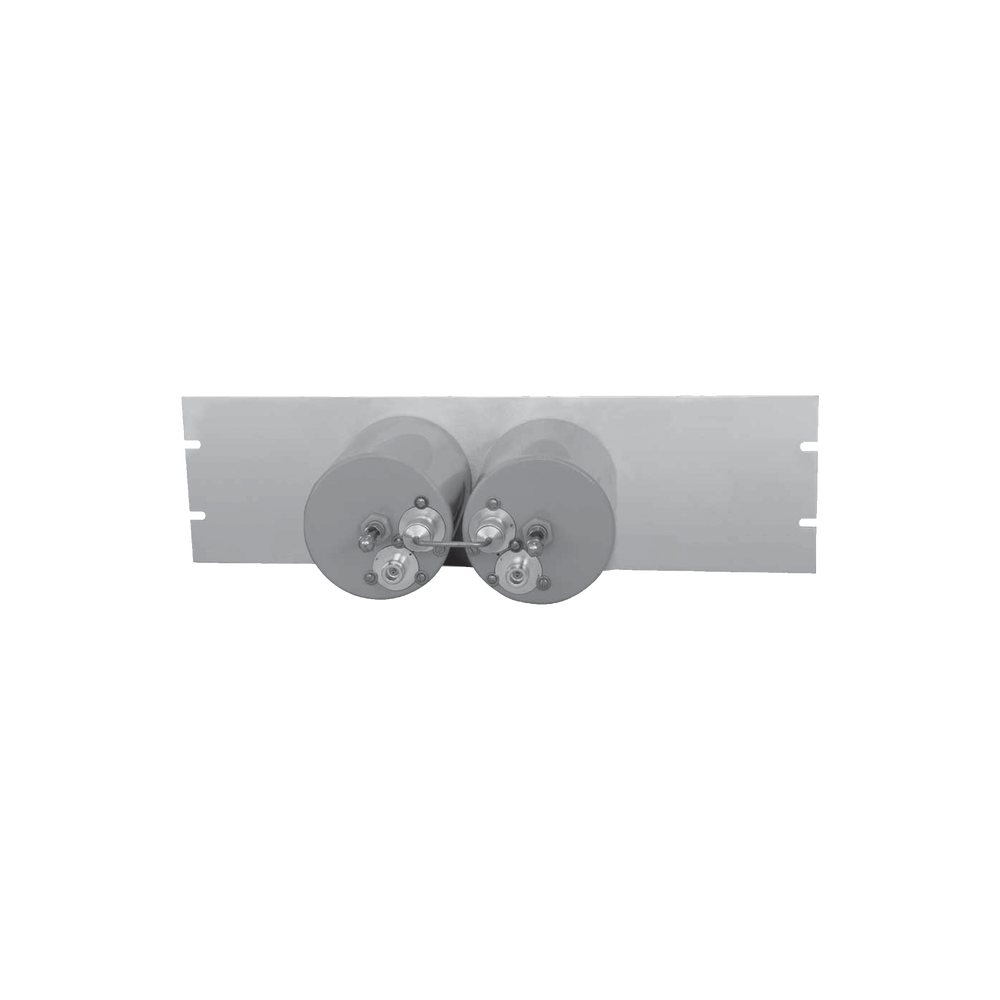

Band Pass/Band Reject Preselector, 806-960 MHz, 2 Cav. 5 MHz Bandwidth, 45 MHz Sep., N Females.

Band Pass/Band Reject Preselector, 806-960 MHz, 2 Cav. 5 MHz Bandwidth, 45 MHz Sep., N Females.

Band Pass/Band Reject Preselector, 806-960 MHz, 5 MHz Bandwidth.

• Frequency Range: 806-960 MHz.
• Bandwidth: 5 MHz.
• Attenuation (+45 MHz Fo): 90 dB.
• Insertion Loss: 0.5 dB.
• Input Power (max.): 350 Watt.
• Impedance (Nom.) / VSWR (max.): 50 Ohm / 1.5:1
• Temperature Range: -30°C to +70°C.
• Number of Cavities / Size: 2 / 4'.
• Connectors: N Female.
• Dimensions (Height x Width x Depth): 133 x 483 x 265 mm.
• Mounting: 19' Rack.
• Net Weight: 3.6 kg.
• Shipping weight: 5.5 kg.

*Ask for delivery time.
