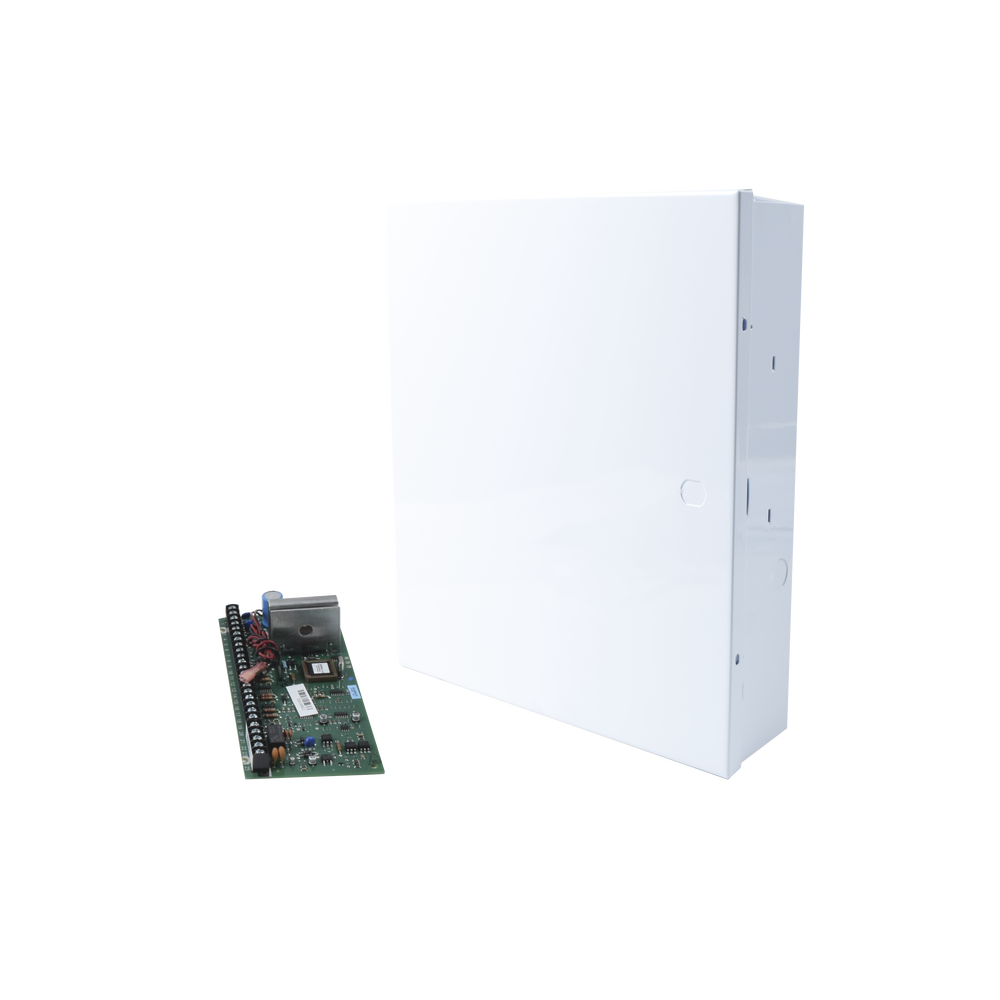

VISTA48-LA 48-Zone Hybrid Alarm Panel
The VISTA-48LA is a versatile security control panel designed for residential and commercial alarm systems. With capacity for up to 48 protection zones, it allows the connection of a variety of security devices. With flexible communication options, partitioning to segment specific areas, and compatible control keypads, it offers customizable programming to meet the user's needs. Its expandability, advanced security features, event logging, and firmware upgradeability ensure a robust and up-to-date system. It is important to consult the user manual or contact your installer for specific configuration details.
- Programming by alphanumeric keyboard, software downloading.
- Maximum 8 keypads, supports alphanumeric, icon, and touch-sensitive keypads; maximum 2 (auxiliary power supply suggested).
- 2 programmable entry and exit zones with different times.
- Supports 4-wire smoke detectors.
- Auto arming and disarming function.
- Supports 4204 relay module, maximum 4 (Each relay consumes 40 mA).
- Supports 40 wireless zones by adding the Honeywell Home Resideo 6160RF / 5881EN / 5883H receiver.
- 250 events in memory . The memory can be read using COMPASS Downloading software.
- Range up to 60m on 5800 wireless series, can be extended using 5800-RP .
- Supports wired zone expansion module 4219 and 4229 .
- 3 partitions with the option to configure one as a lobby.
- Telephone line cut detection.
-
Programmable voltage outputs:
- At 12 VDC / 100 mA.
- B at 12 VDC / 30 mA.
- Auxiliary current of 600 mA.
- 16 VAC / 40VA power input.
- 12 VDC / 2 A siren output.
- Up to 48 user codes.
- Confirmation of arming and disarming.
- 6 authority levels: Installer, Master, Standard, Guest, Arm Only, and Duress.
- Quick assembly system.
- 5 arming levels: full, partial, night, instant and maximum.
- Door open notice (CHIME).
- Built-in communicator for communication with the Alarm Receiving Center.
- Supports 4+2 and CONTAC/ID communication formats.
- Supports dual and split reporting option.
- Compatible with 3i Third Generation communication systems.
- Order your VISTA 48 Panel with 'S' finish with smaller cabinet.
Includes:
- 48 Zone Alarm Panel.
- Cabinet
Note:
- Transformer not included, it is recommended to use 1361-GT .
- It is recommended to use the 6160 / 6160RF / 6164SP / 6148SP keypad for plan configuration and assembly .
- It is recommended to use the PL4.512 battery.
*1 Year warranty.
**Compatible with Total Connect from version 5.2
- 3 Partitions, Up to 48 zones maximum, Compatible with 5800 series sensors, Up to 40 wireless zones.
78 in stock
MODELO: VISTA-48LA
