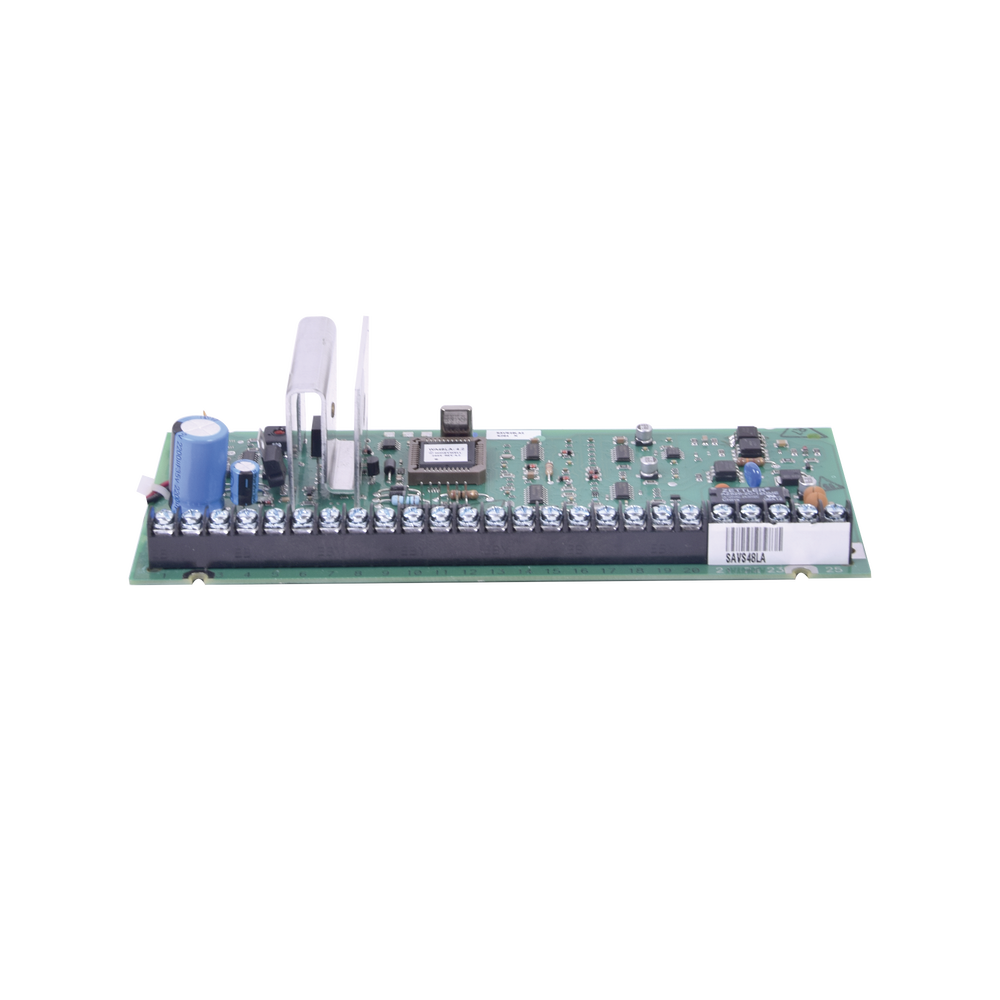

VISTA48LA card with 8 zones expandable to 48

Ready for Honeywell Total Connect (Smart Home) and High Security Alarm Monitoring with ALARMNET (IP and 4G).

Extreme High Security

ALARMNET ensures your signal ALWAYS REACHES. Your information is encrypted, using highly redundant servers in the USA and 4G backup (multiple carriers).

Smart Home with Total Connect

Manage your Panel and other devices (Thermostats, Doors, Sensors, Lighting) with Total Connect, the leading smart home app in the US.

In this image we see the status of the main door, lighting in the living/dining room, garage door, sensor alerts, and cloud camera recordings.

High Security Cloud Video Recording

Access cloud-based video streaming, fluidity, and high security on Honeywell USA servers from your mobile device or via the web.

Compatible cameras: IPCAMWIC1 , IPCAMWIC2 and IPCAMWOC1

High Security Remote Arming

Remotely control security partitions for your business.

Manage security, access control, and user management with Honeywell Total Connect VISTA® partitions.

Turn your home into a smart home

Honeywell Total Connect lets you manage all your devices with high security on any mobile device.

Compatible with Google Home and Alexa

'Alexa, ask Honeywell to turn on the lights'
'Alexa, ask Honeywell to lock the door'
'Alexa, ask Honeywell to arm the home'

Alarm panel card for residential, business or office applications.

System:
• Programming by alphanumeric keyboard, software downloading.
• Maximum 8 keypads, supports alphanumeric, icon, and touch-sensitive keypads; maximum 2 (auxiliary power supply suggested).
• Entry time defined by the installer.
• 2 programmable entry and exit zones with different times.
• Automation functions.
• Auto arming and disarming function.
• Supports 4204 relay modules, maximum 4.
• 250 events in memory. The memory can be read using COMPASS Downloading software.
• 3 partitions with the option to configure one as a lobby.
• Confirmation of arming and disarming.
• Configurable partial auto.
• 2 A siren output.
• 2 programmable voltage outputs.
• Telephone line cut detection.
• Auxiliary current of 600 mA
• 16 Vac power input.

Zones:
• 8 programmable zones, configurable with or without end-of-line resistor.
• Zones can be configured for fast or slow response.
• Zone duplication capability.
• Zone one supports up to 16 two-wire smoke detectors.
• Supports 4-wire smoke detectors.
• Supports 40 wireless zones by adding the Honeywell 5800 receiver.
• 24 configurable zone types.
• 16 additional zones for portable controls.
• Supports wired zone expansion modules 4219 and 4229.
• 100% wireless system monitoring.
• Range of up to 60 m on the 5800 wireless series.

Users:
• 48 user codes.
• 6 authority levels: Installer, Master, Standard, Guest, Arm Only, and Duress.
• Quick assembly system.
• 5 arming levels: full, partial, night, instant and maximum.
• Open door notification (CHIME).

Communication:
• Built-in communicator for communication with the Alarm Receiving Center.
• Supports 4+2 and CONTAC/ID communication formats.
• Supports dual and split reporting option.
• Compatible with 3i Third Generation communication systems.


Includes:
- 48 Zone Alarm Panel.

*Requires 8 2Kohm end-of-line resistors model 2.0KH-ND

1 year warranty.


**Compatible with Total Connect from version 5.2
