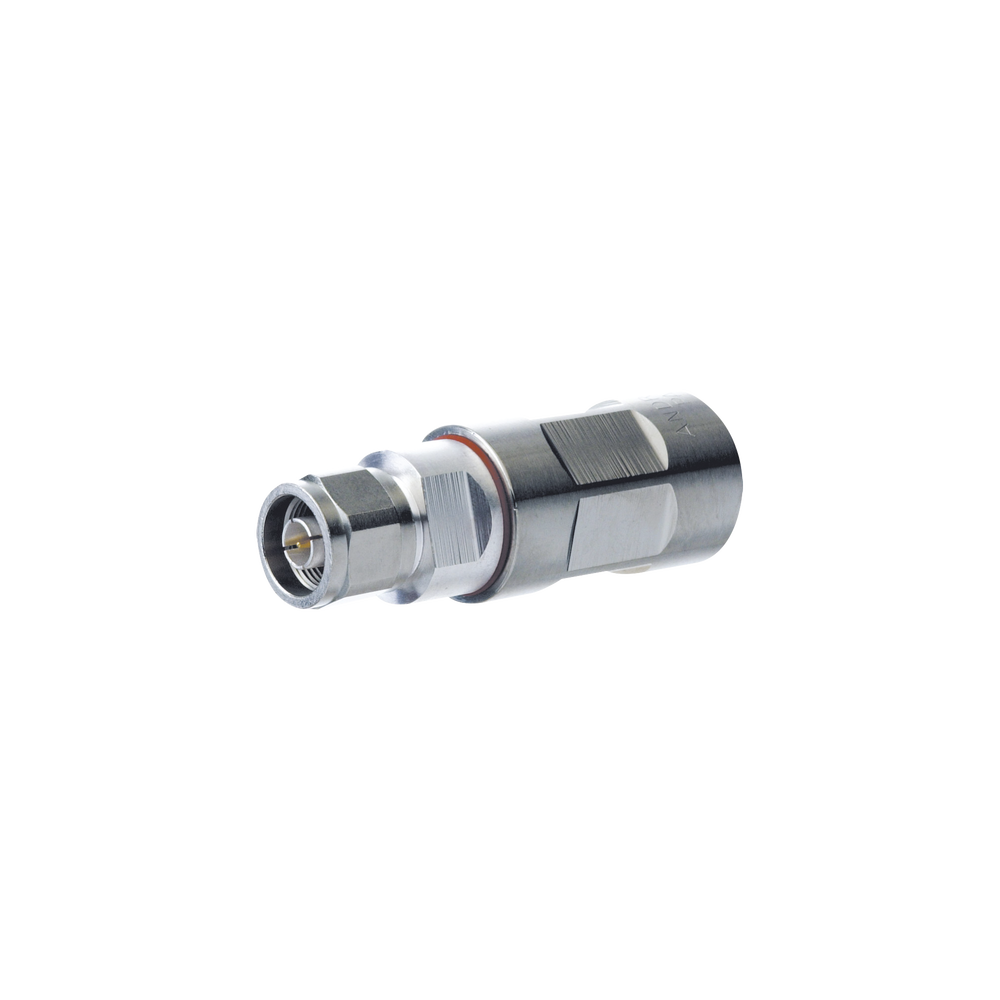

N Male Connector for Heliax Cable 5/8" LDF4.5-50

N Male Connector for Heliax Cable 5/8" LDF4.5-50

Electrical Specifications

• 5/8' LFD4.5-50 cable pear.
• Connector impedance 50 ohm.
• Operating frequency 0 – 6100 MHz.
• Cable impedance 50 ohm RF.
• Operating voltage, maximum (vrms) 707.00 V.
• Test voltage DC 2000 V.
• External resistance, maximum 0.30 mOhm.
• Internal resistance, maximum 2.00 mOhm.
• Insulation resistance, minimum 5000 MOhm.
• Average power 0.6 kW @ 900 MHz.
• Maximum power 40.00 kW.
• Incision loss, typical 0.05 dB.
• Shielding effectiveness -110 dB.

*Ask for delivery time.
