SUBMERSIBLE PUMP FOR RENEWABLE ENERGY WITH INTEGRATED INVERTER FOR SOLAR AND AC POWER SOURCES

SUBMERSIBLE PUMP FOR RENEWABLE ENERGY WITH INTEGRATED INVERTER FOR SOLAR AND AC POWER SOURCES

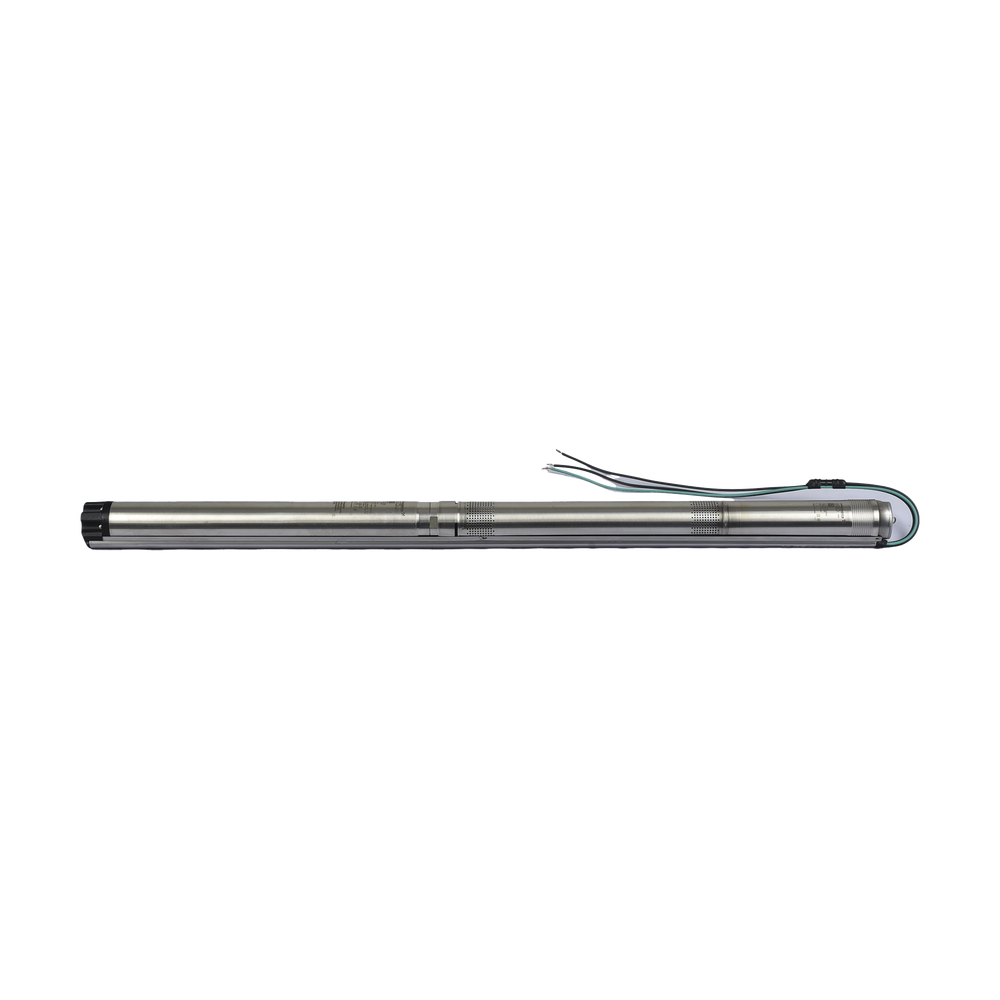

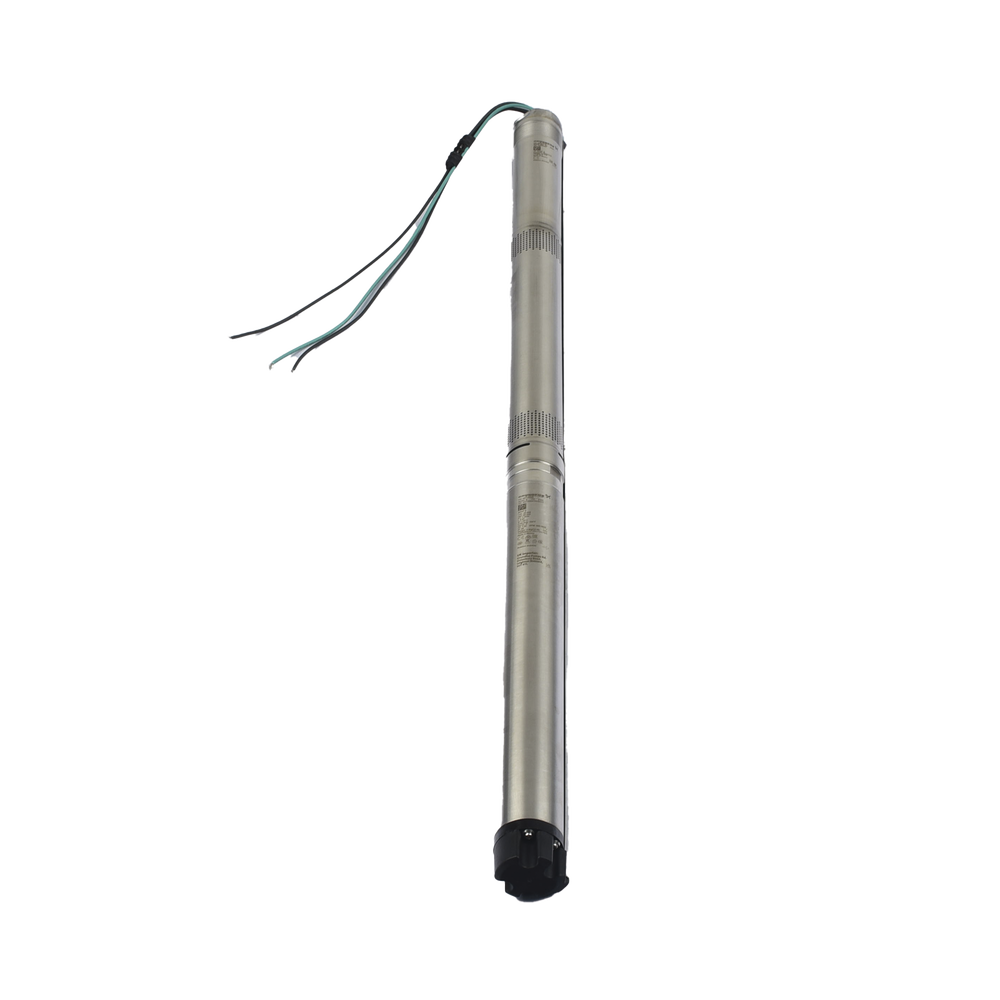

The SQFlex 3' propeller pump is suitable for high heads and low flow rates. The SQFlex system is a reliable water supply system based on renewable energy sources such as solar and wind power. Thanks to its flexible power supply and performance, the SQFlex system can be combined and adapted to meet any installation site requirement.

The SQFlex system features a wide voltage range, maximum power point tracking (MPPT), and dry-running, voltage, and overload protection.

ELECTRICAL DATA:

Engine type: MSF3

Input power - P1: 1.4 kW

AC nominal voltage: 1 x 90-240 V

DC nominal voltage: 30-300 V

Nominal intensity: 8.4 A

Power factor: 1.0

Nominal speed: 3600 rpm

Boot type: direct

Protection level (IEC 34-5): IP68

Insulation class (IEC 85): F

Cable length: 2 m

Engine No.: 98163731

Udc: 300 V

30 V
