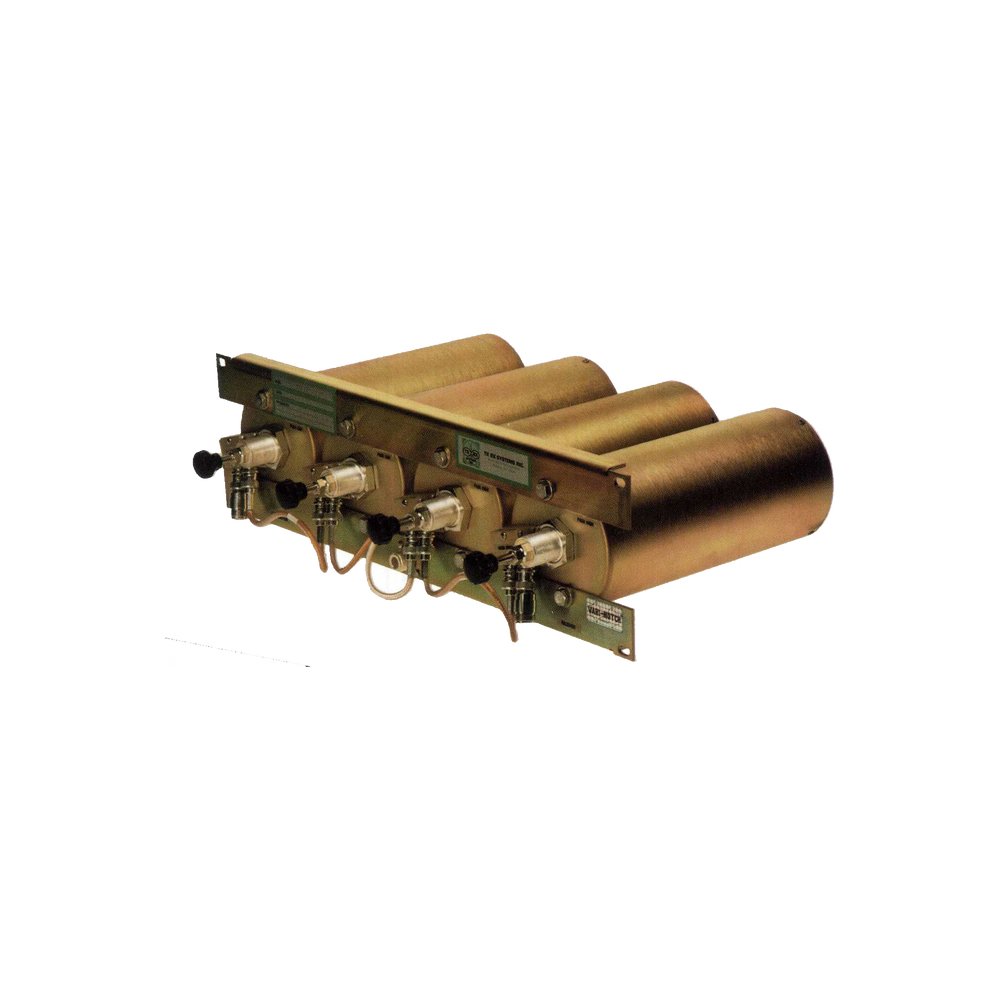

Bandpass-Band Reject Duplexer, 442-450 MHz, 4 Cavities (4" Dia.) 5 MHz, 350 Watt, N Hem.

Bandpass-Band Reject Duplexer, 442-450 MHz, 4 Cavities (4" Dia.) 5 MHz, 350 Watt, N Hem.

Duplexer TX/RX, 442-450 MHz, 5 MHz Separation, 350 Watt.

• High performance with Vari-Notch technology and optimized insulation specifications.
• Frequency Range: 442-450 MHz.
• Mounting Type: 19 in. Rack
• Number of Cavities: 4 (101.6 mm diameter) .
• Input Power: 350 Watt.
• Minimum Tx-Rx Separation: 5 MHz.
• Insertion Loss: 0.6 dB.
• Isolation: 100 dB.
• VSWR: 1.3:1
• Connectors: Standard BNC (Includes BNC Male-N Female adapters).
• Temperature range -40ºC @ +80ºC
• Dimensions: 5.25' (133.4 mm) high X 12' (305 mm) deep.
• Applications in small spaces offer the best cost-benefit

*Ask for Delivery Time.
