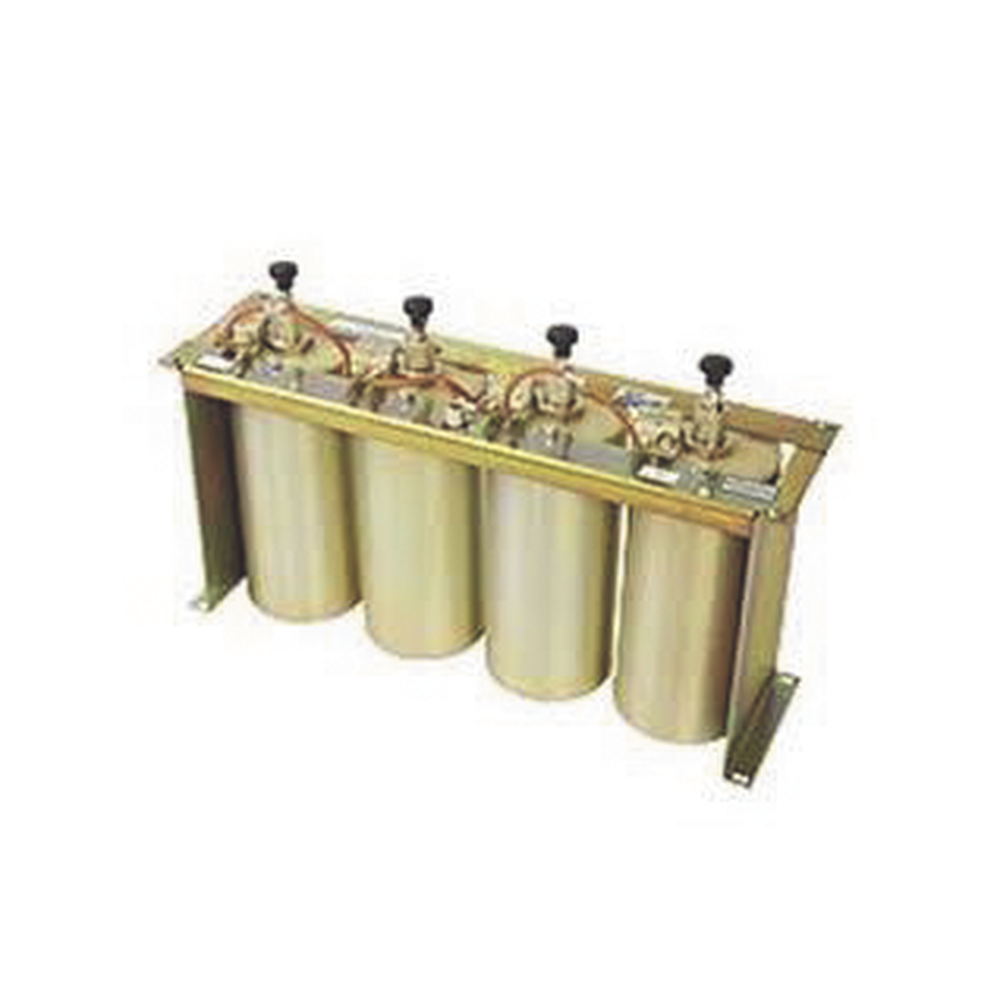

Bandpass-Band Reject Duplexer, 450-470 MHz, 4Cav.(4"Dia.) 5 MHz, 350 Watt, BNC Females.

Bandpass-Band Reject Duplexer, 450-470 MHz, 4Cav.(4"Dia.) 5 MHz, 350 Watt, BNC Females.

Bandpass-Band Reject Duplexer, 450-470 MHz, BNC Females.

• Vari-Notch technology that optimizes insulation specifications.
• Frequency Band: 450-470 MHz.
• TX-RX separation: 5 MHz.
• Insertion loss: 0.6 dB.
• Isolation: 100 dB.
• Power: 350 W.
• Designed for 19' rack mounting.
• Temperature range: -40 to 80ºC.
• Cavities: 4 (4' Diameter).
• Connectors: BNC Female (Includes BNC Male to N Female adapters).
• Dimensions (Height x Width x Depth): 133 x 483 x 305 mm.
