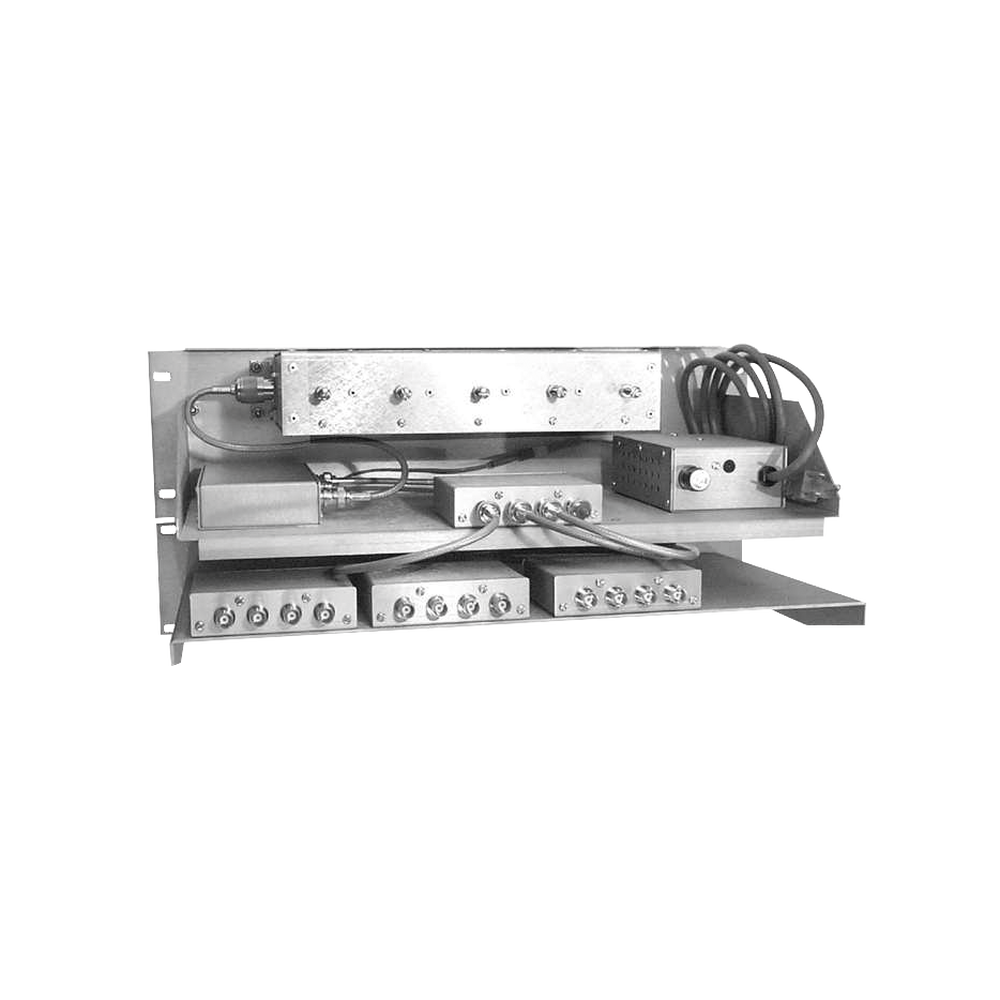

Multicoupler with Preselector 300-512 MHz, 12 Channels, 3-10 MHz, N Females.

Multicoupler with Preselector 300-512 MHz, 12 Channels, 3-10 MHz, N Females.

Multicoupler with Preselector 300-512 MHz, 12 Channels, 3-10 MHz, N Females.

• Frequency Range: 300-512 MHz.
• Number of Channels: 9-12.
• Bandwidth: 3-10 MHz.
• Number of Resonators: 5.
• Rx-Rx isolation: +23 dB.
• System Voltage: 115 Vac.
• Amplifier Gain: +20 dB.
• Amplifier Type: E-pHEMPT.
• Amplifier Noise Figure: 3.0 dB.
• 3rd Order Amplifier IP: +42 dBm.
• Compression at 1 dB Amplifier: +21 dBm.
• Amplifier Bias Voltage: 13.6 Vdc.
• Amplifier Consumption Current: 200 mA.
• System NF (Typical): 5 dB.
• Nominal Impedance: 50 Ohm.
• Max VSWR @ Resonance: 1.25:1
• Temperature Range: -30ºC to +60ºC.
• Dimensions (Height x Width x Depth): 223 x 483 x 254 mm.
• Connectors (Input/Output): N/N Females.
• Weight for Packaging: 6.9 kg.

* Ask for Delivery Time.
