RF Sampler Element with Variable Output Attenuation from 35 to 80 dB, 20-1000 MHz, 1000 W max. (Connectors not included).

RF Sampler Element with Variable Output Attenuation from 35 to 80 dB, 20-1000 MHz, 1000 W max. (Connectors not included).

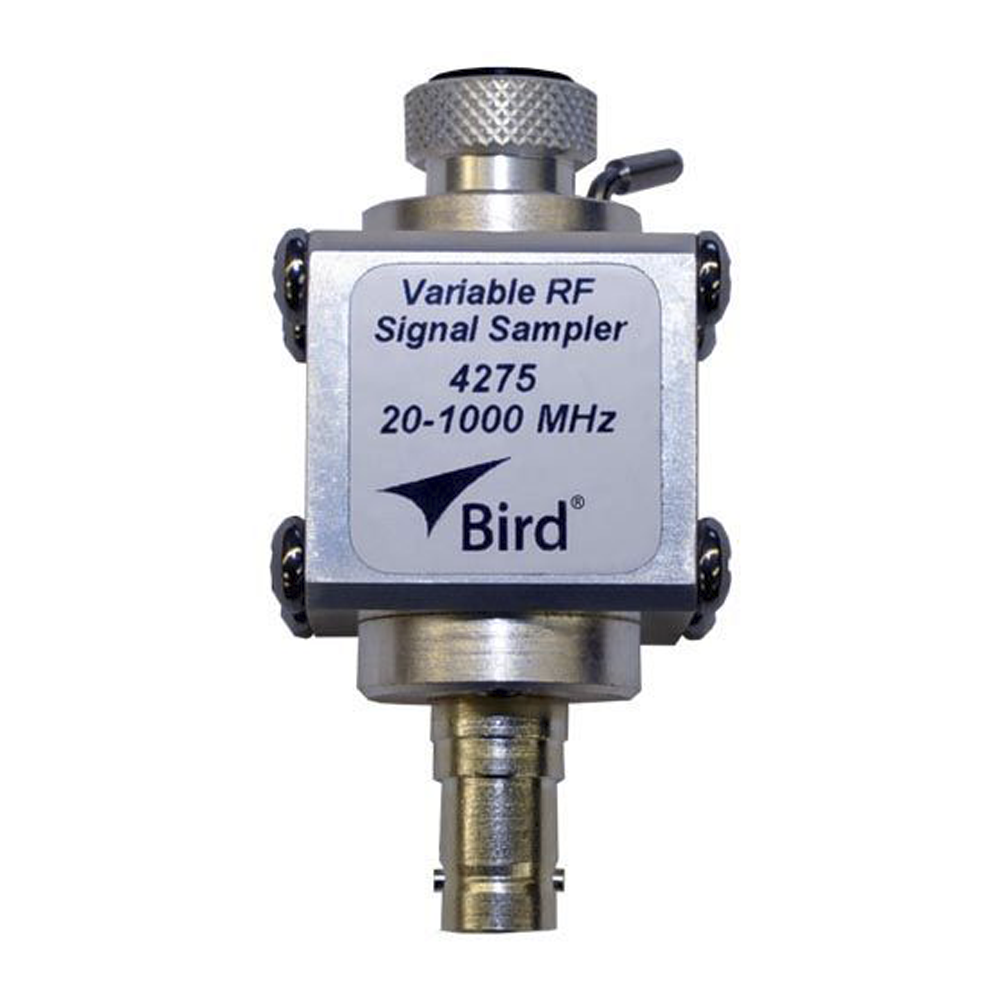

Sampling Element with Variable Output from 35 to 80 dB.

• The Model 4275 provides an unrectified signal sample for observation on spectrum analyzers, oscilloscopes, and frequency counters.
• The connectors (Not included) are of the QC type (Interchangeable) and you can order them in female gender of the BNC, N, UHF (SO-239), TNC, Mini-UHF, etc. type.
• Frequency Range: 20-1000 MHz.
• Max. power: 1 kW.
• Attenuation Range: 35 to 80 dB.
• Insertion VSWR: 1.1 max. (2-512 MHz); 1.25 max. (512-1000 MHz).
• Insertion Loss: 0.1 dB max. ( 2-512 MHz); 0.2 dB max. (512-1000 MHz).
