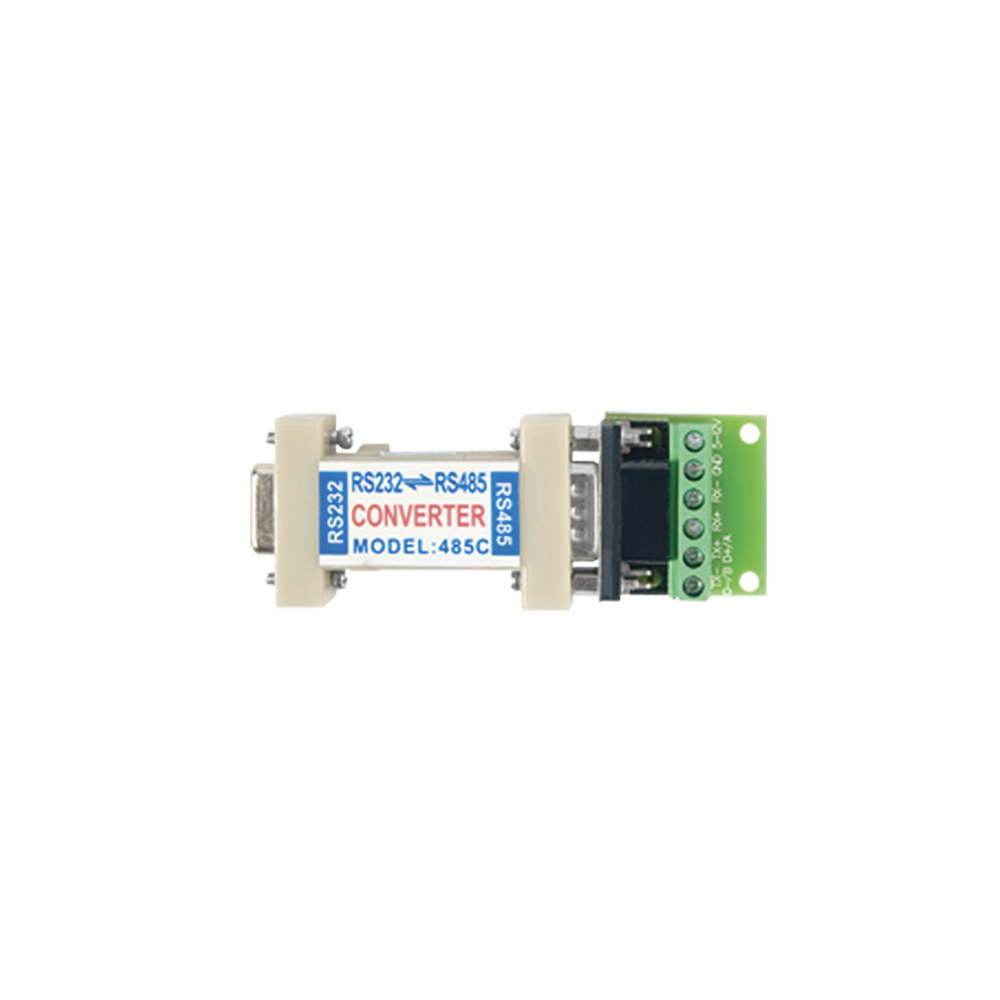

RS232 to RS485 converter (generic). Required for connecting multiple VERYPASSFX devices.

RS232 to RS485 converter (generic). Required for connecting multiple VERYPASSFX devices.

The RS232-RS485 converter is designed to convert signals between an RS232 interface and an RS485 interface. It is often used for CCTV, ACCESS CONTROL and industrial applications. In 2-wire “Half-Duplex” (RS485) mode, the converter can control the direction of transmission on the bus by means of the data flow. In this case, the converter will automatically determine the bus reversal based on the direction of the data being transmitted. This way, it can be used to connect equipment where management is not done by flow control. The maximum data flow rate is 115.2Kbit/s.

APPLICATIONS:

• CCTV
• Access Control.

SPECIFICATIONS:

• Data Transfer Range: 300-115200bps.
• Operating Distance: 1200m via RS485, 5m via RS232
• Power: Not Required, uses TD as power source.
• Ambient temperature: -10C°C to 85C°C, 5% to 95% RH
• Interface: Compatible with EIA/TIA RS-232C standard and RS-485 standard.
• Working mode: Asynchronous, half-duplex, differential transmission.
• Transmission Medium: Unshielded twisted pair UTP or shielded FTP.
• Dimensions: 95mm x 34mm x 18mm
• Weight: 36 grs.
