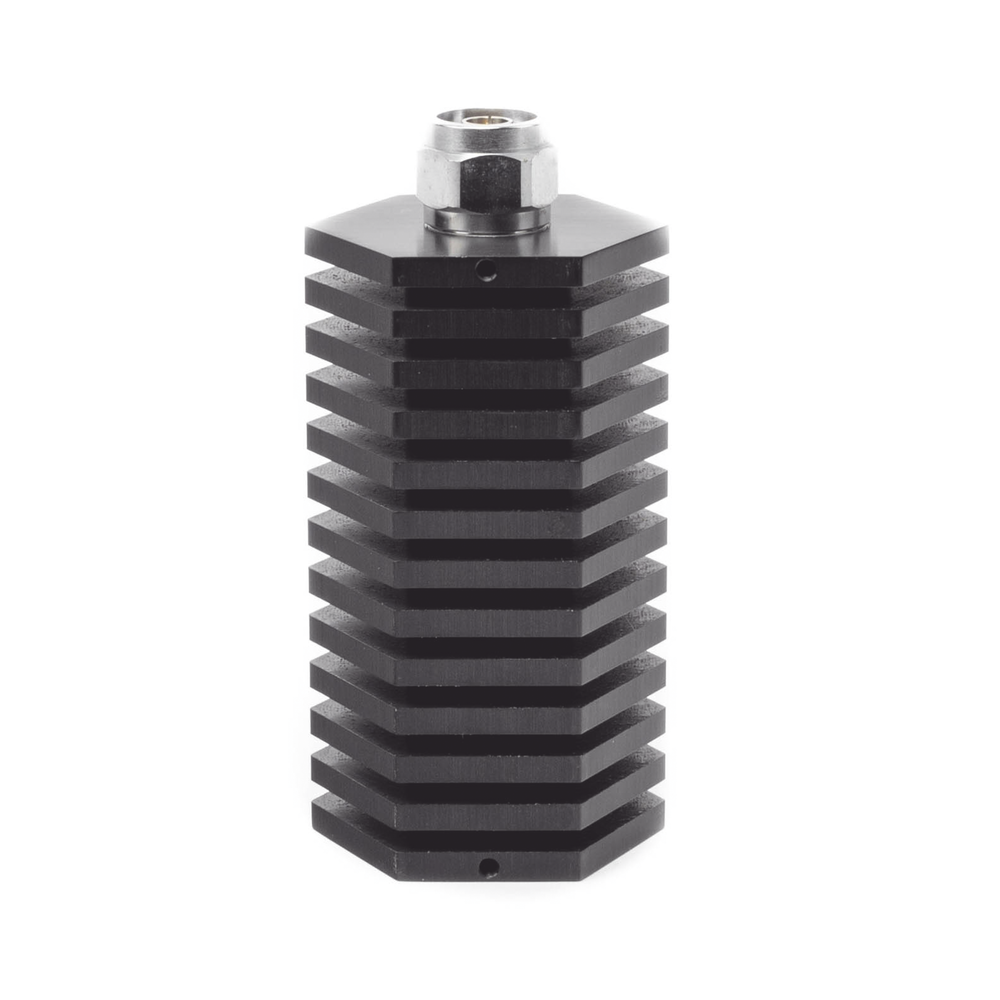

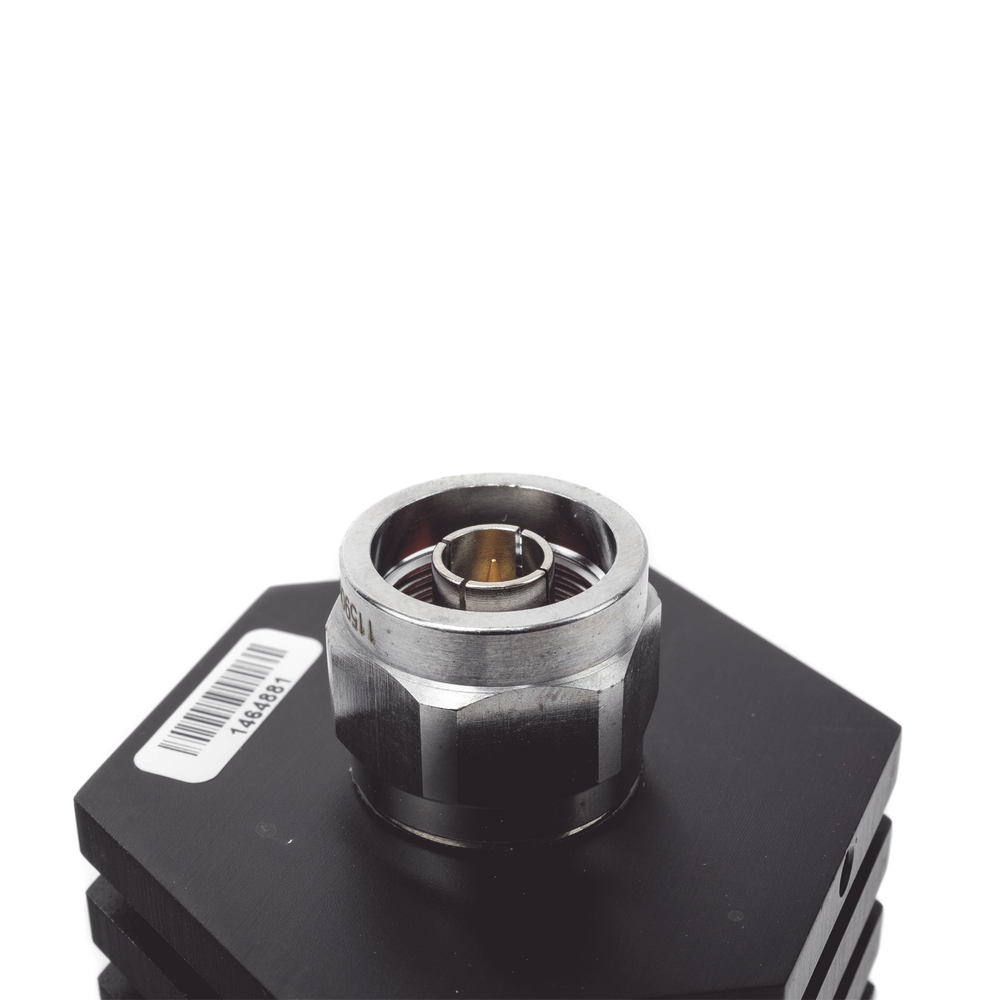

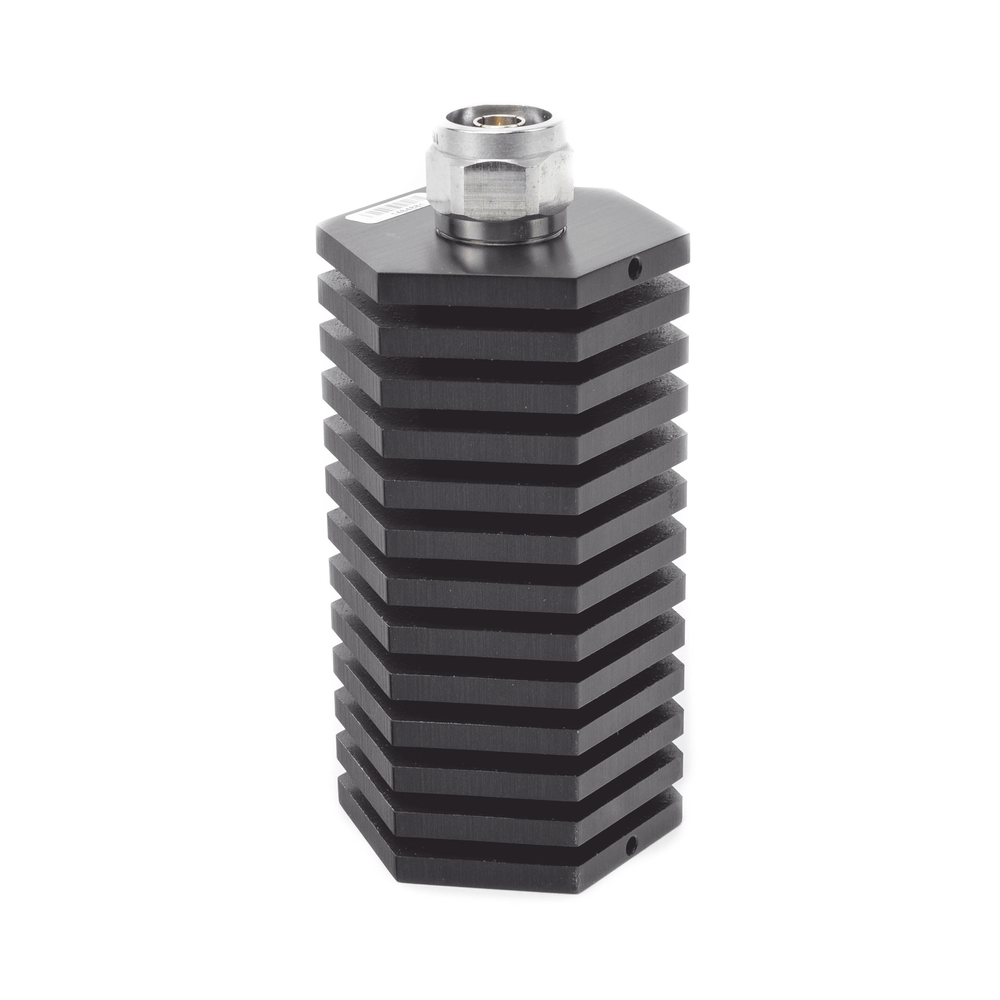

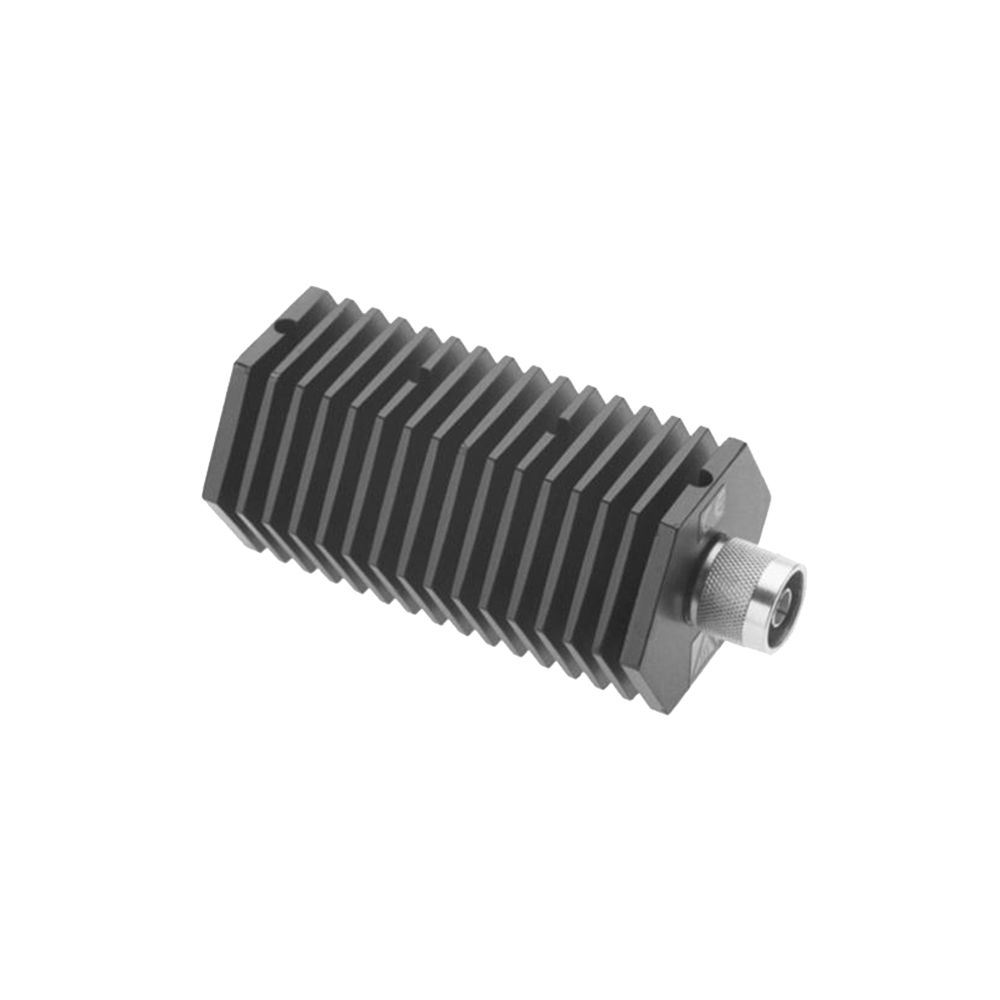

Terminal Phantom Load for 50 Watt with 50 Ohm Impedance, N Male Connector.

Terminal Phantom Load for 50 Watt with 50 Ohm Impedance, N Male Connector.

50W Terminal Phantom Load. 50 Ohm Impedance, N Male Connector.

• Power range: 50 Watt.
• Frequency Range & VSWR: DC to 1 GHz @1.10:1 Max.
  1 GHz to 4 GHz @ 1.25:1 Max.
• Operational temperature: -40 to +40 °C
• Product Type: Surrounding air cooling.
• Operating position: Any.
• Structure: Aluminum.
• Connectors: N, BNC, TNC, SMA, 7/16 DIN, MD
• Structural finish: anodized black, silver or three alloy silver connectors.
• Dimensions: With N type connector: 4.7” long x 2.3” diameter.
  (119.4 x 58.50 mm).
• Weight: 0.52 Kg (1.13 lb)
