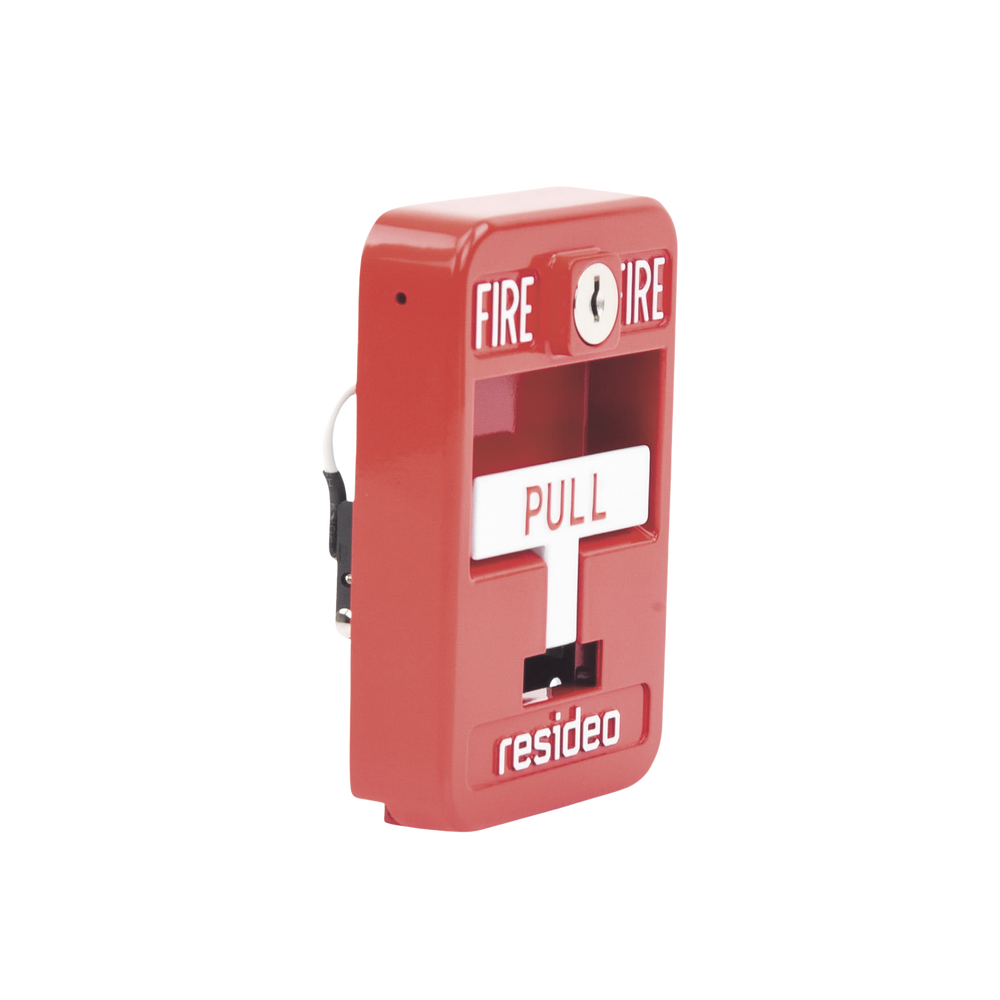

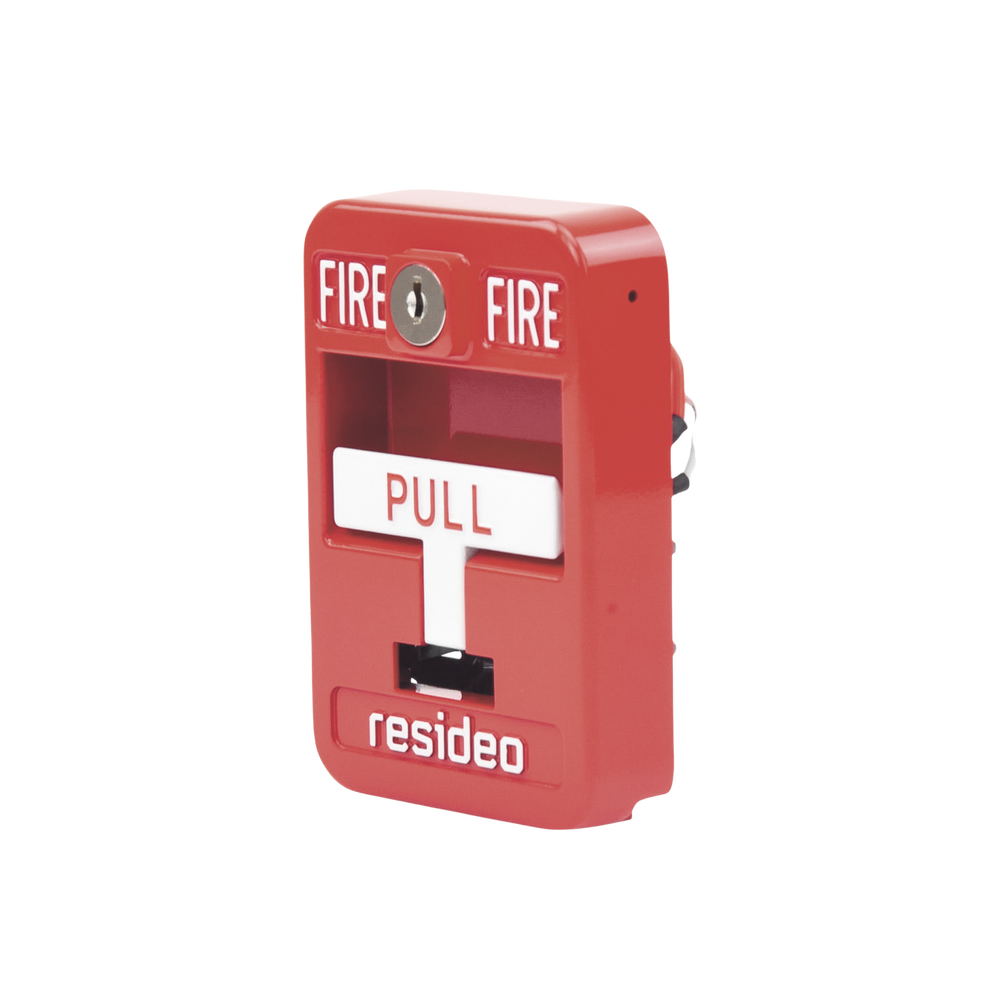

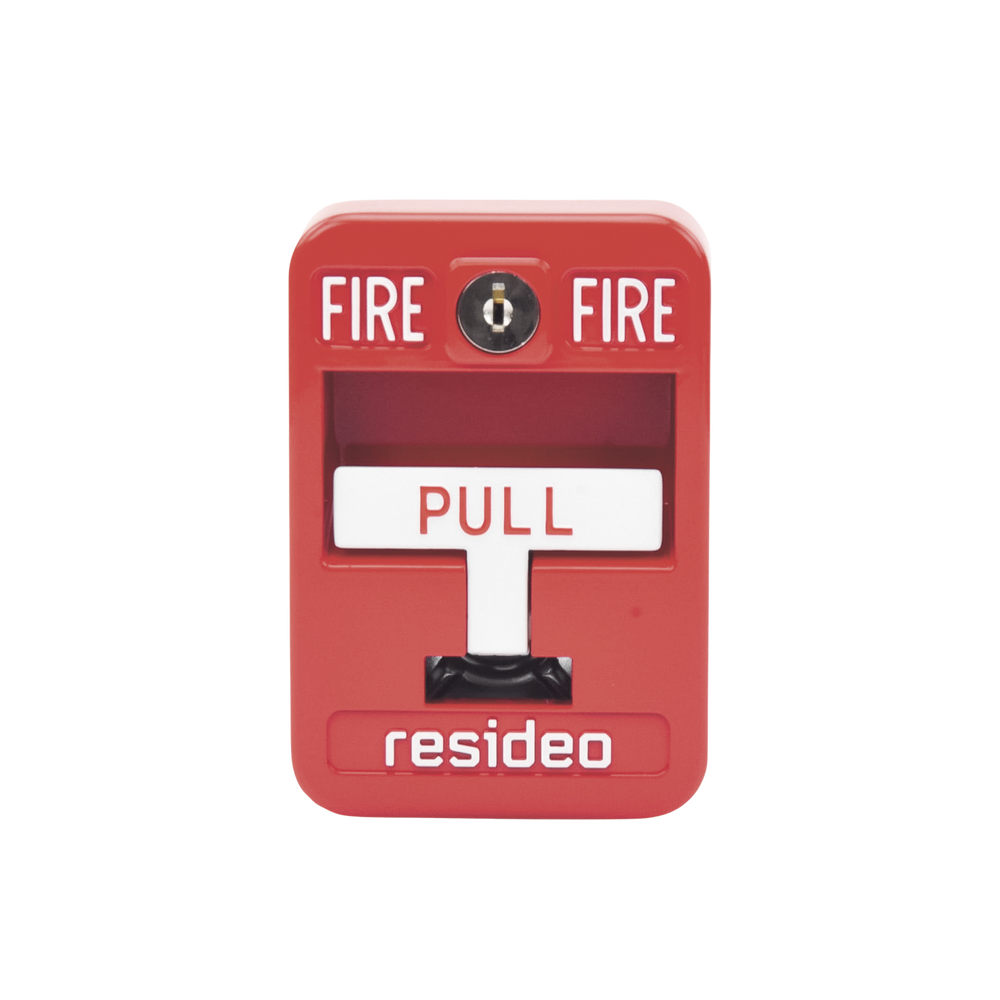

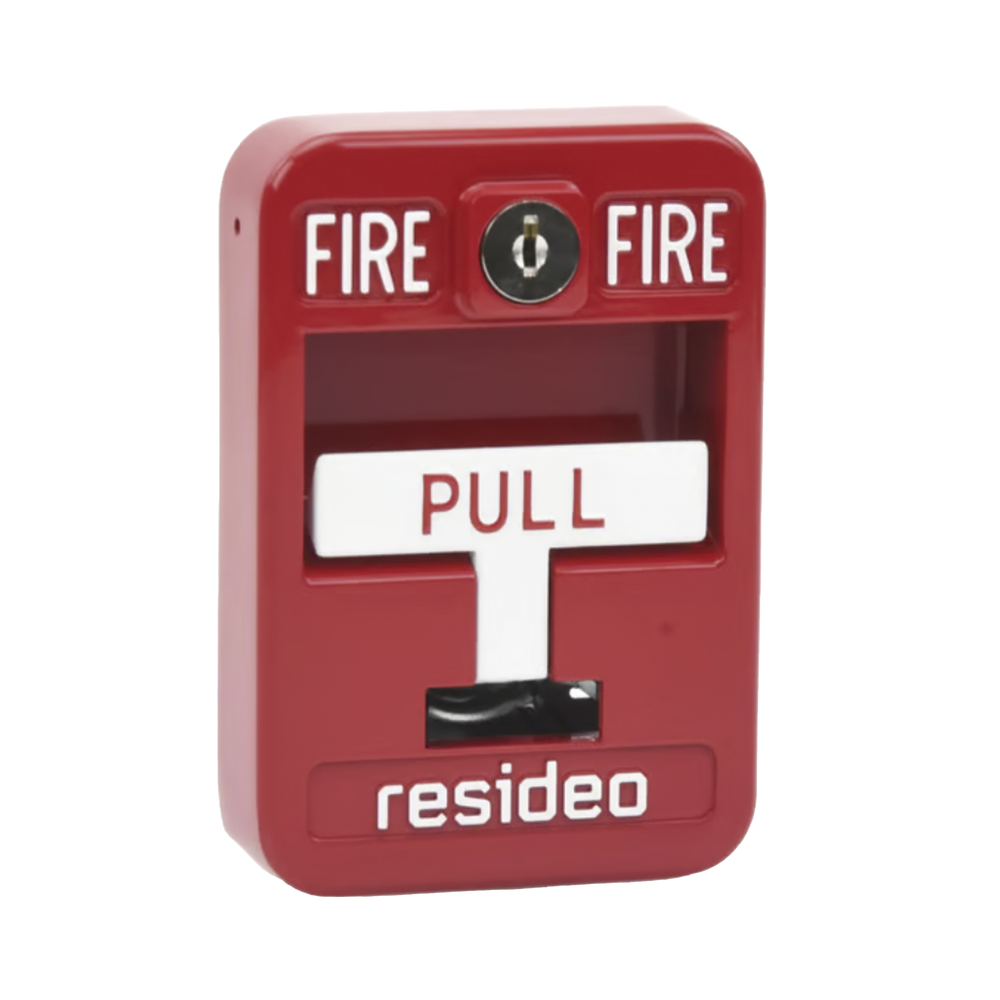

Single Action Manual Station / Conventional / Made of Aluminum Alloy / Red Color with Lock

Single Action Manual Station / Conventional / Made of Aluminum Alloy / Red Color with Lock

Characteristics:

• ADA Compliant
• Reset by key and terminal block
• High-tech, stylish design
• Cast aluminum housing
• UL List
• Output Type: N/O
• Dimensions: 4.75' H x 3.2' W x 2' D

DESCRIPTION :

This manual fire station is designed to be a non-code, single-action device for use in UL-listed fire alarm applications. The die-cast aluminum alloy housing meets ADA tensile requirements and has been tested in UL laboratories.

This station must be mounted 1.2 m above the floor for frontal wheelchair access and less than 1.3 m above the floor for side wheelchair access.

The key reset function on the 5140MPS-1 is positively designed for authorized resetting. The key is designed to operate and match ADEMCO controls. The 5140MPS-1 uses a terminal block for secure terminations. It also comes with an Allen hex fitting and is equipped with cables.
