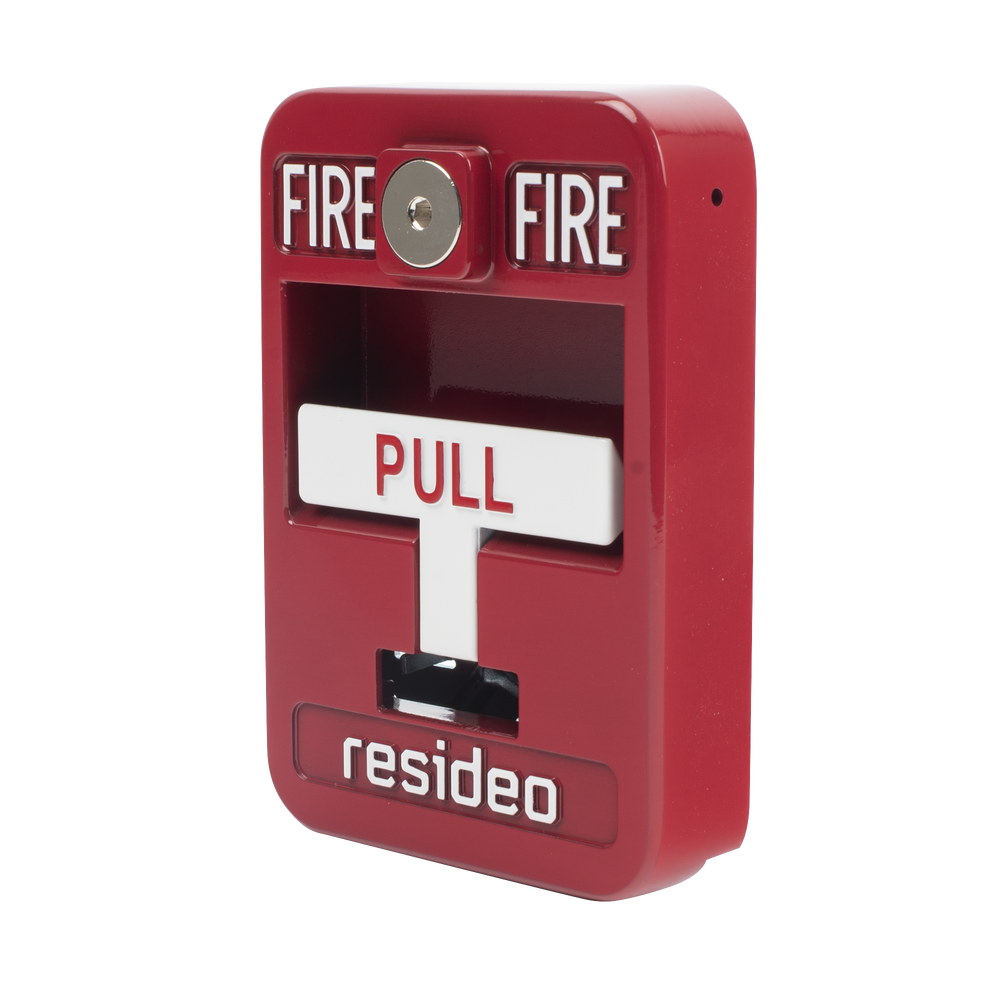

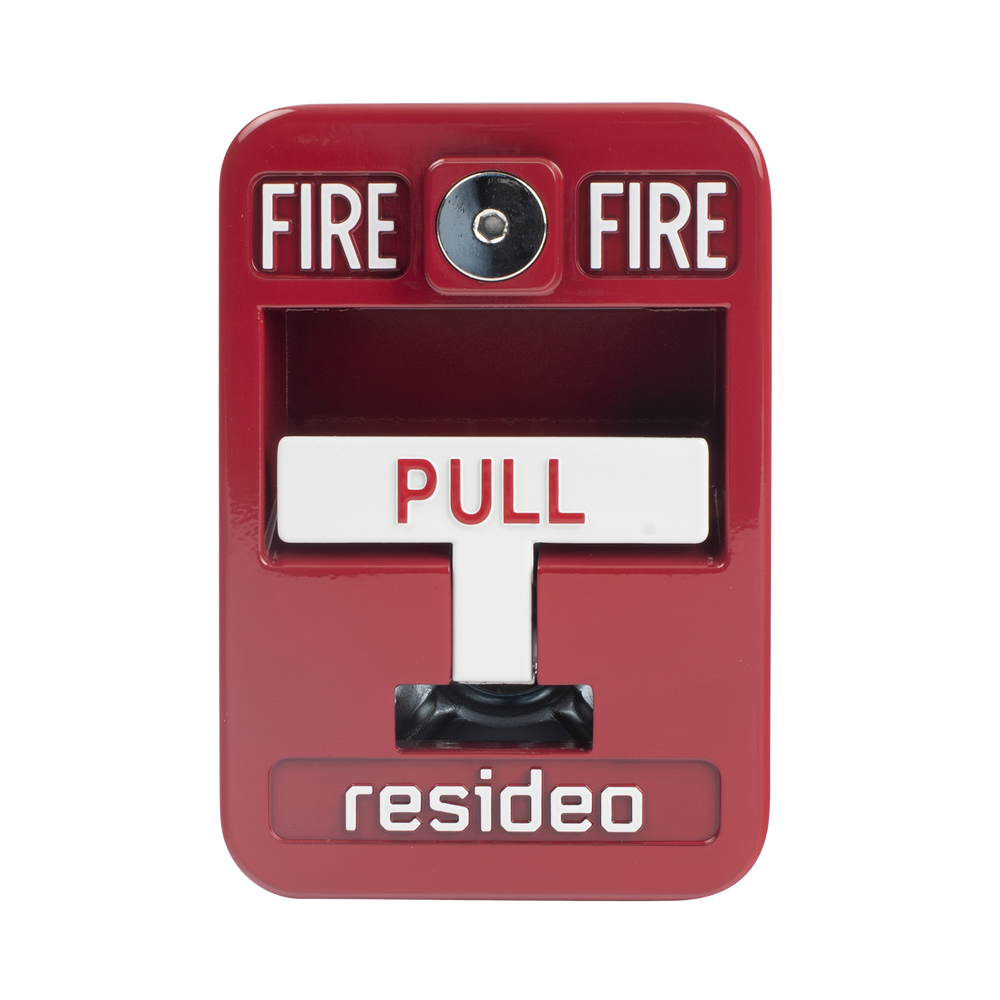

Red single-action conventional pull station

Red single-action conventional pull station

• Reset with Allen key or included wrench

• Output type: N/O

• Meets ADA requirements

• Die-cast aluminum alloy housing (ADA Requirement)

• High-tech, stylish design

• UL approval

• Dimensions: 4.75" H x 3.2" W x 2" D

DESCRIPTION :

This manual fire station is designed to be a non-code, single-action device for use in UL-listed fire alarm applications. The die-cast aluminum alloy housing meets ADA tensile requirements and has been tested in UL laboratories.

This station must be mounted 1.2 m above the floor for frontal wheelchair access and less than 1.3 m above the floor for side wheelchair access.

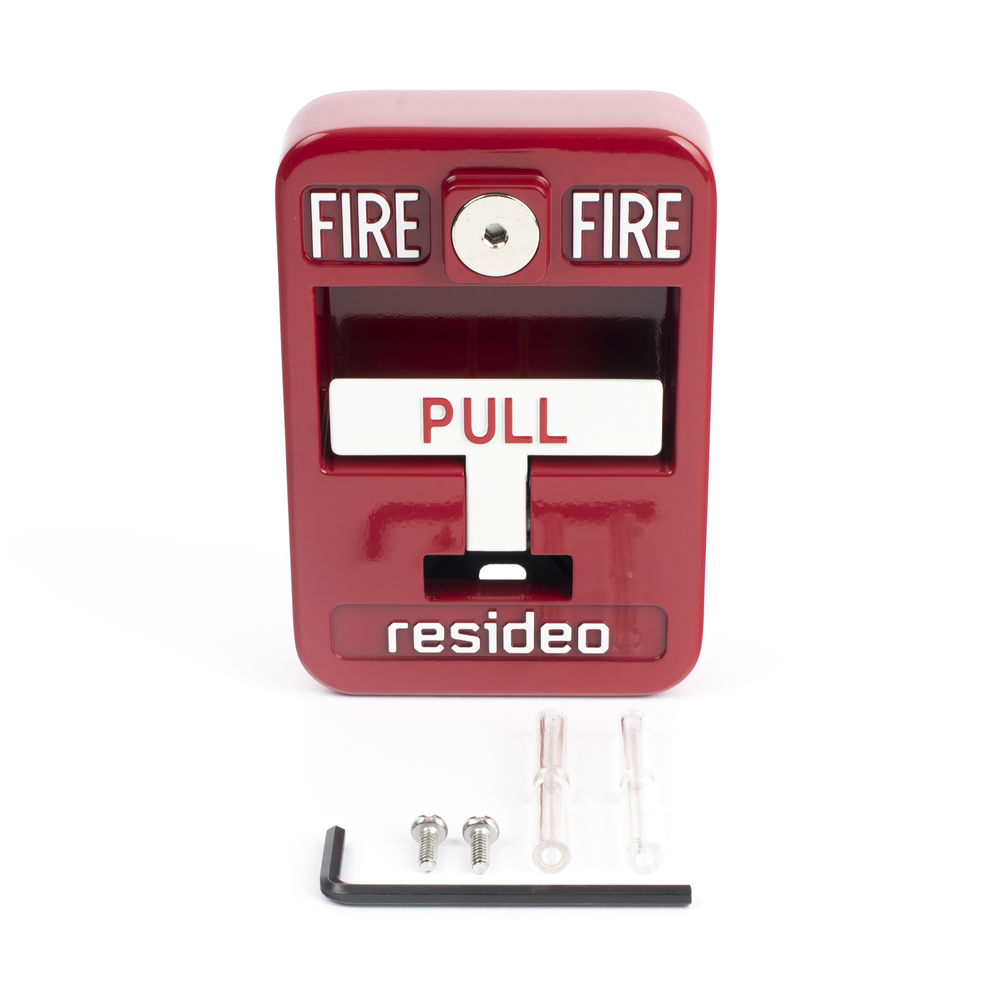

The key reset function on the 5140MPS-2 is positively designed for authorized resetting. The key is designed to operate and match ADEMCO controls. The 5140MPS-2 uses a terminal block for secure terminations. It also comes with an Allen hex fitting and is equipped with cables.
