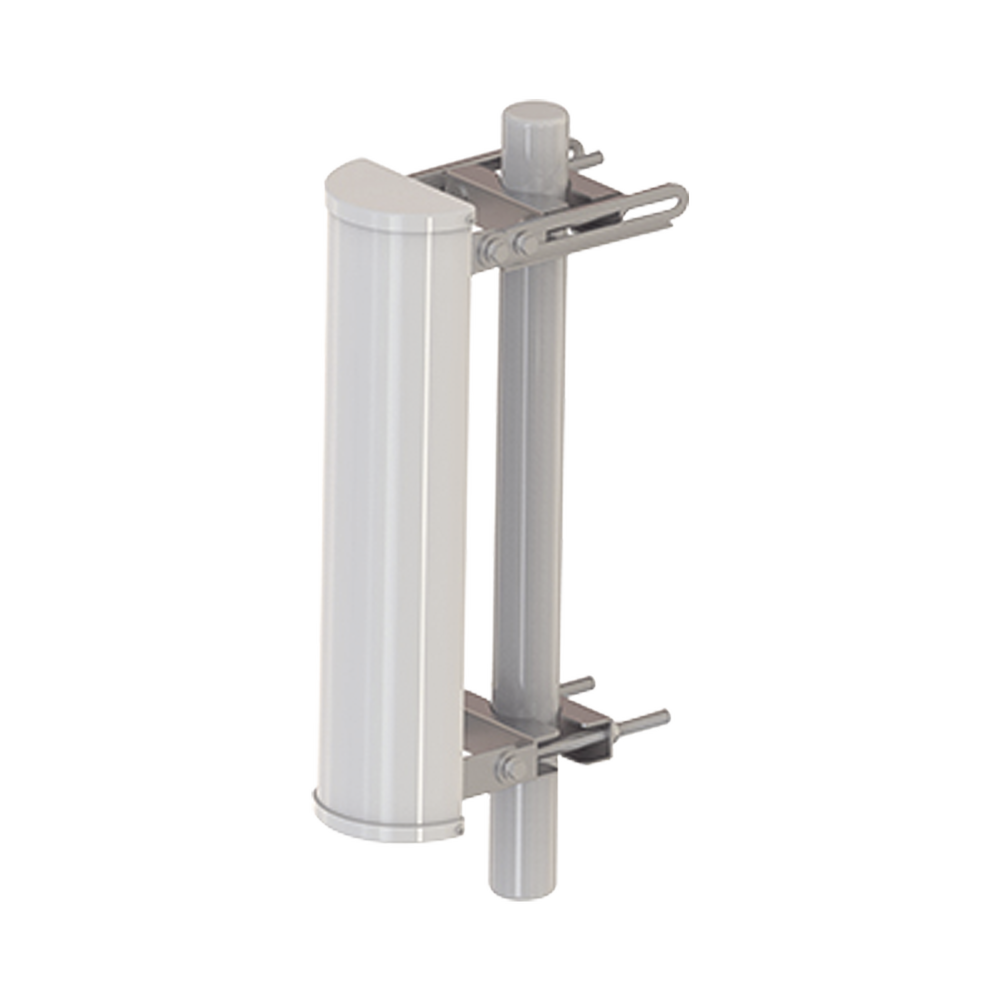

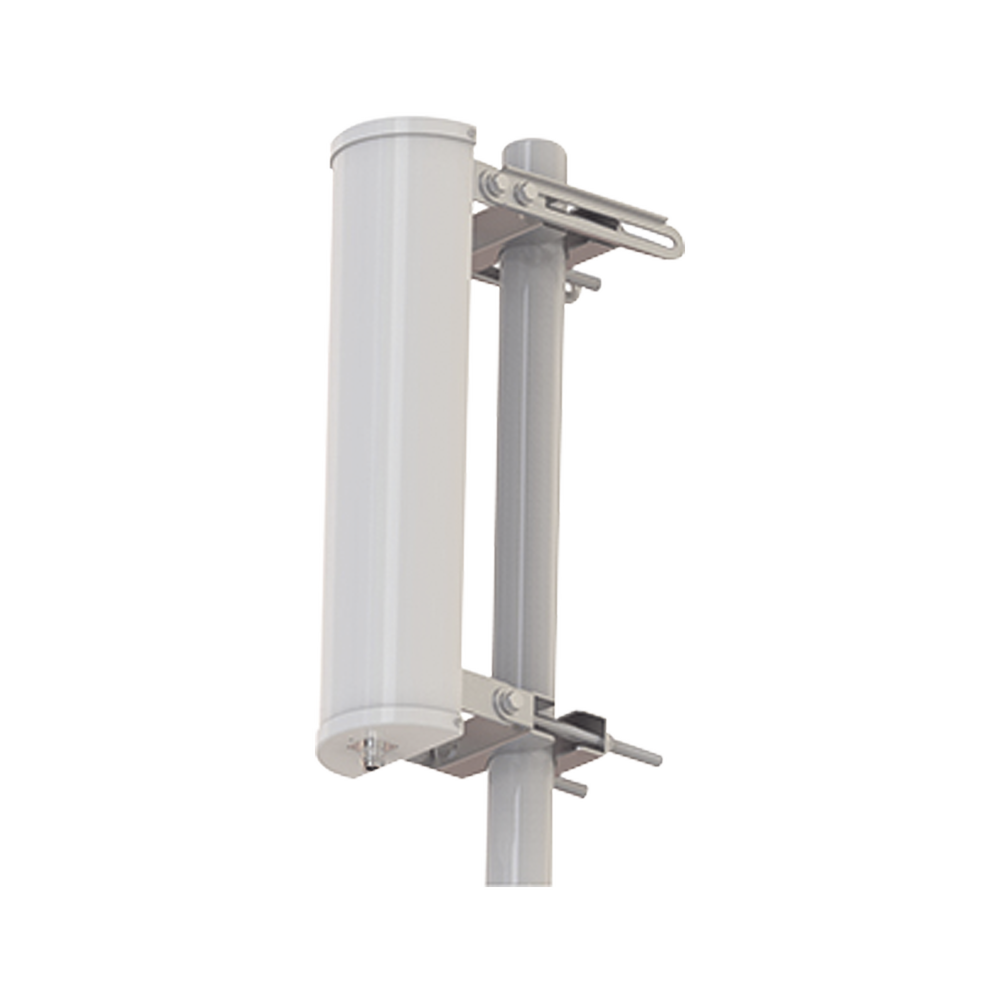

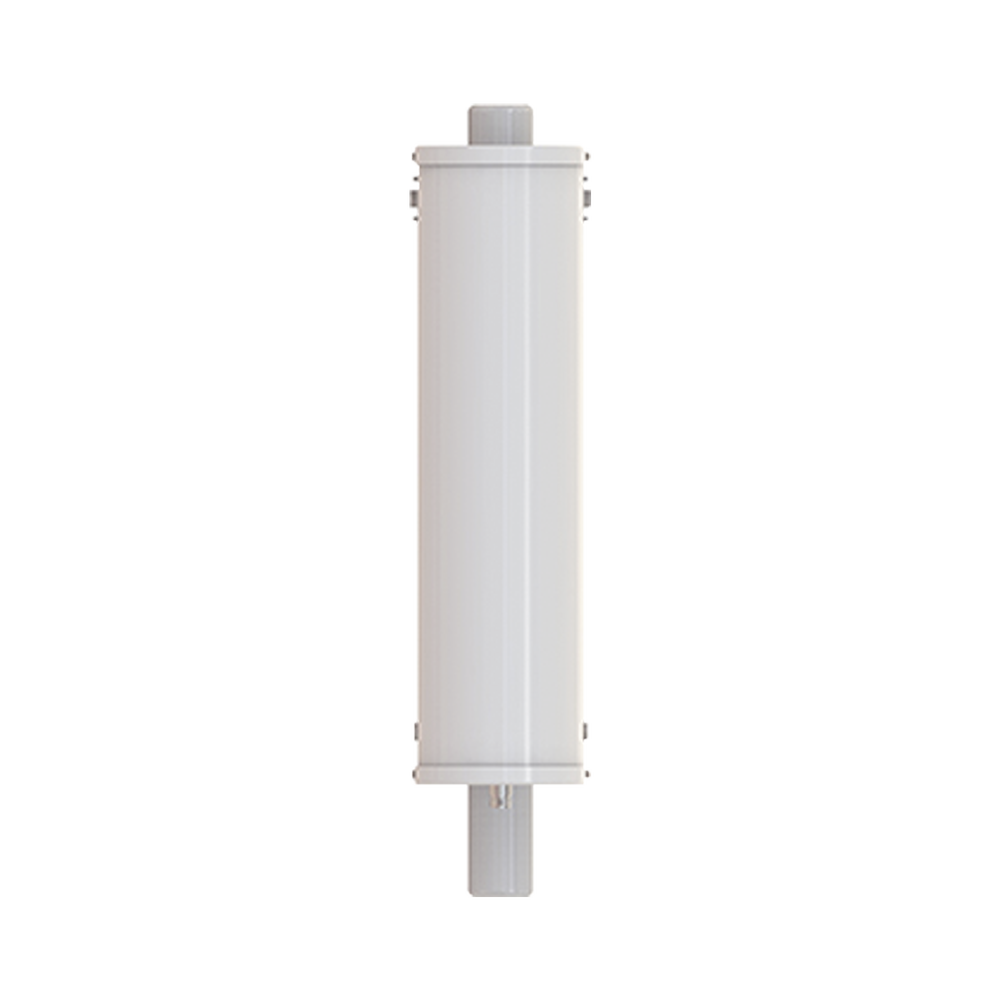

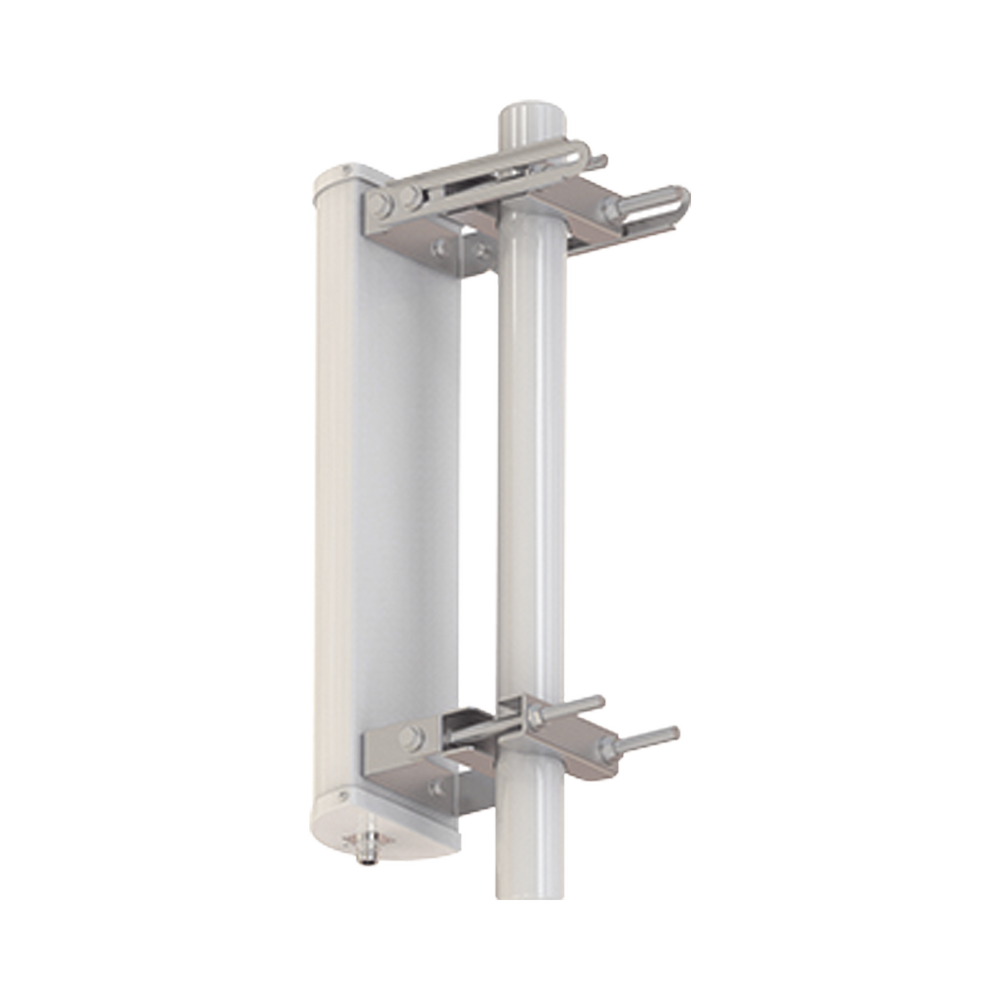

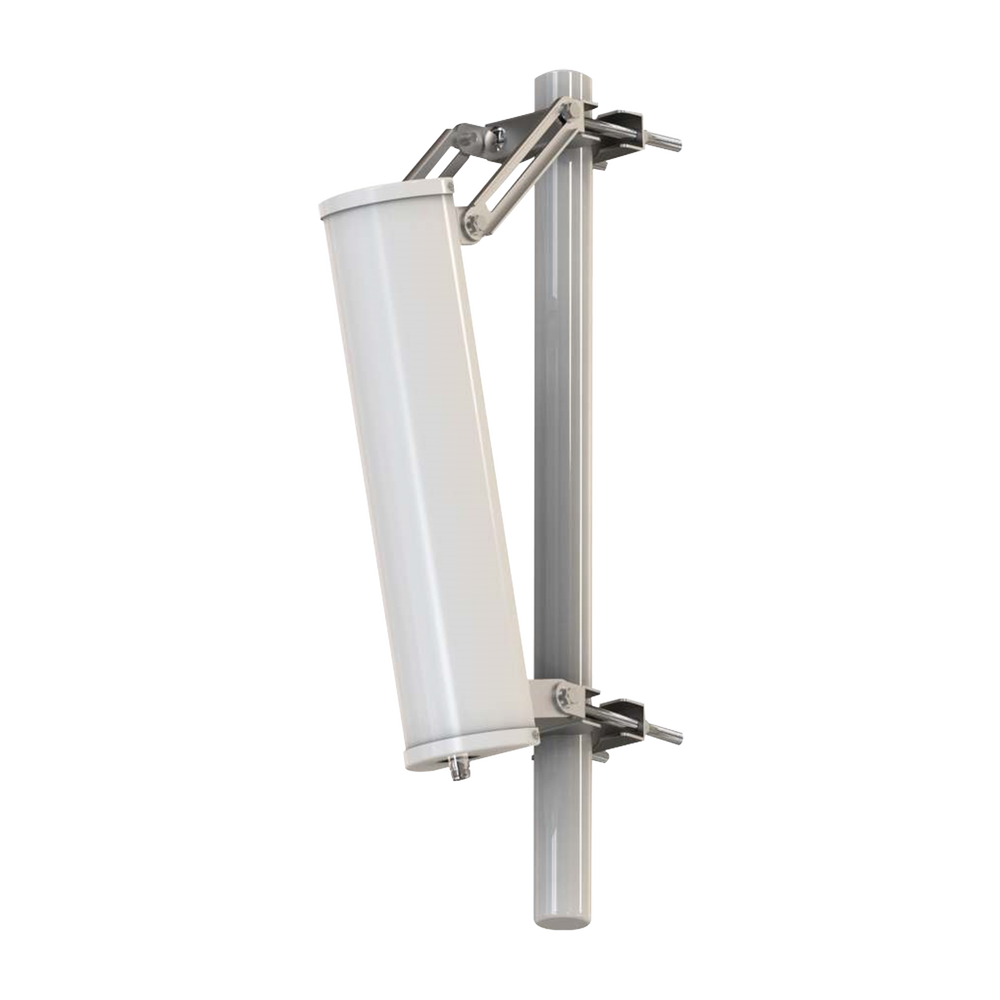

120º Sector Antenna, (5.1 - 5.8 GHz), Gain (15 dBi), Includes tower or mast mount.

120º Sector Antenna, (5.1 - 5.8 GHz), Gain (15 dBi), Includes tower or mast mount.

High coverage at 120º, designed for outdoor use with mounting included.

Specs

Frequency from 5.1 to 5.8 GHz

15 dBi gain

VSWR <1.5:1

Vertical Polarity

Horizontal beam width 120º

Vertical beam width 7º

Impedance of 5 ohm

F/B: 25 dB

Max power current 100 W

Mechanical Specifications

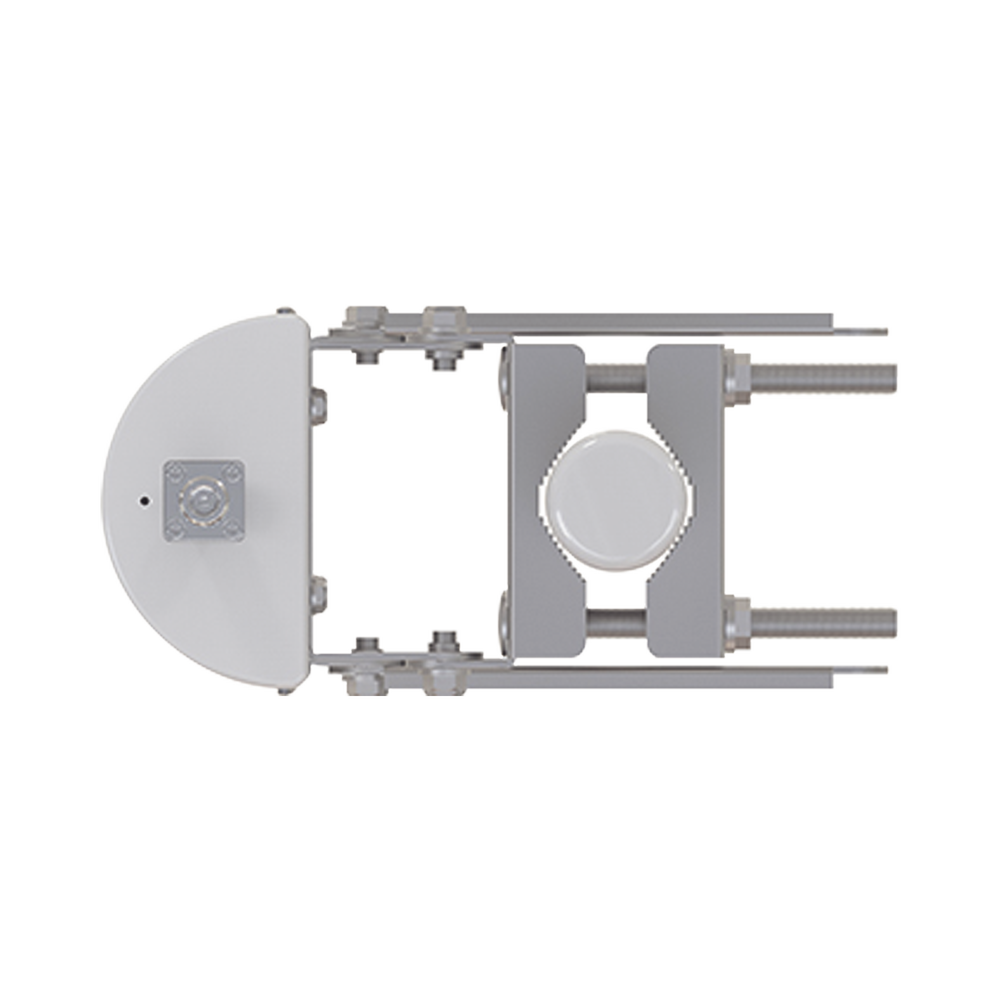

Connector: N-Female.

Dimensions: 516*66*119 mm.

Weight: 2.8 kg.

Radome material: UV resistant PVC.

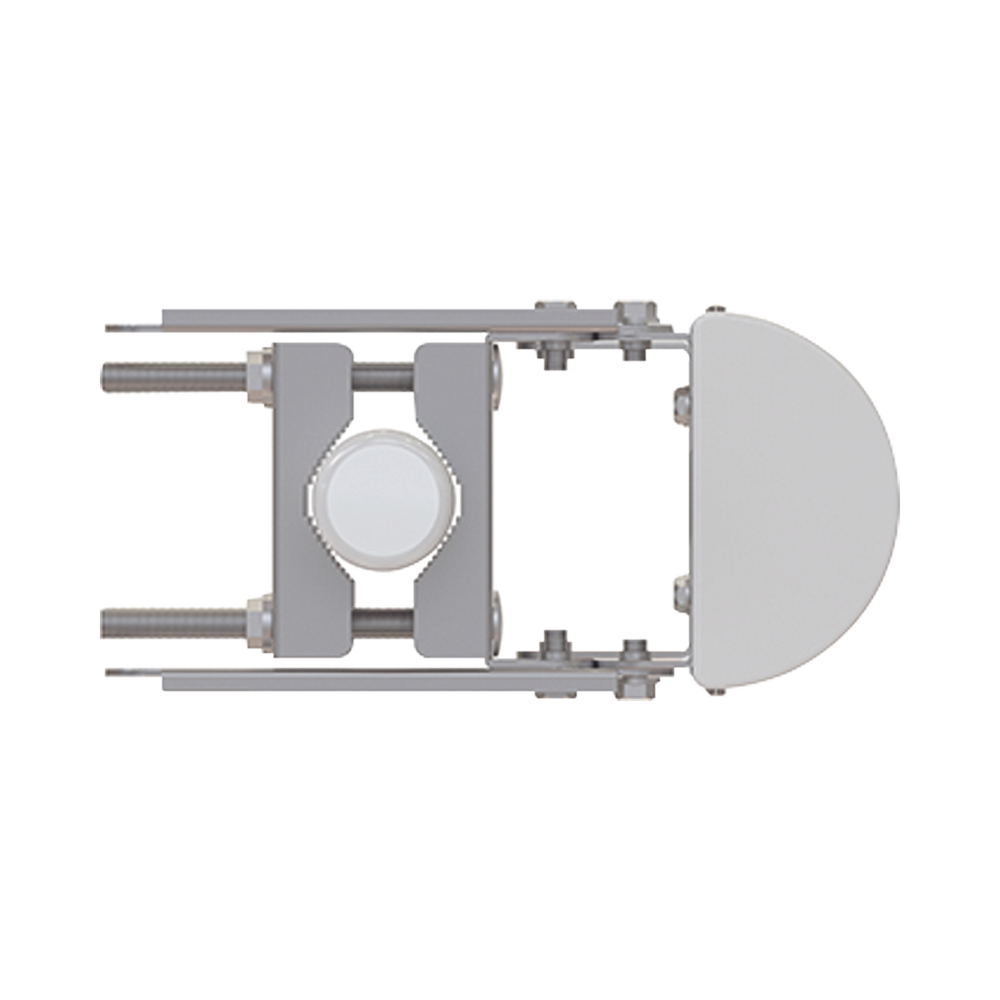

Installation method: mast or tower.

Diameter of the mast or tower: 4 to 7 cm

Wind resistance: 210 km/h

Operational temperature: -40º to 65º

Compatibility with RBGROOVEA-52HPN, B-DB-AC, RBGROOVEGA-52HPACN radios
