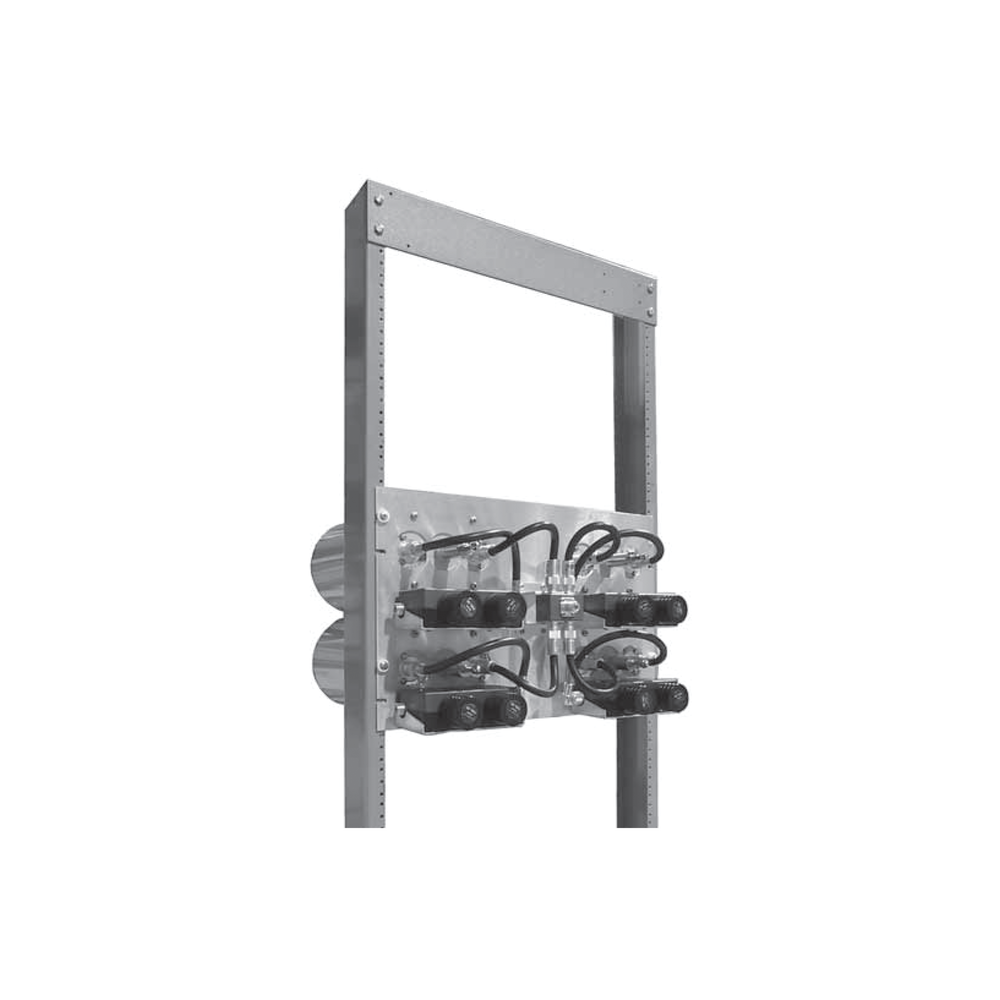

19" Rack Panel Combiner 851-869 MHz, 4 Channels (6" Diam.) 500 kHz, 100 Watt, N Females.

19" Rack Panel Combiner 851-869 MHz, 4 Channels (6" Diam.) 500 kHz, 100 Watt, N Females.

      19' Rack Panel Combiner, 851-869 MHz, 4 Channels, 500 kHz, 100 Watt.

• Frequency range: 851-869 MHz.
• Number of Channels: 4 (6' Diameter, 1/4 Wave).
• The Rack and Panel for Power Monitoring are Optional.
• Channel Separation (min.): 500 kHz.
• Input Power (max): 100 Watt per Channel.
• Input Impedance / VSWR (typical): 50 Ohm / 1.25:1
• Insertion Loss per Channel: 2 dB @ 1 MHz; 3.2 dB @ 500 kHz.
• Isolation between Tx-Tx (min.): 80 dB
• Isolation between Antenna-Tx (min.): 65 dB.
• 2nd Harmonic Suppression (typical): 90 dB.
• Operating Temperature: -30ºC to +60ºC.
• Mounting / Connectors: 19' Rack Mount / N Female.
• Panel Dimension (Height x Width x Depth): 31 x 48.3 x 43.2 cm.
• Weight: 34 kg (5 Can.)

*Ask for delivery time.
