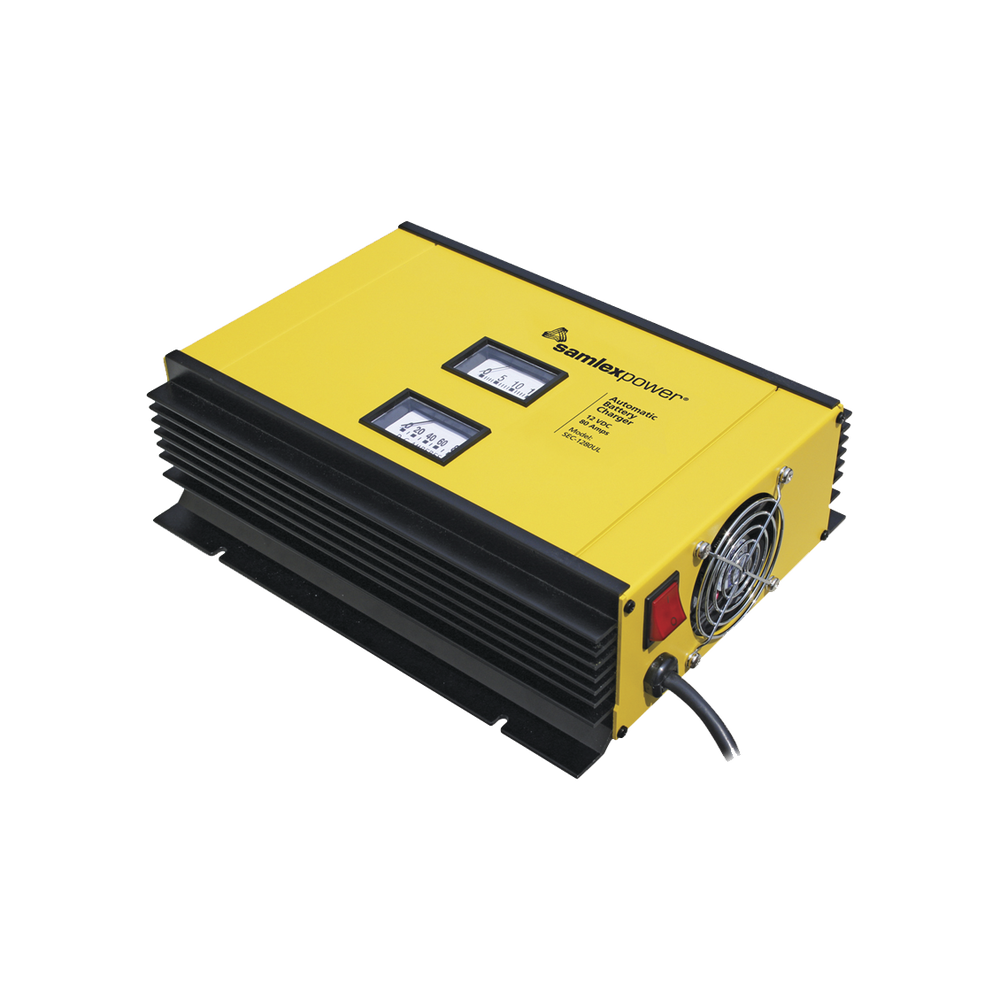

SAMLEX 12V 80AMP battery charger

SAMLEX 12V 80AMP battery charger

Design Features

• Switch mode technology for high efficiency, lightweight and quiet operation​
• Automatic operation for ALL Lead Acid Batteries Flooded, AGM or Gel Cell
• Can charge 2 banks of batteries simultaneously, no isolator necessary
• Can be used as a power supply or DC UPS when used in conjunction with a battery
• User Configurable AC Input voltage 120 or 230 VAC, 50 / 60 Hz
• User Selectable (by DIP Switch) for 2 or 3 stage, rapid and safe charging of standalone and loaded Lead Acid Batteries
• “Half Power Mode” reduces maximum charging current to half the rated capacity, allows for safe charging of lower capacity batteries
• Voltmeter and Ammeter for monitoring
• Fan cooled based on output current
• Protections: Short circuit, overload, reverse battery connection and over temperature
• Includes temperature sensor to prevent under/overcharging of battery if temperature varies extensively

• Input:120 VAC 60 Hz or 230 VAC 50 Hz
• Output: 12 VDC
• Amps: 80
• Remote Control: 900-RC
• Weight:     9 lbs (4.1 kg)
• Dimensions: 15 x 9.61 x 3.82” (381 x 244 x 97 mm)
• Safety: Intertek ETL Listed to meet UL Standard UL-1564, EMI Compliant to FCC Part 15(B), Class B

• Automotive
• Recreational vehicles
• Marine
• Communications sites
• Battery backup systems
