Unmanaged PoE Switch, 8 10/100/1000 Mbps Ports with 4 802.3af/at PoE Ports, Extender Mode Up to 250 m

Unmanaged PoE Switch, 8 10/100/1000 Mbps Ports with 4 802.3af/at PoE Ports, Extender Mode Up to 250 m

Ideal, high-performance integration solution for a small, secure IP surveillance infrastructure

PLANET GSD-804P is equipped with eight 10/100/1000BASE-T ports , four of which are 802.3at PoE+ copper interfaces.  . With a total PoE power budget of up to 60W and non-blocking data switching performance, the GSD-804P meets the demand for sufficient PoE power for HD IP surveillance. It comes with a 9-inch desktop-sized metal housing and a reliable PoE power solution suitable for SOHOs, small businesses, and system integrators to deploy Power over Ethernet networks.

In ' Extender ' operation mode , the GSD-804P operates per port at full duplex operation, it can support 25W PoE power output at a distance of up to 250 meters, overcoming the 100m limit on UTP Ethernet cable.

Fanless, environmentally friendly design for quiet operation

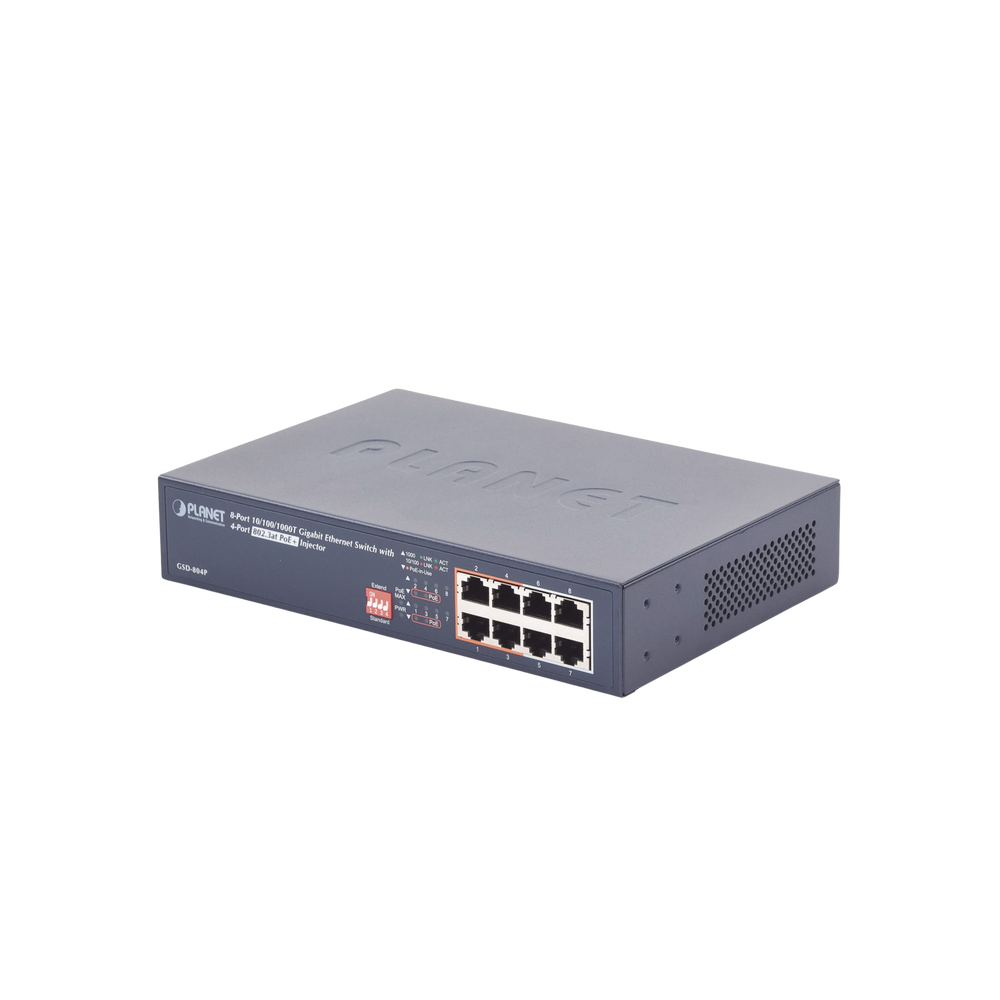

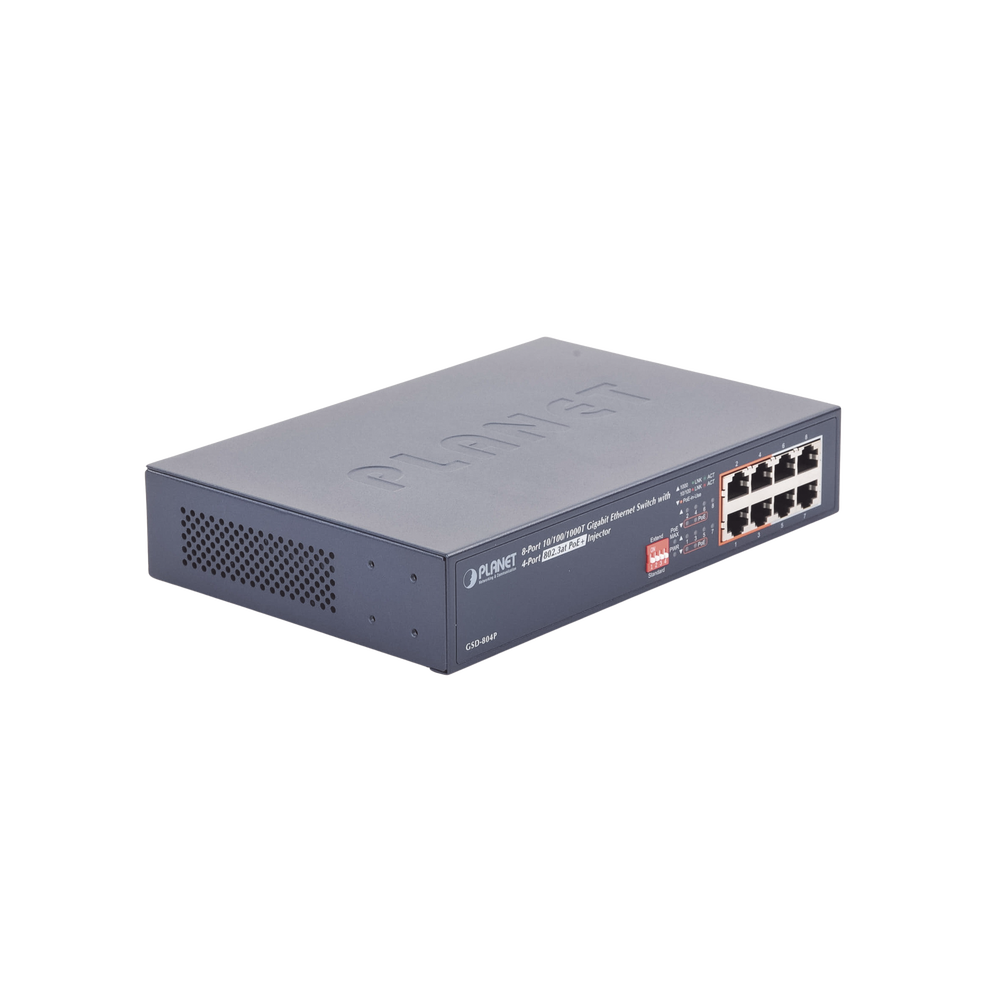

The GSD-804P comes in a compact, desktop-sized metal housing, making it convenient to place. It features a ventilated construction that eliminates the need for a cooling fan, resulting in quiet operation. Furthermore, the GSD-804P can operate reliably and stably in any environment without compromising performance. Deploying PoE PDs with constant power supply is quick and easy.

Easy connection

With data switching and Power over Ethernet integrated into a single unit, the GSD-804P reduces cabling requirements and eliminates the need for dedicated electrical outlets on the wall, ceiling, or any unreachable location. A single cable that carries both data and power can reduce installation costs, simplify installation efforts, and eliminate the need for electricians or extension cords. With four PoE interfaces, the GSD-804P is ideal for small businesses and workgroups, making deploying PoE installations—including wireless access points, IP-based surveillance cameras, and IP phones—easier, more efficient, and more cost-effective.

Physical port

• 4 x 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports with IEEE 802.3at PoE+ injector function (port 1 to port 4)
• 4 10/100/1000BASE-T Gigabit Ethernet RJ45 Copper

Power over Ethernet

• Compliant with IEEE 802.3af/at Power over Ethernet end-span PSE
• Up to 4 ports of IEEE 802.3af/at powered devices
• Supports PoE power up to 30.8 watts for each PoE port
• Each port supports 55V DC power for PoE-powered devices
• 60W PoE Budget
• Automatically detects the powered device (PD)
• Circuit protection prevents power interference between ports
• Remote power up to 100 m in standard mode, 250 m in extended mode

Transfer

• Hardware-based 10/100/1000 Mbps auto-negotiation and auto MDI/MDI-X
• Flow control for full duplex operation and backpressure for half duplex operation
• MAC address table size 4K
• Jumbo 9K frame
• IEEE 802.1Q VLAN Transparency
• Hardware-based DIP switch for selecting 'Standard' and 'Extended' modes; 'Extended' mode features a 25W PoE transmission distance of 250m at a speed of 10Mbps (port 1 to port 4).

Hardware

• 9-inch desktop size, 1U height, rack mountable
• LED indicators for system power, PoE Max, per port PoE ready and PoE activity, speed, Link/Act
• Fanless design
• Supports Energy Efficient Ethernet (EEE) function (IEEE 802.3az)
• Supports 4000VDC Ethernet ESD protection

Accessories included :

• GSD-804P Equipment
• User manual
• 110V power cable
• Screw kit
• Rubber feet
• Rack mounts
