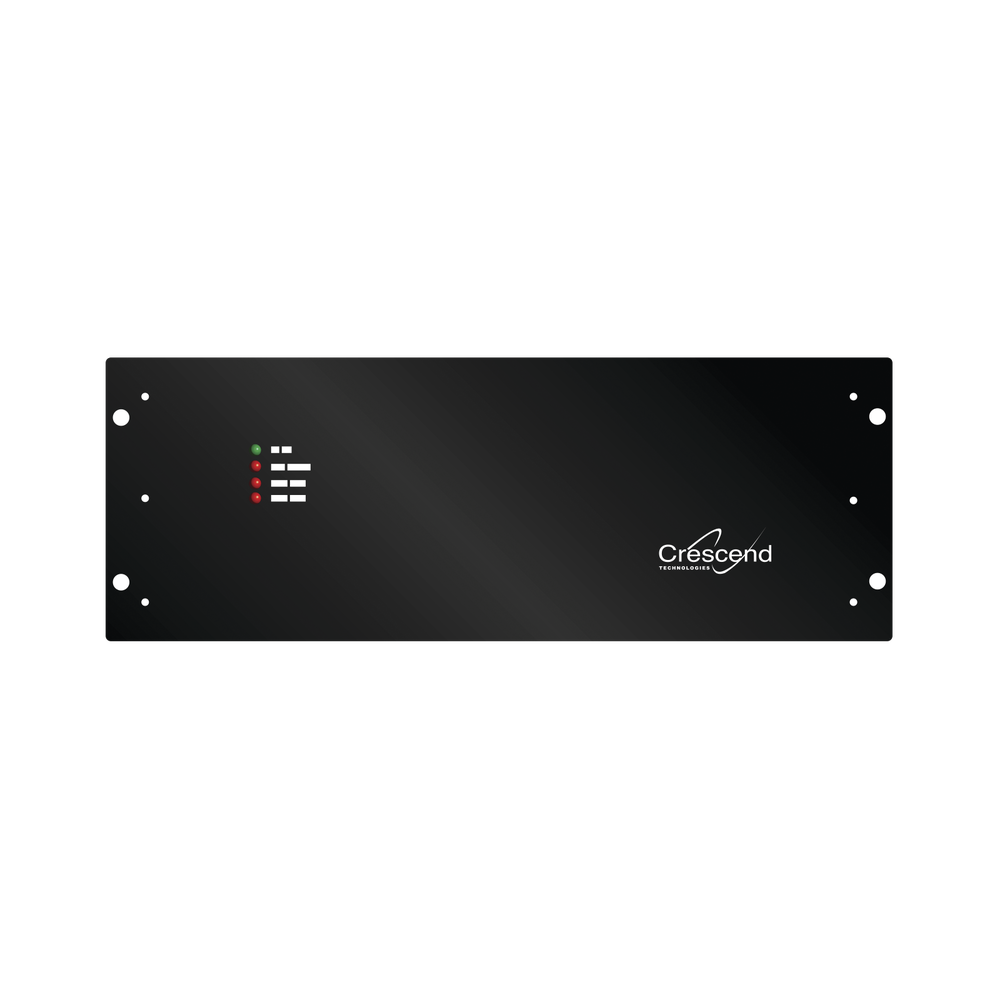

Continuous Duty Amplifier, 162-174 MHz, 20-50W Input / 100W Output, 23Amp, 13.8Vdc, N Female.

Continuous Duty Amplifier, 162-174 MHz, 20-50W Input / 100W Output, 23Amp, 13.8Vdc, N Female.

Continuous Duty Amplifier, 162-174MHz, 20-50W Input / 100W Output, 23A, 13.8Vdc.

• Frequency Range: 162-174 MHz (EB)
• Current Consumption: 23 Amp.(Max)
• Operating Voltage: +13.8 VDC.
• Duty Cycle: 100%
• Input Power: 20 to 50 Watt.
• Output Power: 100 Watt, factory set.
• Harmonics and Spurious: FCC Compliant.
• Input/Output Impedance: 50 Ohm (Nominal)
• VSWR Load Tolerance: Protected to VSWR.
• LED Indicator: DC On, Low Output, High VSWR, High Temp.
• Alarm: Additional Alarm Terminal.
• Input/Output Connector: N Type Female.
• Cooling Method: Forced Air with Fan over the Heatsink.
• Operating Temperature Range: -30º C to +60º C.
• Storage and Transport: -40º C to +70º C
• Humidity: 80% at +40º C (non-condensing).
• Altitude: 3000 mts. maximum.
• Dimensions (Height x Width x Depth): 178 x 483 x 153 mm.
• Nominal Weight: 4.54 Kgs.

*Ask for Delivery Time.
