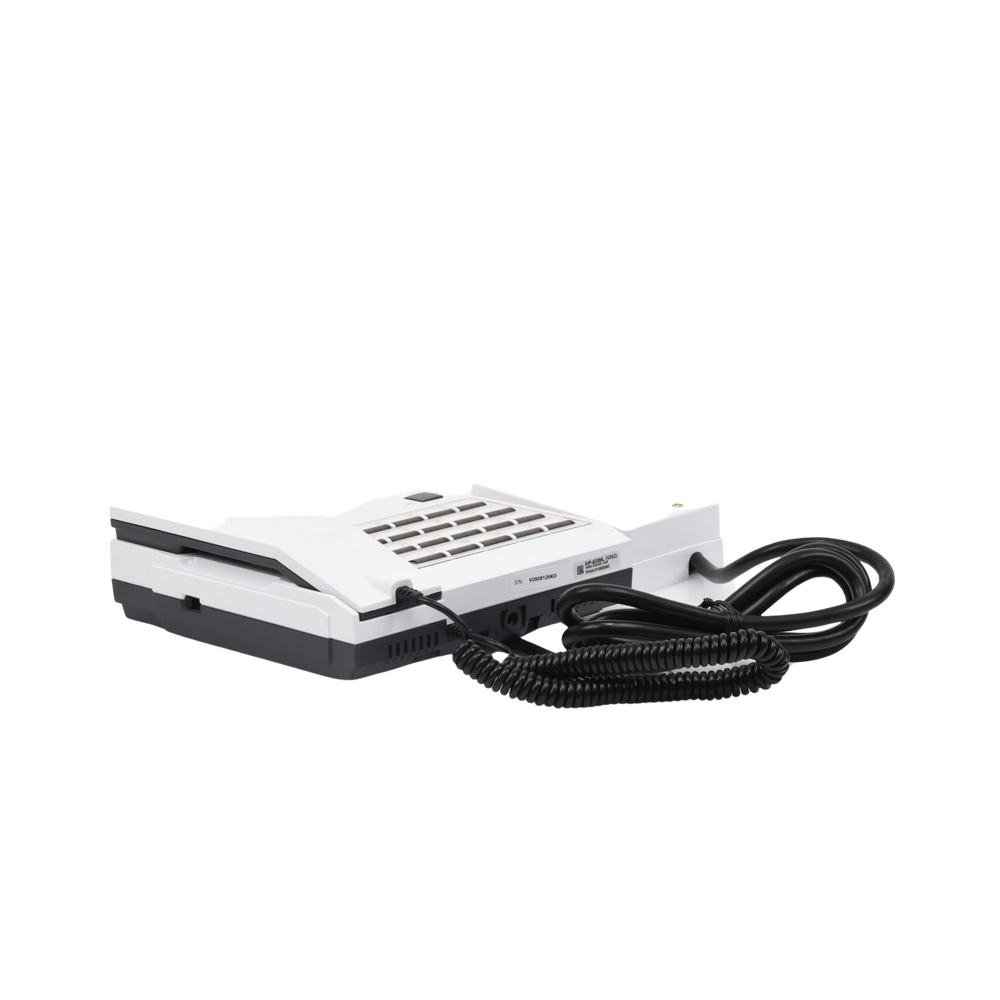

Multiple Intercom System

• 20 communication extensions.
• Master Intercom (KIP-620ML)
• Extensions (KIP-300 or DS-2C).
• Individual alert call via loudspeaker.
• Easy installation (2 wires).
• Two-way communication from extensions to Intercom Maestro.
• Includes junction box for the 20 extensions.
• Typical distance up to 200 m with 18 gauge.
• Surface or Desktop Mount.
• Electronic sound

• Operating temperature: 0 to 50 ºC
• 24 Vdc power supply (PS-M1 Not Included).
• Extension power supply obtained from the master Intercom
• Maximum power consumption 10W.
• Dimensions: 175 x 175 x 55 mm.

The KIP-620-ML audio intercom systems are very cost-effective since they are analog devices and are very simple and reliable to install. For these devices, it is recommended to use 18-gauge, 100% copper cable, preferably shielded, to ensure the greatest distance and audio quality.

Suggested cables 9274 1119-5501/500 92-70 ACCESS-184/500

*2 Years Warranty.
