Main Features:

• Selectable output of 12VDC or 24VDC
• Supply current 12VDC @ 4A or 24VDC @ 3A
• Integrated charger for sealed lead-acid or gel batteries
• Automatic switchover to battery backup when AC power fails
• Electronically regulated and filtered output.
• Protection against short circuits and thermal overloads

Physical and Electrical Characteristics:

• Dimensions:13'W x 13.5'H x 3.25'D (330mm W x 343mm H x 83mm D).
• With backup battery capacity.
• Batteries are not included.
• Suggested batteries: PL4.512 / PL712 / PL912.
• Product Weight: 6.95 lbs. (3.15 kg).
• Shipping Weight: 8.75 lbs. (4 kg)

Highlighted Features:

• Class 2 rated power limited output.
• Anti-theft alarm applications (UL 603).
• AC fault monitoring.
• The notification trigger can be selected for 30 seconds (factory setting) or 6 hours.
• Low battery monitoring.
• Battery presence monitoring.
• LED indicators for AC input, DC output and battery.

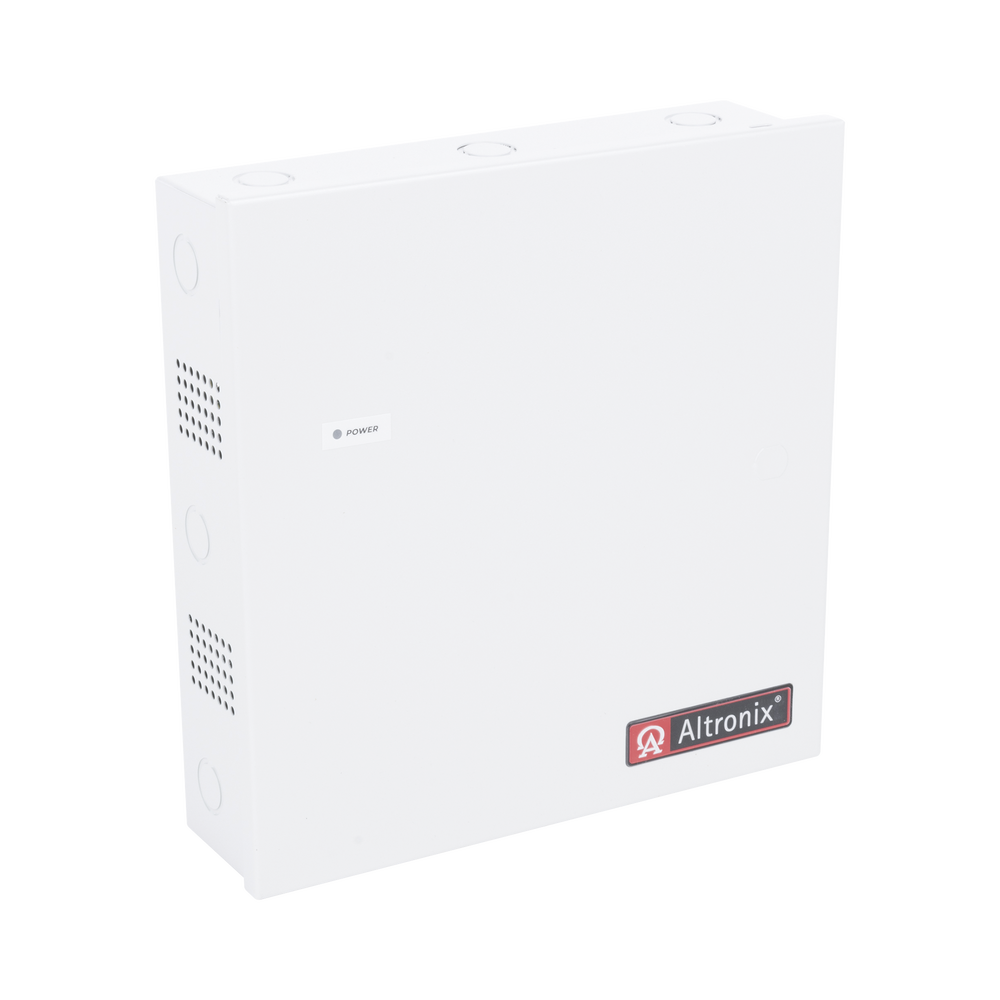

• Wall mount box for indoor use.
