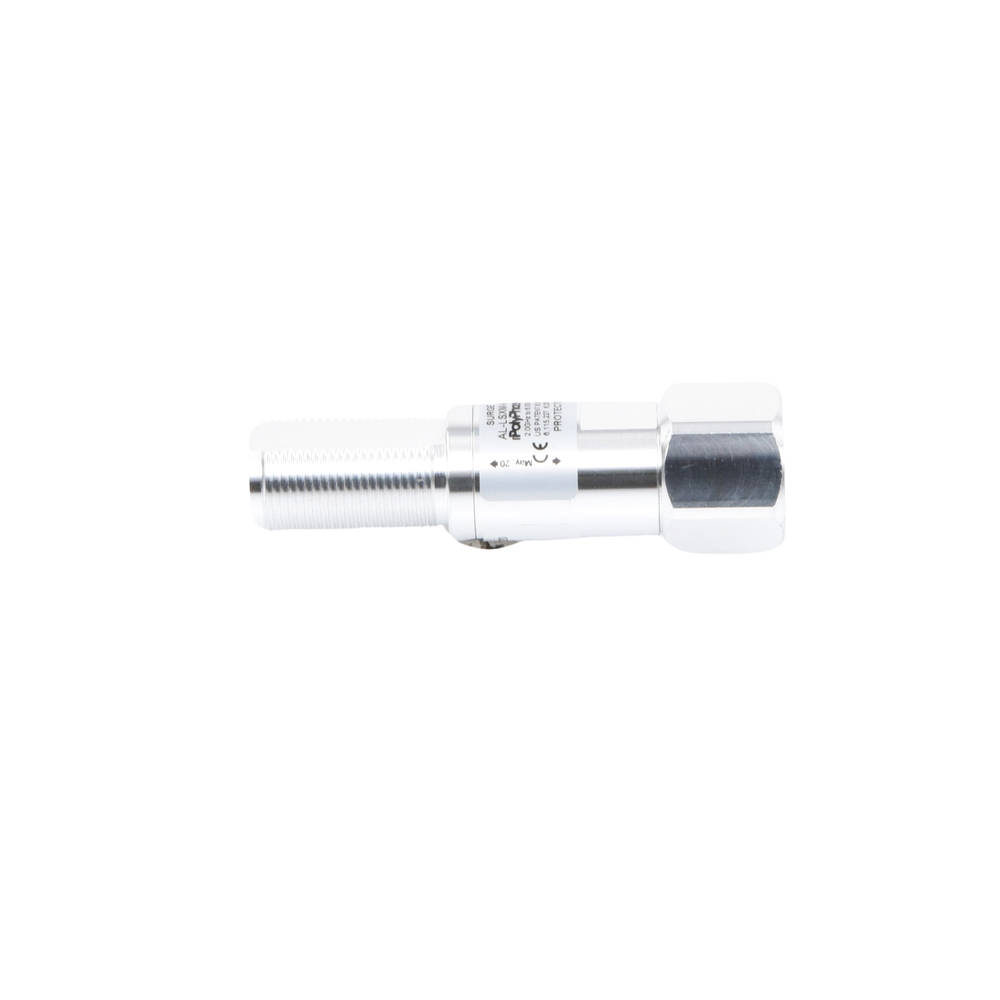

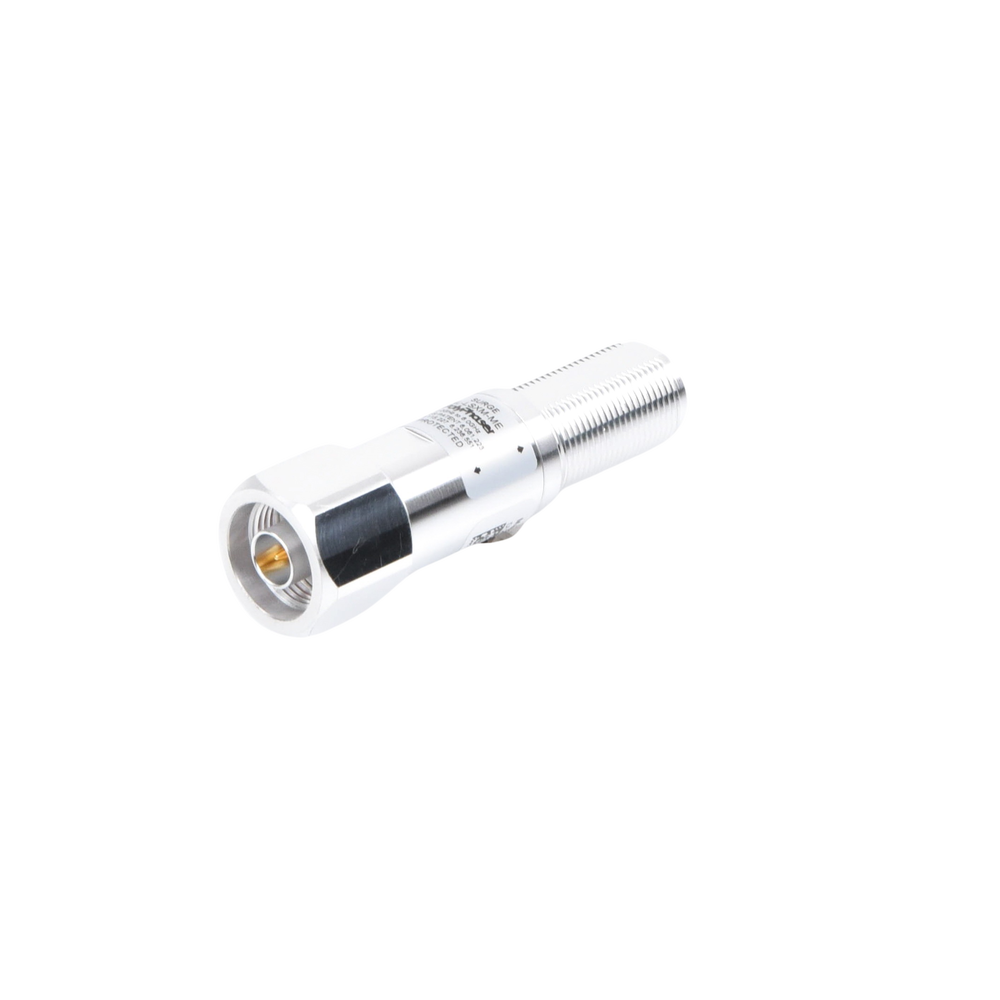

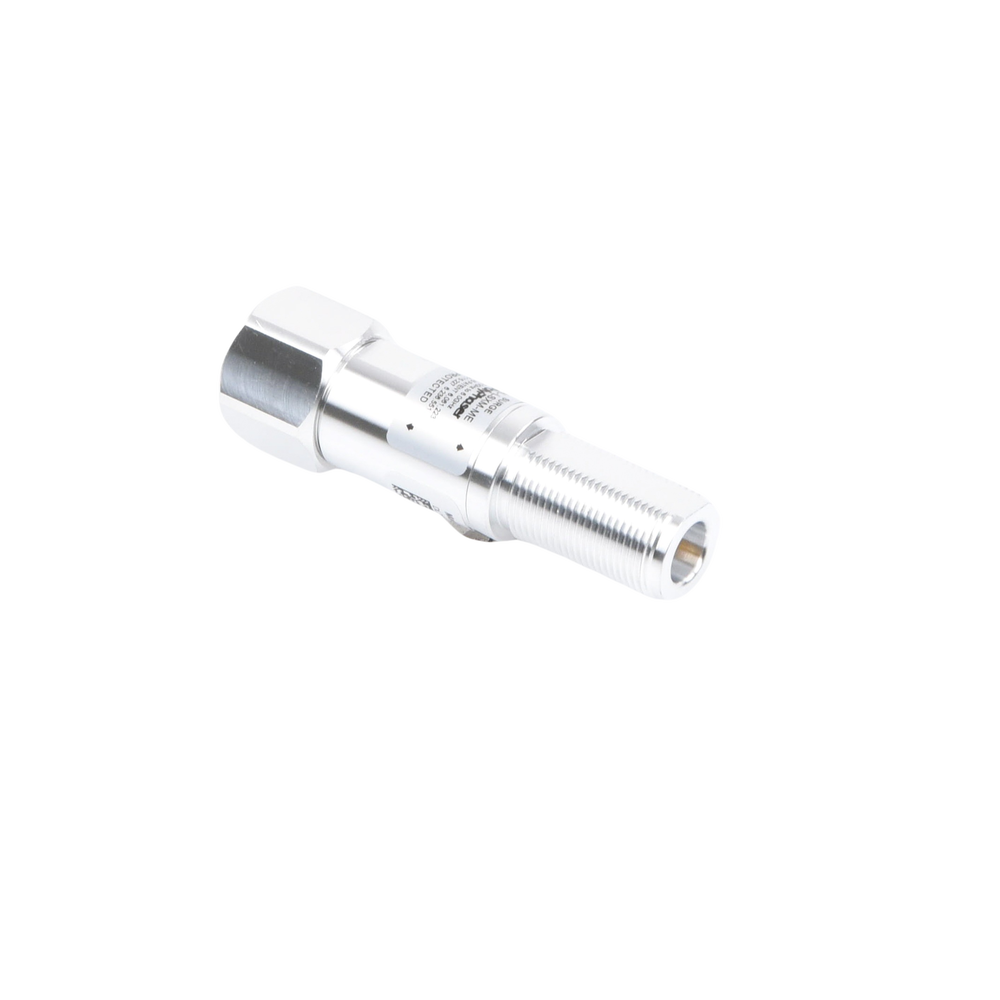

2000 - 6000 MHz Coaxial RF Protector With High Pass Filter With N-Male Connector Toward the Equipment

2000 - 6000 MHz Coaxial RF Protector With High Pass Filter With N-Male Connector Toward the Equipment

The patented SX RF blocked DC filter protectors are ideal for RF coaxial applications where DC is not required.

Features :

- Application : Protection against atmospheric discharges .
- Frequency range : 2000 - 6000 MHz .
- RF power : 10 W.
- Insertion loss : ≤ 0.1 dB .
- Energy flow : ≤ 0.5 µJ .
-Protocol: Lock CD .
-Discharge connector: N-Female.
-Protection connector : N-Male.
-Dimensions: 71.0 x 26.3 x 26.3 cm.
-VSWR ≤1.2 to 1 typical.

Some additional benefits:

-High surge current capacity.
-No continuity in central pins of connectors.
-Weather protection.
