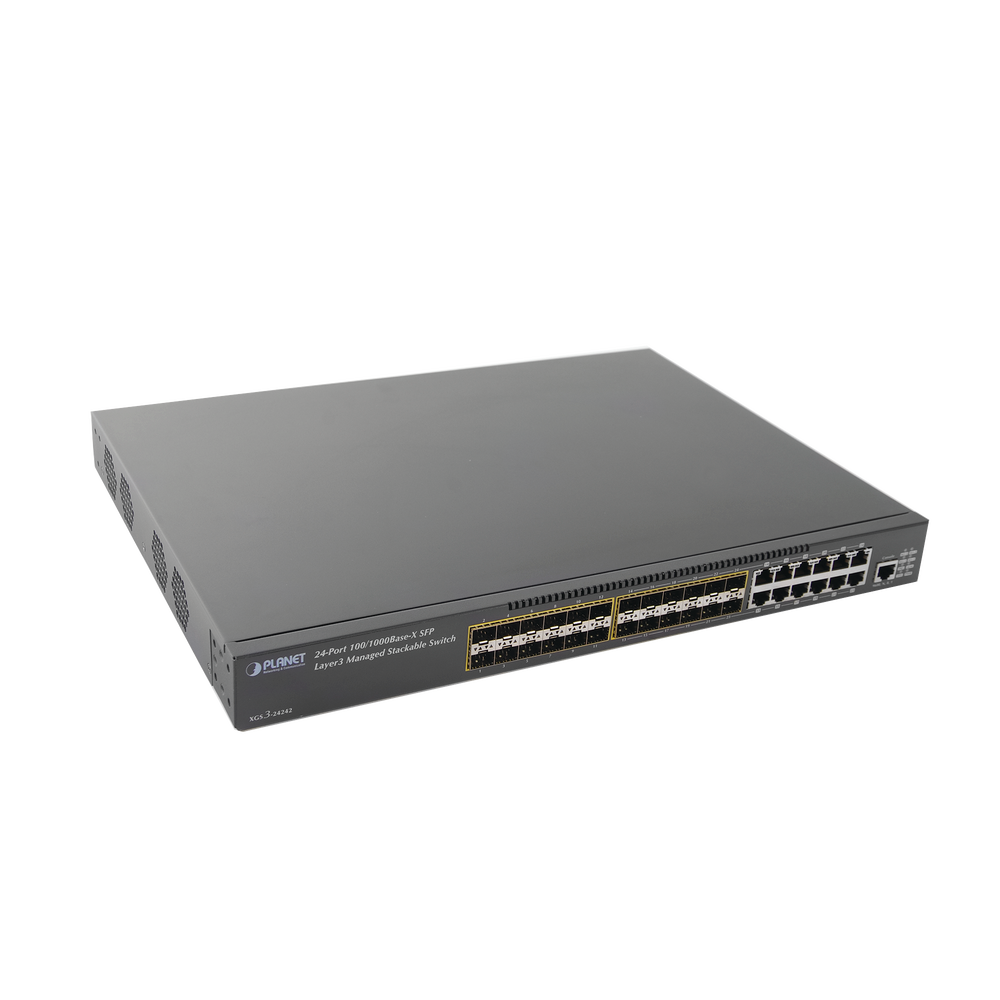

24-Port 1Gbps SFP Layer 3 Core Switch with 12 Shared 1Gbps RJ-45 Ports + 2 Expansion Slots

24-Port 1Gbps SFP Layer 3 Core Switch with 12 Shared 1Gbps RJ-45 Ports + 2 Expansion Slots

Ports:
• 24 100/1000BaseX SFP ports.
• 12 Shared 10/100/1000Base-T ports (Ports 13-24).
• 2 10G SFP+ expansion modules Max. 4 10G ports.

Stacking:
• Up to 24 Stacked Switches managed as if it were 1.
• Management of the entire Stack with a single Management IP.

Administration:
• Administration via web interface.
• Telnet/console command line interface.
• Monitoring by SNMP v1, v2c.
• Supports SSL.
• DHCP Client.
• Firmware/configuration update via TFTP and HTTP.
• Real-time monitoring with history, statistics, alarms, and events.
• DHCP Relay function.

Layer 2 Features
• Complies with Gigabit802.3,802.3u,802.3ab,802.3z standards.
• Full/HalfDuplex 10Base-T/100Base-TX/1000 Base-T Auto-Negotiation for all ports.
• Auto-Detect MDI/MDI-X for each RJ45 port.
• High-performance Store and Forward architecture, runt/CRC filtering eliminates erroneous packets to optimize network bandwidth.
• 1KMAC Address Table with Autolearning Function.
• Supports Quality of Service, MulticastI GMPS nooping V1 and V2,FlowControl, 802.1Q VLANs, 802.3ad LACP Link Aggregation, 802.1D / 802.1w Spanning Tree Protocol, Port Mirroring, Broadcast / Multicast / Unicast Storm Control, ACL, NTP, LLDP.
• Throughput: 95Mpps @ 64Bytes

Layer 3 Features
• IP routing, VLAN multicast.
• Static routes.
• Routes using RIPv1/v2, OSFPv2, BGPv4.

Physical and Electrical Characteristics:
• Power supply: 100-240VAC @ 30W
• Dimensions: 1U Rack, 440 x 200 x 44.5 mm.

Security
• Password protected access, IP/MAC Binding, MAC Filtering, Static MAC, Port Security, 802.1x port-based network access control.
• Supports RADIUS / TACACS+ User authentication, with built-in RADIUS Client.
• Defense against DoS attacks.
• Spoofing attack prevention.
• Dynamic ARP Inspection
• DHCP Snooping to prevent untrusted DHCP messages.
• IP access list to prevent intruders.

Physical and Electrical Characteristics
• Redundant power supply 100-240VAC / 79W and 48VDC
• Dimensions: 1U Rack, 415 x 325 x 44.5 mm.
• Weight: 4.3 Kg.
• Operating temperature: 0 to 50°C

*3 years warranty.
