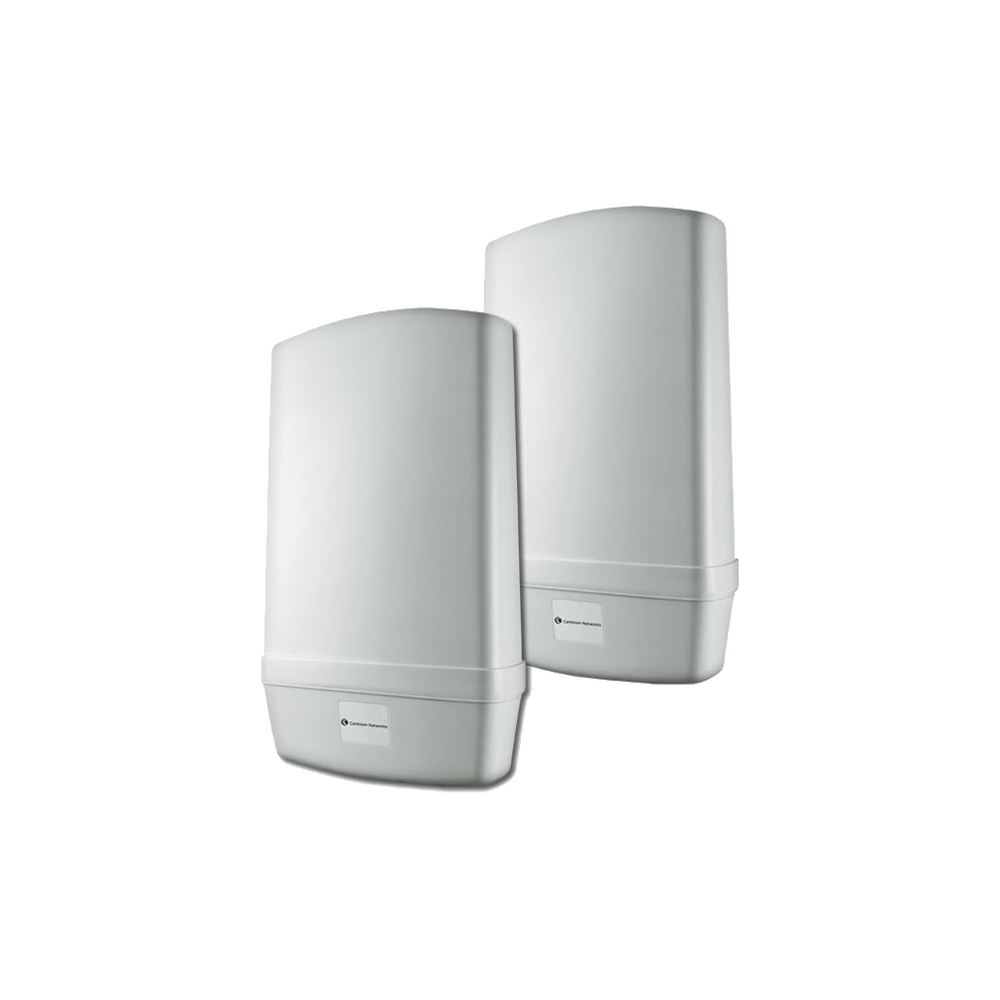

PTP200 - Complete BackHaul Link Carrier Class line for Public Safety (4.9 Ghz) with Integrated 17 dBi Antenna - WB3274AA

PTP200 - Complete BackHaul Link Carrier Class line for Public Safety (4.9 Ghz) with Integrated 17 dBi Antenna - WB3274AA

• 150 mW
• 21 Mbps REAL
• 4.94 - 4.99 GHz
• OFD modulation
• Interference Mitigation
• GPS synchronization
• TDD (Time Division Duplex) technology
• Range of up to 24 km
• Channel width 10 MHz
• QoS, VLAN (802.1ad Q in Q)
• QPSK to 64-QAM modulation
• 1 N Female connector in connectorized version
• Operating temperature -40 to 55 °C
• 56-bit DES encryption (128-bit AES optional)
• 24 - 59 Vdc power supply (via PoE)
• Dimensions: 340 x 210 x 110 mm / Weight: 1.3 kg.
