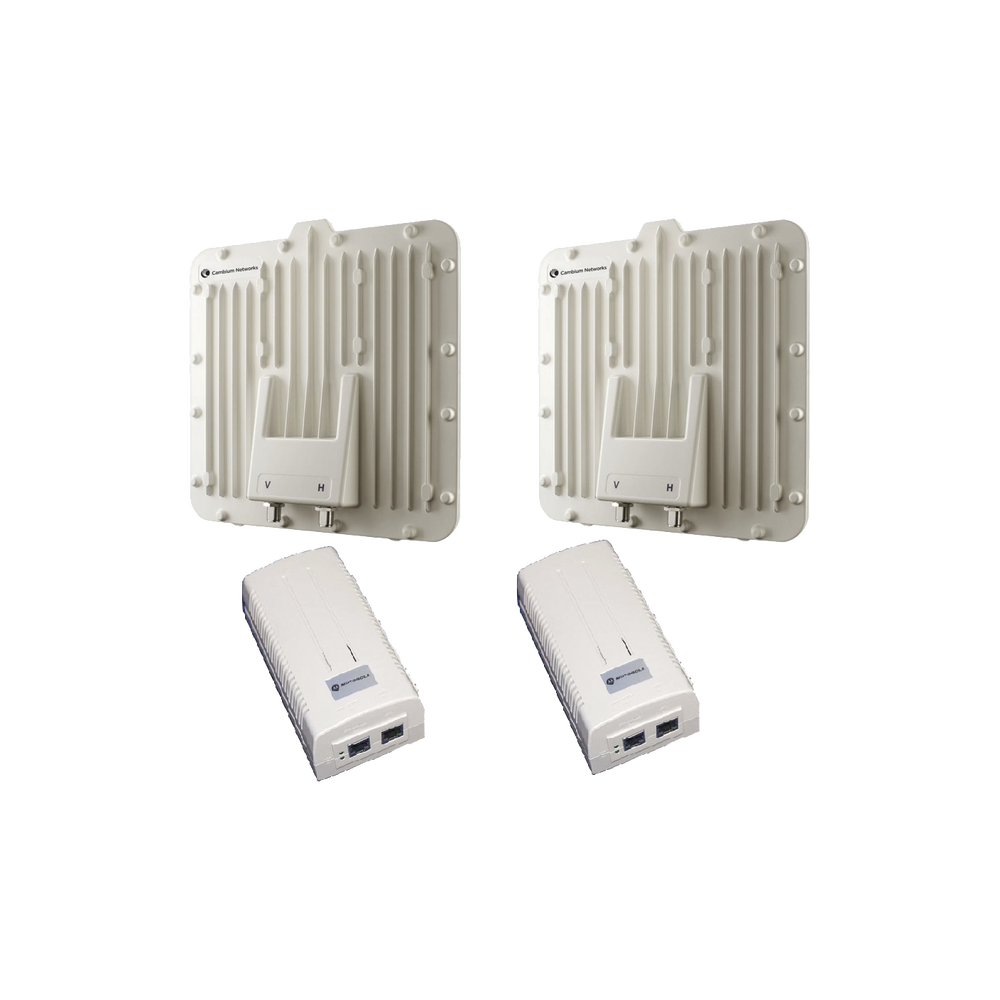

PTP250 - Complete BackHaul Link, Carrier Class Line, Connectorized Version. 5GHz - C054025B001A

PTP250 - Complete BackHaul Link, Carrier Class Line, Connectorized Version. 5GHz - C054025B001A

General Specifications

• 200 mW.
• 256 Mbps REAL.
• 5.470 - 5.850 GHz.
• 234,000 packets per second (PPS).
• Interference Mitigation (DFS).
• Range varies depending on the antenna used.
• Simultaneous vertical/horizontal polarity (MIMO 2X2).
• Channel width 20/40MHz (adjustable).
• QoS, VLAN (802.11ad Q in Q, 802.1Q, 802.1p).
• Adaptive BPSK modulation to 64-QAM.
• Gigabit Ethernet port.
• Operating temperature -40 to 60 °C.
• Proprietary encryption: FIPS 197 AES 128 bits.
• Spectrum analyzer for automatic Tx channel selection.
• Avoids civil aeronautical radars in the 5.4 GHz band.
• It has visual and audible alignment features.
• 2 N-Female connectors for external antenna connection.
• 55 Vdc power supply (including PoE); maximum consumption: 35 W
• Dimensions: 370 x 370 x 95 mm / Weight: 5.5 kg.

COMPLETE LINK (Includes 2 teams)
