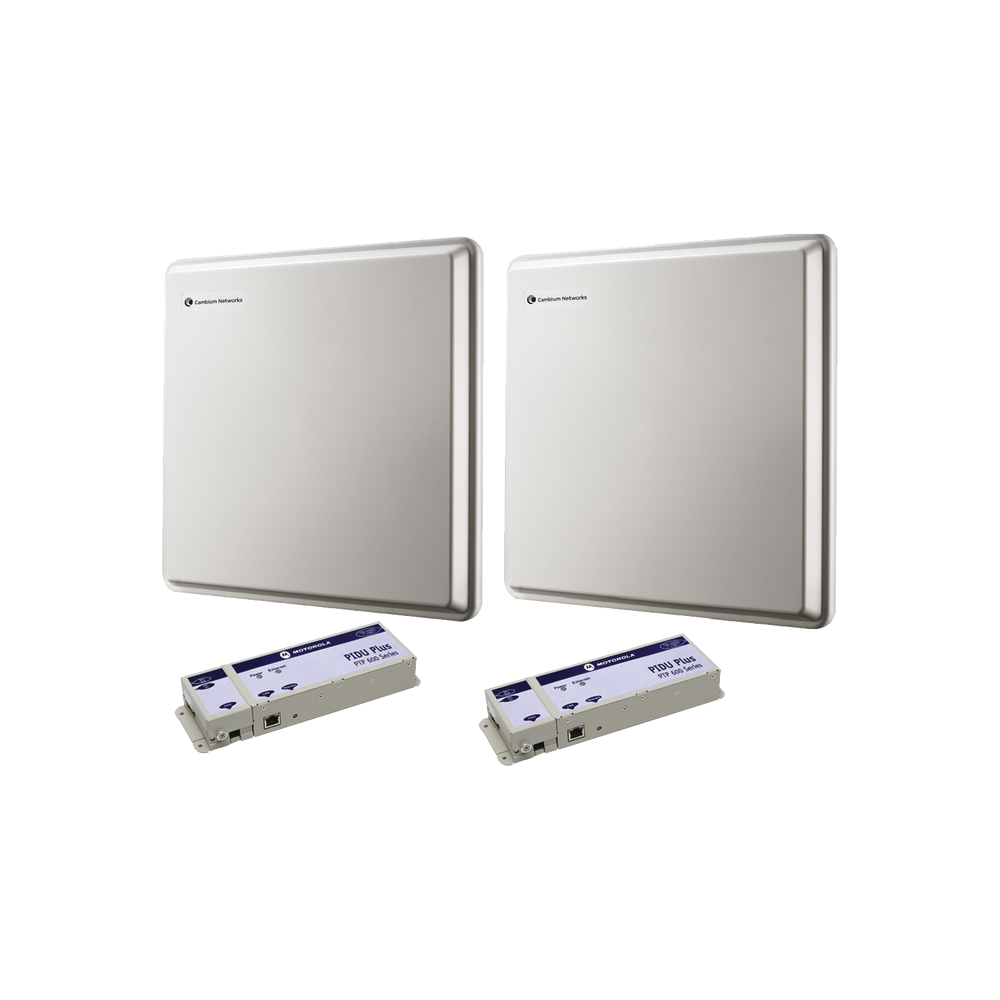

PTP500 - Complete Carrier Class Backhaul Link with integrated 23 dBi 5.4 GHz antenna

PTP500 - Complete Carrier Class Backhaul Link with integrated 23 dBi 5.4 GHz antenna

• 500 mW
• 25 Mbps REAL (base); can be increased to 105 Mbps REAL with a license.
• 5.4 - 5.725 GHz / 5.725 - 5.875 GHz (depends on version).
• 568,000 packets per second (PPS).
• Optional GPS synchronization (requires additional equipment).
• Non-Line of Sight (NLOS) links up to 8 km through structures/buildings.
• 99.999% link viability, operating under normal conditions.
• Supports super long distance links, i-OFDM modulation (200 km)*.
• Simultaneous vertical/horizontal polarity (MIMO 2X2).
• Channel width 5, 10 or 15 MHz (configurable).
• QoS (802.1p, 8 levels).
• 6 ms latency.
• Adaptive BPSK modulation up to 64QAM.
• DFS dynamic frequency selection (avoid radars in the 5.4 GHz band)
• One Fast Ethernet port.
• Supports T1/E1 (requires splitter).
• Operating temperature -40 to 60 °C.
• Proprietary encryption: FIPS 197 AES 128/256 bits.
• It has a visual and audible antenna alignment utility.
• Power supply: 55 Vdc (includes PoE), compatible with redundant source (36-60 Vdc).
• Maximum power consumption: 50 W.
• Dimensions: 370 x 370 x 95 mm / Weight: 5.5 kg.

*Requires prior analysis by the Engineering Department.

COMPLETE LINK (includes 2 devices with integrated antenna)

*1 year warranty.

Ask about delivery time and price for the 5.8 GHz version.
