Hybrid Fire and Intrusion Panel, Up to 128 Wired or Wireless Zones, 120 V-Plex Zones, 8 Partitions, Compatible with AlarmNet and Total Connect

Hybrid Fire and Intrusion Panel, Up to 128 Wired or Wireless Zones, 120 V-Plex Zones, 8 Partitions, Compatible with AlarmNet and Total Connect

System

• UL, ULC, FM, CSFM and FDNY Listed

• Complies with NFPA 72

• 3 Expansion Technologies: Wired, Wireless, and Multiplexed

• 2 notification circuits of 1.7 A

• Programming by alphanumeric keyboard, software downloading.

• Maximum 31 peripheral devices such as keyboards, expansion modules and relays.

• Supports touch-sensitive keyboards.

• Entry time defined by the installer.

• 2 programmable entry and exit zones with different times.

• Automation functions.

• Auto arming and disarming function.

• Supports 4204 relay modules maximum 24.

• 512 events in memory. The memory can be read using COMPASS Download software in Spanish.

• 8 partitions

• Confirmation of arming and disarming.

• Telephone line cut detection.

• Auxiliary current of 600 mA.

• Power supply.

Zones

• 8 programmable zones, configurable with or without end-of-line resistor.

• 3 Expansion Methods: Wired, Wireless and Vplex.

• Zones can be configured for fast or slow response.

• Zones 1 and 2 support up to 16 2-wire smoke detectors each.

• Supports 4-wire smoke detectors.

• Supports up to 128 wireless zones by adding the Honeywell 5800 receiver.

• Maximum capacity of 120 Vplex Zones.

• Supports 4208U wired zone expansion module.

• 100% wireless system monitoring.

• Range of up to 60 m on the 5800 wireless series.

• Requires PL712 backup battery and 6160CR programmer keypad (Not included)

Users

• 150 user codes.

• 6 authority levels: Installer, Master, Standard, Guest, Arm Only, and Duress.

• Quick assembly system.

• 5 arming levels: full, partial, night, instant and maximum

• Open door notification (CHIME).

Communication

• Built-in telephone communicator for communication with the alarm receiving center.

• Supports 4+2 and CONTAC/ID communication formats.

• Supports dual and split reporting options.

• Compatible with 3i third-generation communication systems.

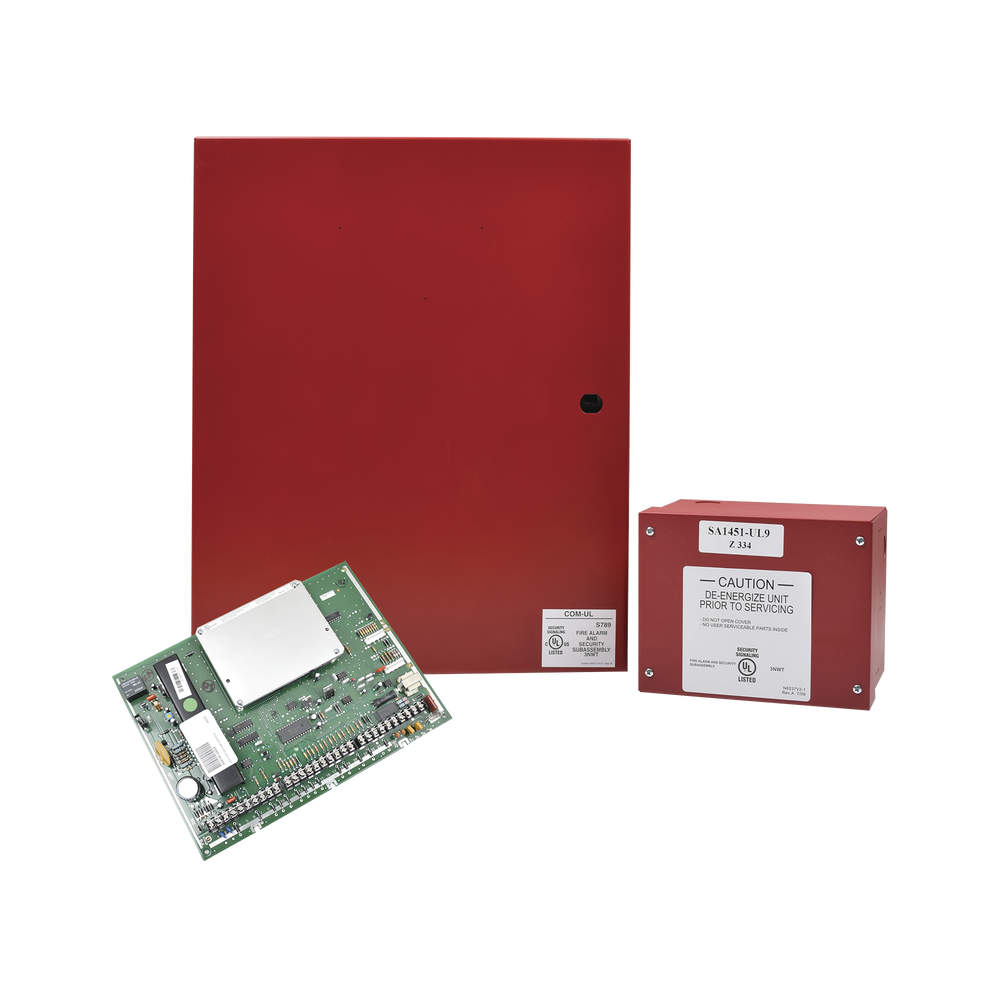

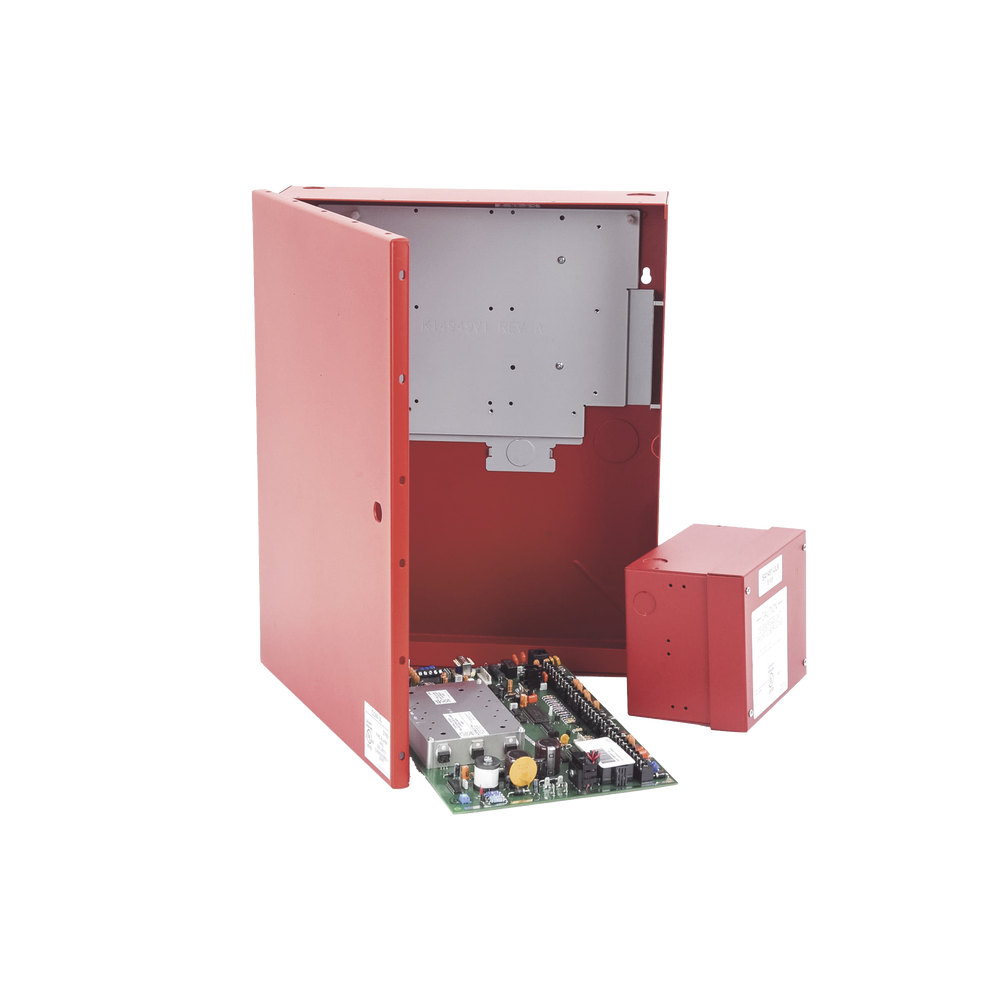

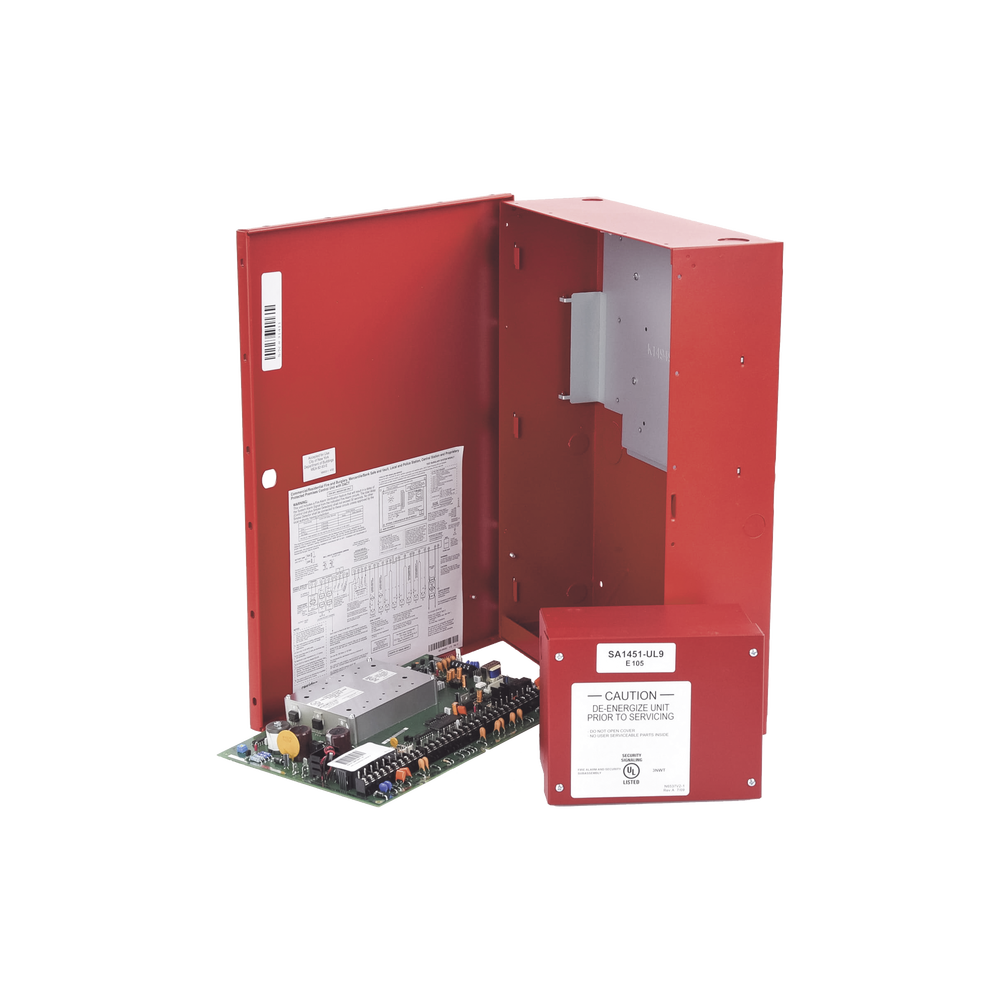

VISTA-128FBPT control panel includes:

• 1 Card

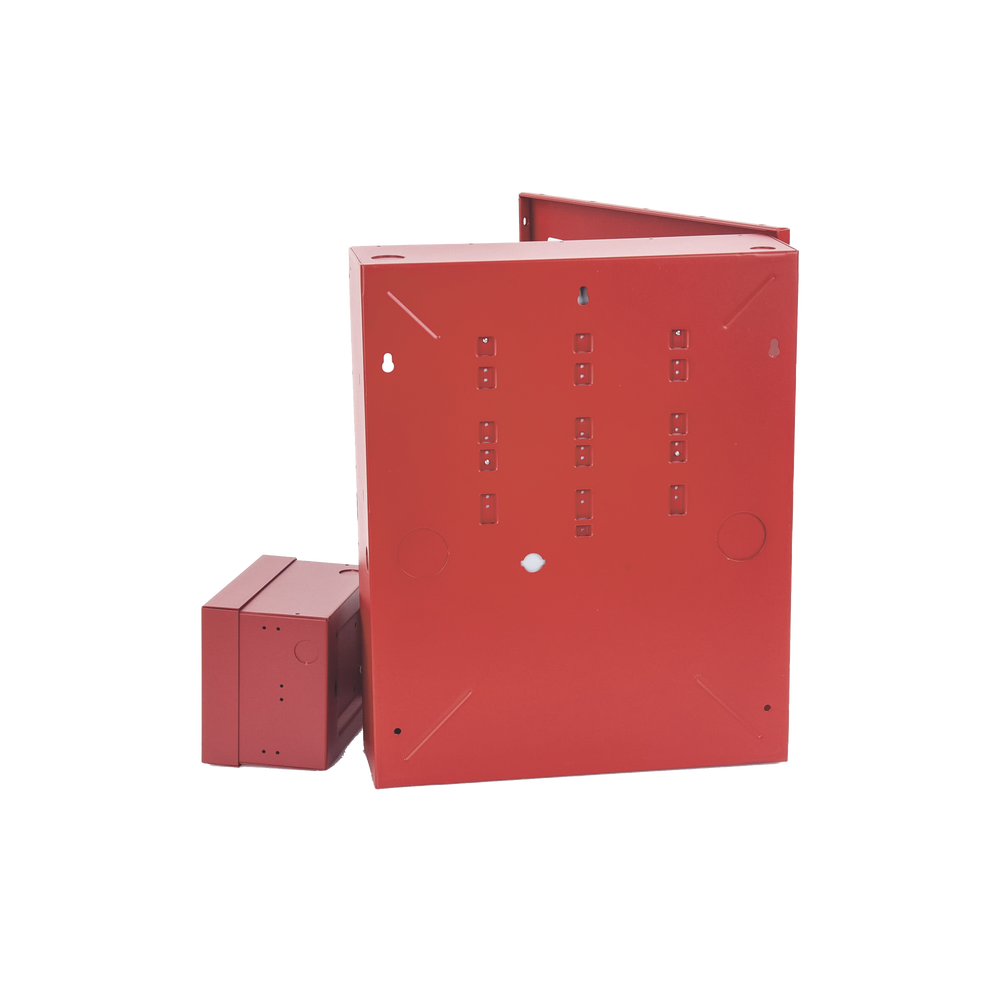

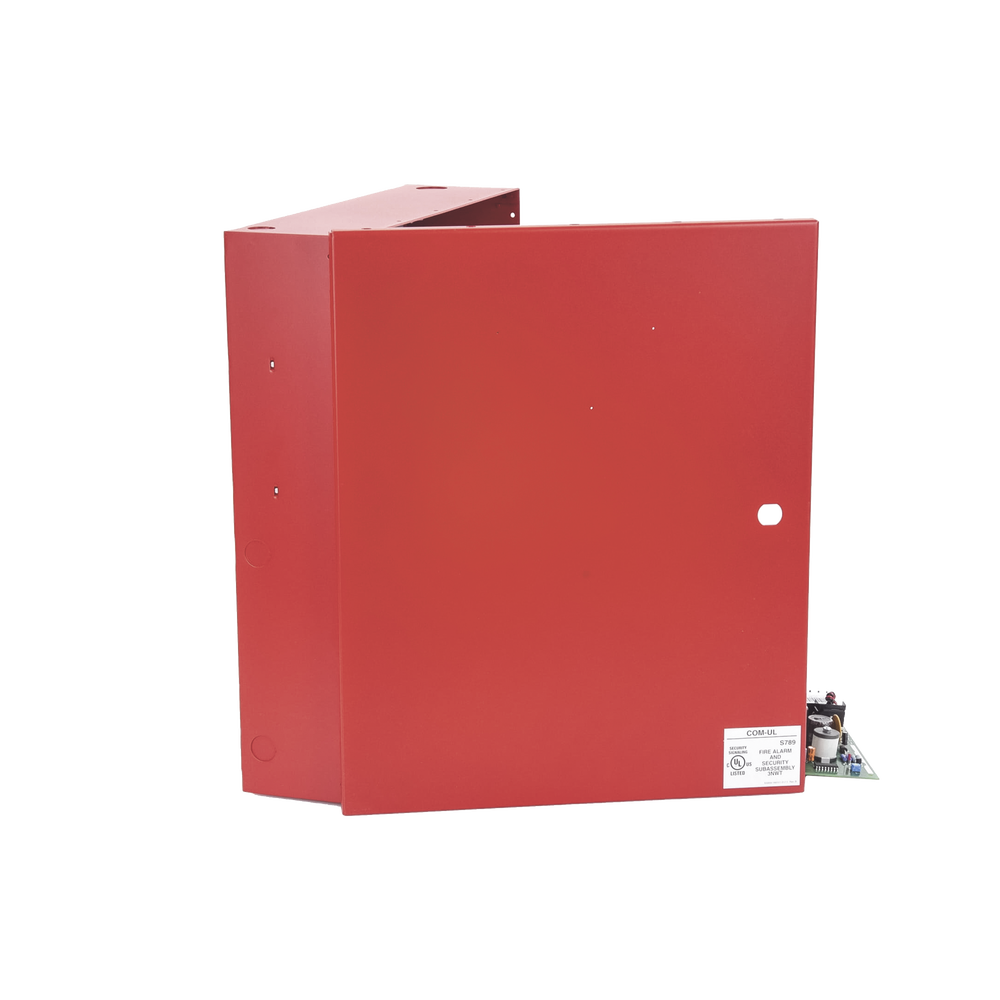

• 1 Cabinet

• 1 Power supply

*Requires PL712 backup battery and 6160CR programmer keypad (Not included)
*1 Year Warranty
