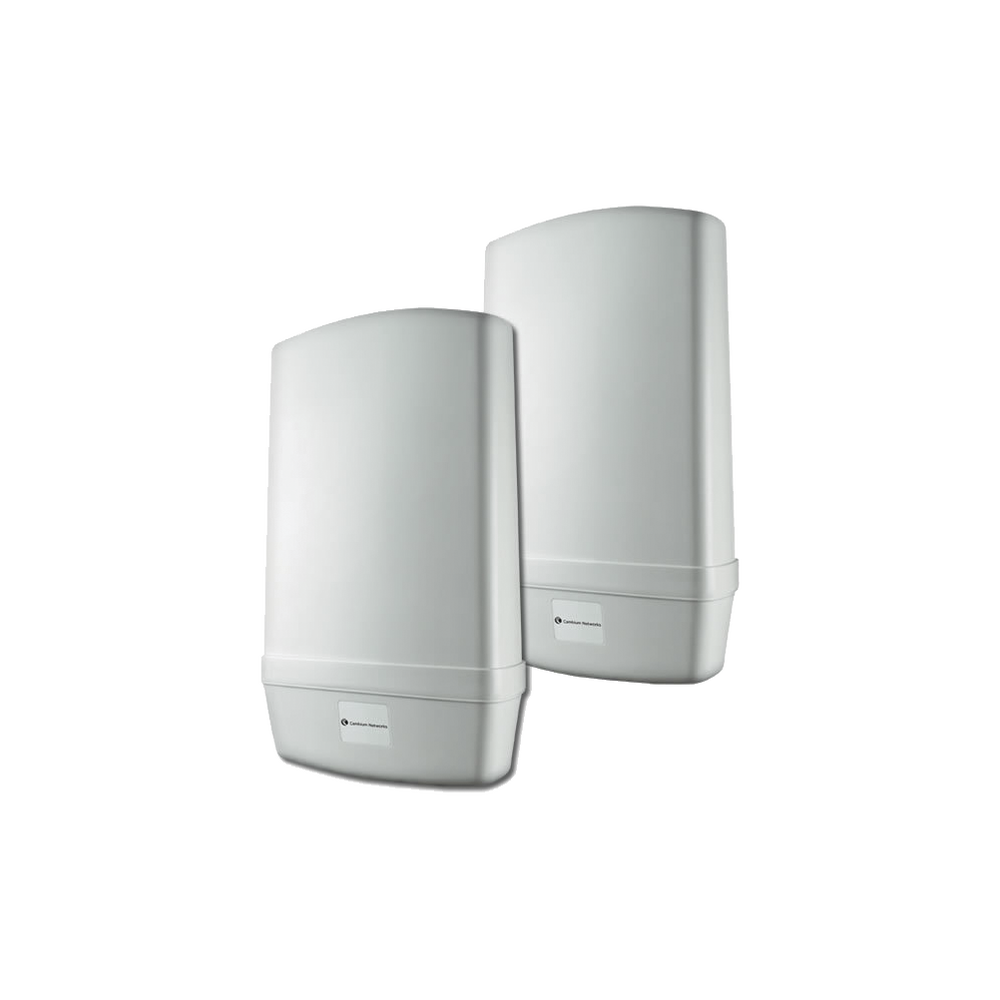

PTP 200 Series - Complete Carrier-Class Backhaul Link for Public Safety (4.9 GHz). Connectorized Version for 4.9 GHz Antennas

PTP 200 Series - Complete Carrier-Class Backhaul Link for Public Safety (4.9 GHz). Connectorized Version for 4.9 GHz Antennas

Ideal for voice, data, and video transmission solutions with extremely high performance and reliability for: Government, Public Safety, Wireless Internet Service Providers (WISPs), Operators/Carriers, Industry, Oil & Gas, and High-Demand, High-Capacity Integrations.

• 150 mW.
• 21 REAL Mbps.
• 4.94 - 4.99 GHz.
• Proprietary OFDM modulation.
• Interference Mitigation.
• Optional GPS synchronization (requires additional equipment).
• TDD (Time Division Duplex) technology.
• Range depends on the antenna used.
• Channel width 10 MHz.
• QoS, VLAN (802.1Q, 802.1p).
• QPSK modulation to 64-QAM.
• Operating temperature -40 to 55 °C.
• 56-bit DES encryption (128-bit AES optional).
• Latency of 5 to 7 ms.
• It has visual and audible alignment features.
• N-Female connector for external antenna connection.
• Power supply 24 - 56 Vdc (requires PoE); maximum consumption: 22 W (at 56 Vdc).
• Dimensions: 340 x 210 x 110 mm / Weight: 1.3 kg.

COMPLETE LINK (includes 2 connectorized devices)
