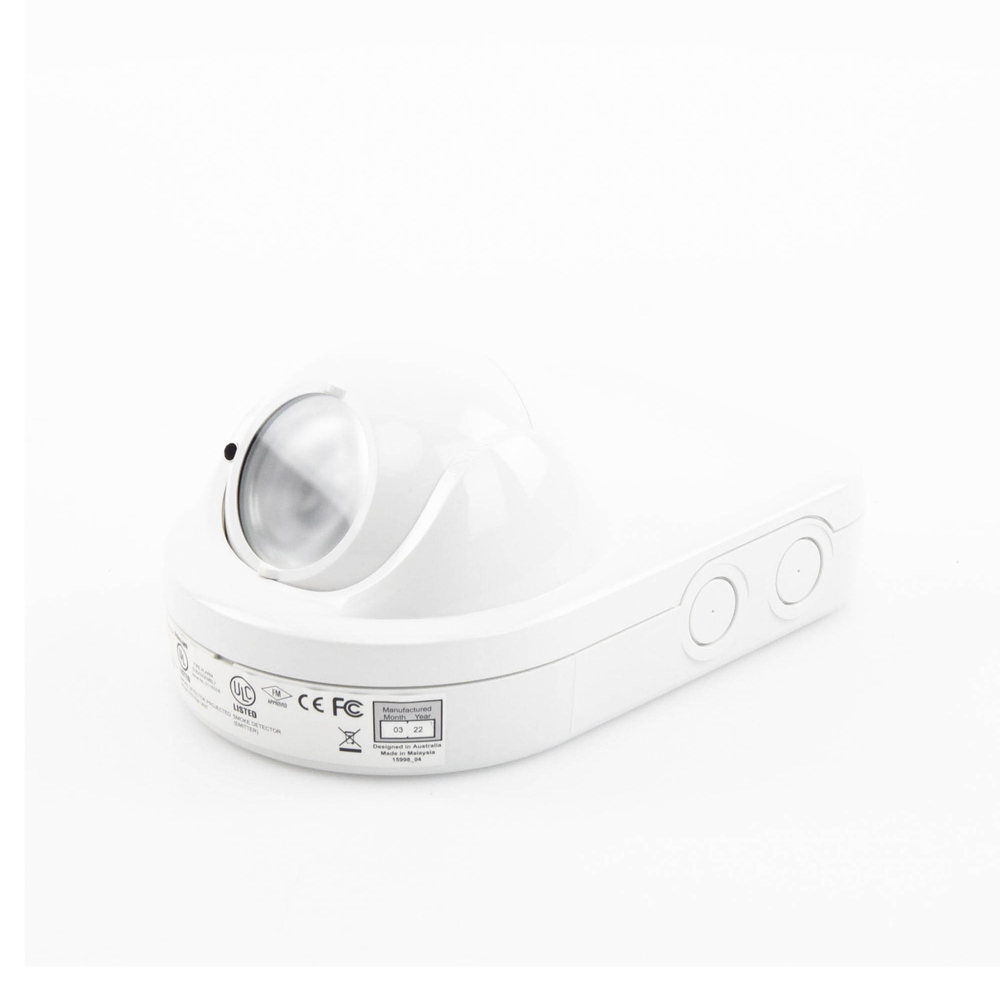

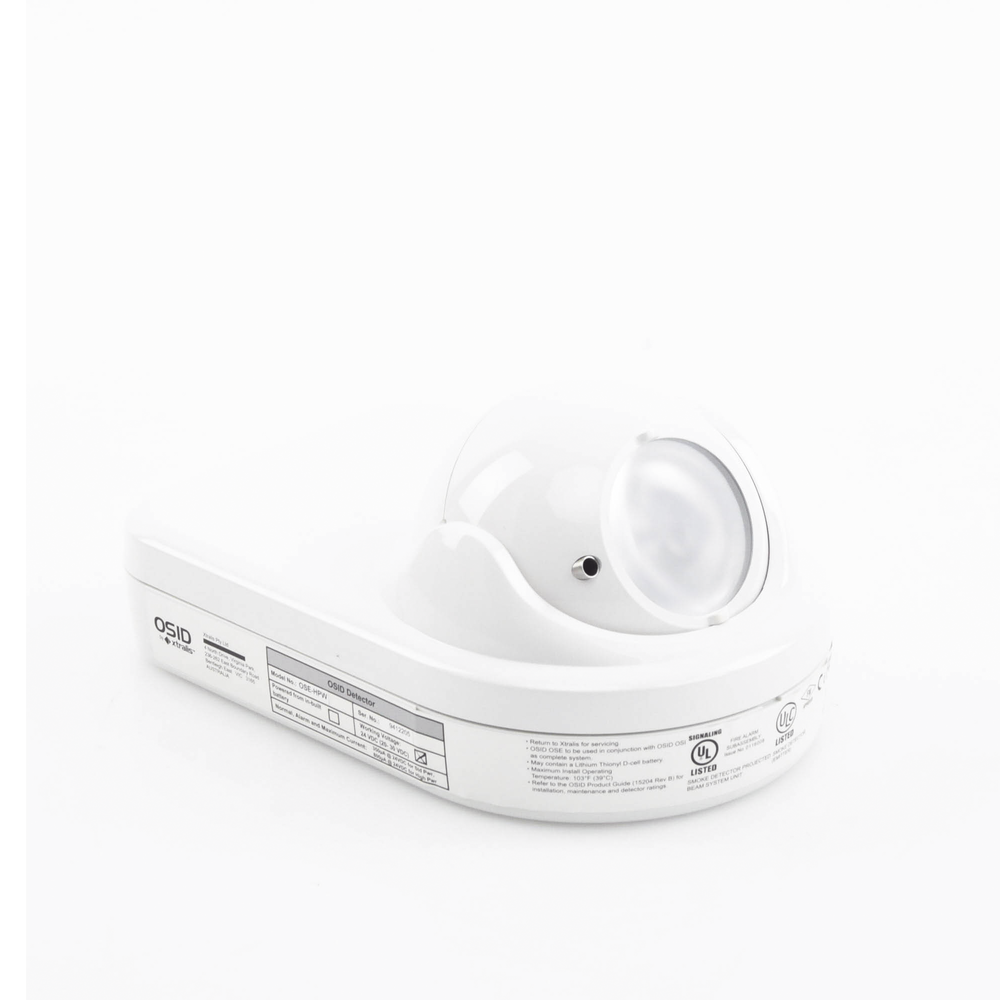

High Power Wired Optical Emitter Analyzer, Requires OSI-10, OSI-90 Receiver Analyzer and OSID-INST Installation Kit (NOT INCLUDED)

High Power Wired Optical Emitter Analyzer, Requires OSI-10, OSI-90 Receiver Analyzer and OSID-INST Installation Kit (NOT INCLUDED)

OSID's open-air optical smoke detection is the latest linear detection technology based on the use of light in two different wavelengths and an optical receiver, enabling unprecedented detection quality in this type of installation.

OSID provides a low-cost, reliable, and easy-to-install solution that addresses the typical problems of photoelectric smoke detectors, such as false alarms and alignment difficulties.

Characteristics

• Maximum detection range of 200 m (it is recommended not to exceed 150 m)

• Status LEDs for fire, faults and power

• High immunity to false alarms

• 3 sensitivity levels (Low, medium and high)

• High immunity to solid objects and dust

• Easy alignment with wide adjustment and viewing angles

• No precise alignment required

• Tolerant to alignment deviations

• Automatic setup in less than 10 minutes

• Easy configuration using Dipswitches

• Dual-wavelength LED-based smoke detection

• Minimum maintenance requirements

• Easy integration with the fire system

• Power supply: 24 VDC, 31 mA maximum

• Operating temperature: -10 to 55 °C

• Dimensions: 198 x 130 x 96 mm
