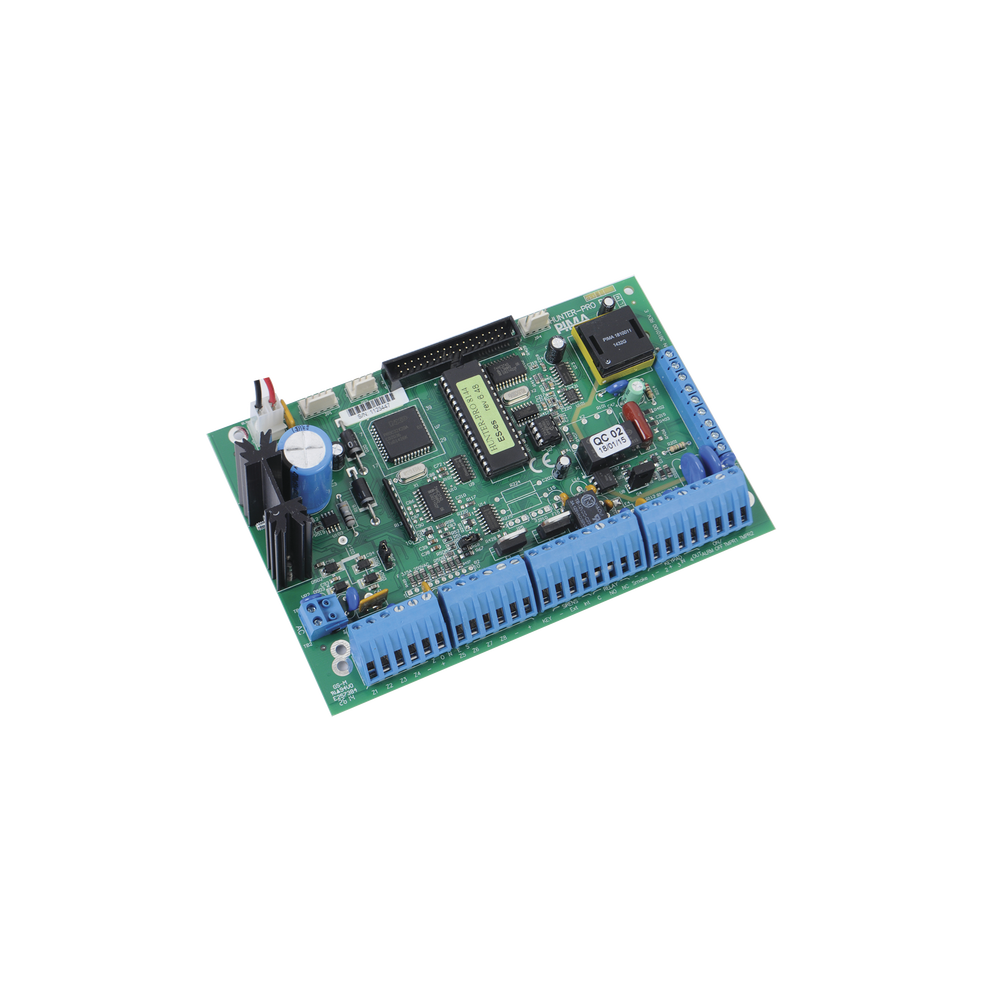

HUNTER-PRO8144 Series Alarm Panel Card, 8 to 144 Zones. Hybrid Panel. Radio/Telephone/IP/GSM Communication Option

HUNTER-PRO8144 Series Alarm Panel Card, 8 to 144 Zones. Hybrid Panel. Radio/Telephone/IP/GSM Communication Option

Hybrid intrusion alarm system with 8 to 144 zones, 16 partitions, up to 63 fully programmable outputs, 32 wireless zones, and 24 remote controls.

System
- Programming by alphanumeric keyboard, downloading software and PGR-896 programmer (not included).
- Auto-arm function by day or inactivity.
- Maximum 8 supervised keyboards, supports alphanumeric and LED keyboards.
- Programmable entry time from 1 to 254 seconds.
- 500 events in memory. The memory can be read from alphanumeric keypads and with COMAX software in Spanish.
- Supports RD-200 reader for proximity cards.
- 1 programmable relay type auxiliary output by event and one more for powering smoke detectors with automatic reset.
- Programmable using COMAX software.
- Maximum 63 auxiliary outputs through the use of expanders (not included).
- 1 arming and disarming notification voltage output.
- 16 subpartitions.
- 2 siren outputs of 0.9 A.
- Telephone line cut detection.
- Auxiliary current of 750mA.
- 16Vac power input.
- Remote control of the system by touch-tone telephone or cell phone.
- 7 fully programmable on-board outputs.

Zones
- 8 programmable zones, configurable with or without end-of-line resistor, or with the capacity for two resistors for wiring supervision and one more for tampering. One zone (tamper 2) as zone 9.
- Zone duplication capability by using 2 resistors.
- Supports wired expansion modules.
- Supports wireless expansion modules; distance may vary. Maximum 60 m without the use of a repeater.
- Maximum capacity of 144 zones through wired expansion and up to 32 wireless zones.
- Ability to create zone templates.
- 10 types of configurable zones.
- Supports 4-wire smoke detectors.

Users
- 144 user codes.
- A duress code can be set per partition.
- Users can be assigned one or more partitions.
- Each user can be assigned a remote control without sacrificing zoans (up to 24 remote controls).
- Multiple levels of authority; master and standard user.
- Quick arming with short code, does not allow disarming.
- Information on alphanumeric keyboard only.
+Zone status
+Time and Date
+Event log.
- Configurable open door alert by access zone (chime).
- iPhone/Android app that allows you to: arm, disarm, view panel and zone status, and control programmable outputs (requires NET4PRO, not included).
- Up to 32 proximity cards (requires RD-200 reader).

Communication
- 5 communication modes to the Monitoring Center: via telephone, radio, GPRS, GSM and TCP/IP.
- Supported communication formats:
>Contact ID
>4 + 2, 4 + 2 Express
>PAF/New PAF/PID.
- Compatible with any Monitoring Center that handles the formats described.
- Supports radio communication. Requires TRU-100 radio (not included).
- Dual split reporting capability.
- Ability to report via radio, telephone, GSM/GPRS and TCP/IP simultaneously.

Hybrid Panel with 8-144 Zones, 32 wireless zones
