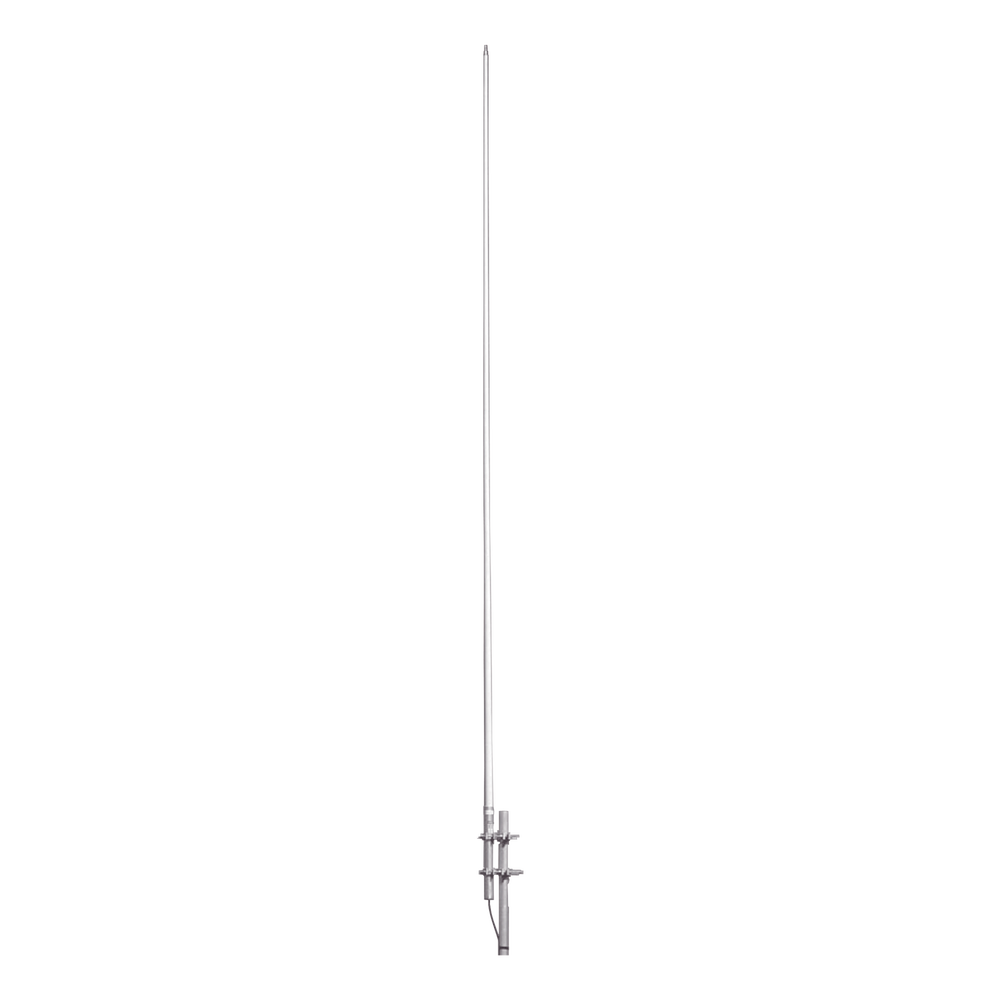

Fiberglass Collinear Base Antenna, 171-175 MHz, 6 dB, 500 Watt, N Female, Includes Two Double Clamp Mounting.

Fiberglass Collinear Base Antenna, 171-175 MHz, 6 dB, 500 Watt, N Female, Includes Two Double Clamp Mounting.

Fiberglass Collinear Base Antenna, 171-175 MHz, 6 dB, N Female.

• Frequency range: 171-175 MHz.
• Gain: 6 dB.
• Bandwidth: 4 MHz.
• Power Range: 500 Watts.
• Impedance: 50 Ohm.
• VSWR: 1.5:1 or less.
• Radiation Pattern: Omnidirectional.
• Vertical Opening: 20º
• Connector: N Female.
• Dimensions (Length x diam. at base): 6.2 m. x 7 cm.
• Weight in tower: 18.6 Kg.
• Wind resistance /12.7 mm, Ice: 241 /201 km/h.
• Mounting: Includes double clamp for tubes from 3.8 to 8.9 cm in diameter .
