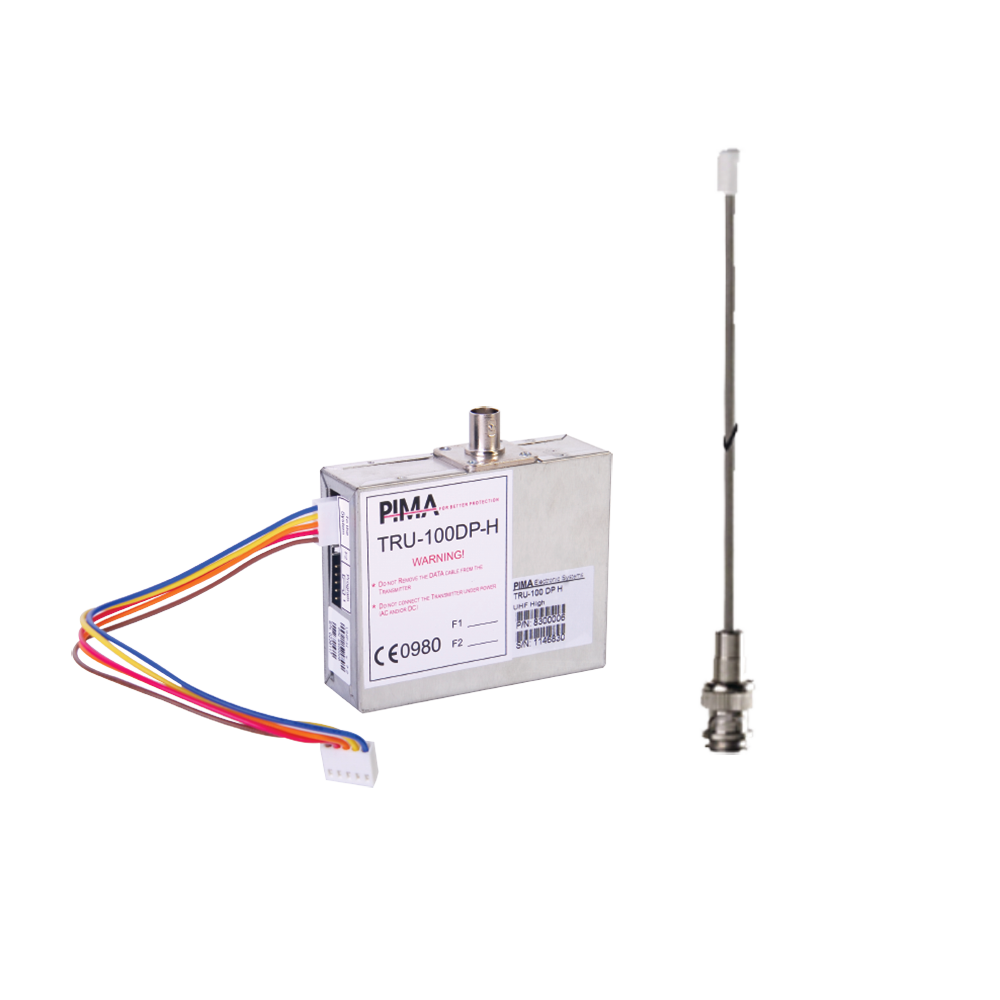

UHF Radio Communicator Kit with Antenna for Alarm Panels, up to 30 km range. 470-500 MHz frequency. Compatible with Hunter Series Alarm Panels and SAT9PID interfaces. 2.5W power.

UHF Radio Communicator Kit with Antenna for Alarm Panels, up to 30 km range. 470-500 MHz frequency. Compatible with Hunter Series Alarm Panels and SAT9PID interfaces. 2.5W power.

TRU-100 Long Range Radio Transmitters

PIMA's long-range UHF radio transmitters are synthesized devices manufactured with cutting-edge technology to provide a high level of safety and excellent performance.
Communication to the high-security monitoring center in less than 1 second.

They can be connected as an integrated transmitter to all PIMA brand alarm panels.
It can also be connected to other brands of alarm panels using the SAT9-PID interface.
It can be used as a standalone interface with the SAT-8 for Panic buttons or 24-hour sensors.


TRU-100 transmitters connect directly to alarm panels (HUNTER or HUNTERPRO), and are installed directly in the panel cabinet, without causing interference.

These devices can have a range of up to 30 km between the alarm panel and the Sentry Radio Receiver.

- Operating Frequency 470 - 500 MHz
- Standby current consumption 10 mA.
- Transmission current consumption 1.5 A.
- Power supply from 12 to 13.8 Vdc.
- Transmission power 2.5 W.
- Dimensions: 86 x 70 x 25 mm.
-BNC Female type antenna connector.
-Includes Antenna 6110004

*1 year warranty.


UHF Radio Communicator, 30 Kms Range, 2.5W power, Direct connection to PIMA panel
